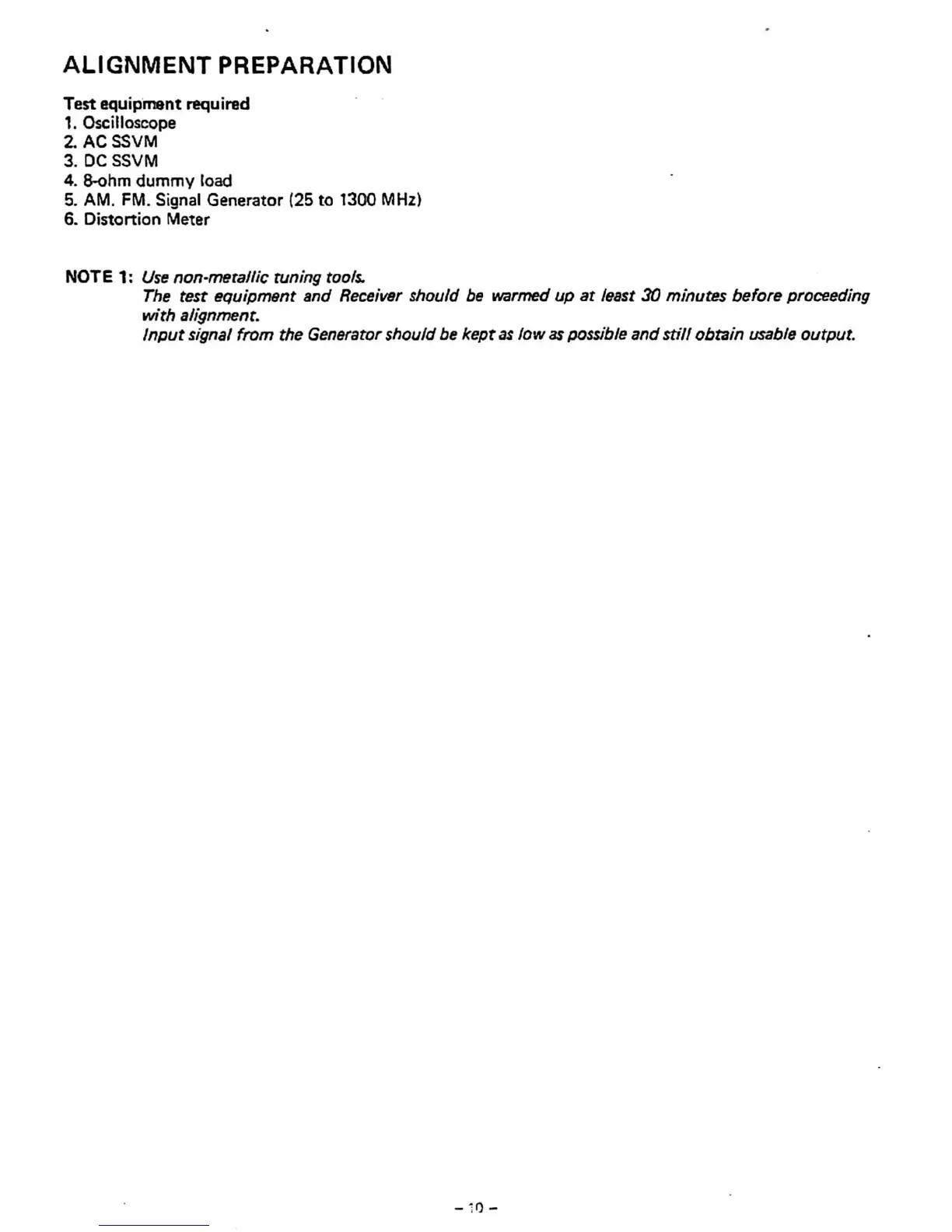

ALIGNMENT PREPARATION
Test equip"ment required
t. Oscilloscope
2 ACSSVM
3. DC SSVM
4.
B-ohm dummy load
5. AM. FM. Signal Generator (25 to 1300 MHz)
6. Distortion Meter
•
•
NOTE 1: Use non·metallic runing tools.
The test equipment and Receiver should be warmed up at least 30 minutes before proceeding
with alignment.
Input signal from the Generator should be kept as low as possible and still obtain usable output.
•
•
•
