Realistic PRO-2004 - Mechanical Parts List

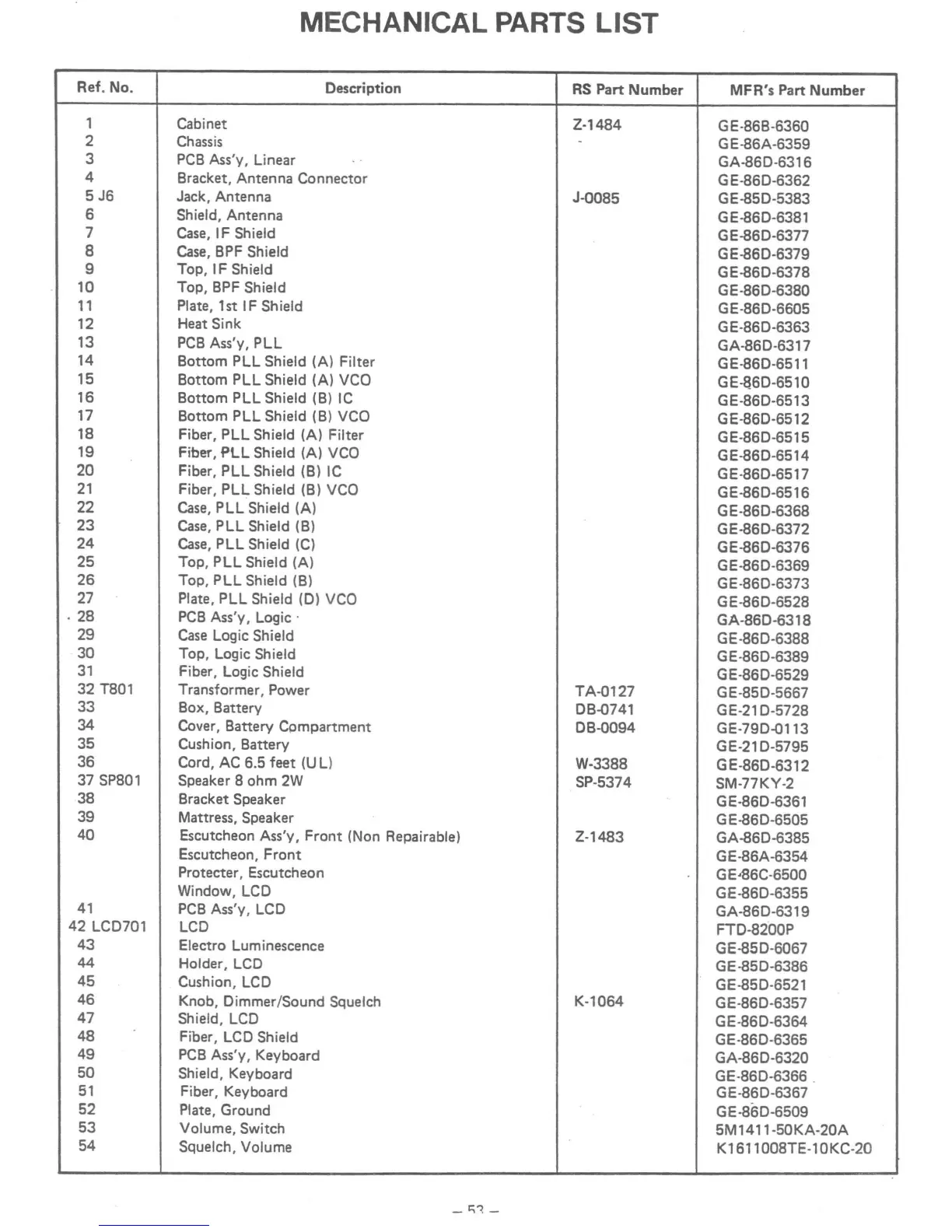

MECHANICAL PARTS LIST
Ref. No.
Description
RS Part Number
MFR's Part Number
1 Cabinet
Z-1484
GE·86B-6360
2
Chassis
.
GE-86A-6359
3
PCB Ass'y, Linear
..
GA-86D-6316
4
Bracket, Antenna Connector
GE·86D-6362
5 J6
Jack, Antenna
J-0085
GE-85D-5383
6
Shield, Antenna
GE-86D-6381
7
Case, IF Shield
GE-86D-6377
8
Case, BPF Shield
GE-860-6379
9 Top, IF Shield
GE-860-6378
10
Top,
BPF Shield
GE·860-6380
11 Plate, 1st IF Shield
GE-860·6605
12
Heat Sink
GE-860-6363
13
PCB Ass'y, PLL
GA·86D-6317
14
Bottom
PLL Shield (A) Filter
GE-860-6511
15
Bottom
PLL Shield (A) vce
GE-a60-6510
16
Bottom PLL Shield (B) IC
GE-860-6513
17
Bottom PLL Shield (B) vce
GE-860-6512
18
Fiber, PLL Shield (A) Filter
GE-860-6515
19
Fiber,
PLL Shield (A) vce
GE-860-6514
20 Fiber,
PLL Shield (B) IC
GE-860-6517
21
Fiber, PLL Shield (B) vce
GE-860-6516
22
Case, PLL Shield (A)
GE-860-6368
23
Case, PLL Shield (B)
GE-860-6372
24
Case, PLL Shield (C)
GE-860-6376
25 Top,
PLL Shield (A)
GE-860-6369
26
Top,
PLL Shield (B)
GE-86D-6373
27
Plate, PLL Shield (D) vce
GE-860-6528
·28
PCB Ass'y, Logic .
GA-860·6318
29
Case Logic Shield
GE·860-6388
30
Top, Logic Shield
GE-860-6389
31
Fiber, Logic Shield
GE-860-6529
32 T801
Transformer, Power
TA-0127
GE-850-5667
33
Box, Battery
OB-0741
GE-21 0-5728
34
Cover, Battery Compartment
OB-0094
GE-790-o113
35
Cushion, Battery
GE-21 0-5795
36
Cord, AC 6.5 feet
(U L)
W-3388
GE-860-6312
37 SP801
Speaker 8 ohm 2W
SP-5374
SM-77 KY-2
38
Bracket Speaker
GE·860-6361
39
Mattress, Speaker
GE-860-6505
40
Escutcheon Ass'y, Front (Non Repairable)
Z-1483
GA-860·6385
Escutcheon,
Front
GE-86A-6354
Proteeter, Escutcheon
GE·86C-6500
Window, LCD
GE-860-6355
41
PCB Ass'y, LCD
GA-860-6319
42 LC0701
LCD
FTO-8200P
43
Electro Luminescence
GE-85D-6067
44
Holder, LCD
GE·850-6386
45
Cushion, LCD
GE-850-6521
46
Knob, Dimmer/Sound Squelch K-1064
GE-860-6357
47
Shield, LCD
GE-860-6364
48
Fiber, LCD Shield
GE-860-6365
49
PCB Ass'y, Keyboard
GA·860-6320
50
Shield, Keyboard
GE-860-6366 .
51
Fiber, Keyboard
GE-860-6367
52
Plate, Ground
GE-860-6509
53
Volume, Switch
5M1411-50KA-20A
54
Squelch, Volume
K1611008TE-10KC-20
