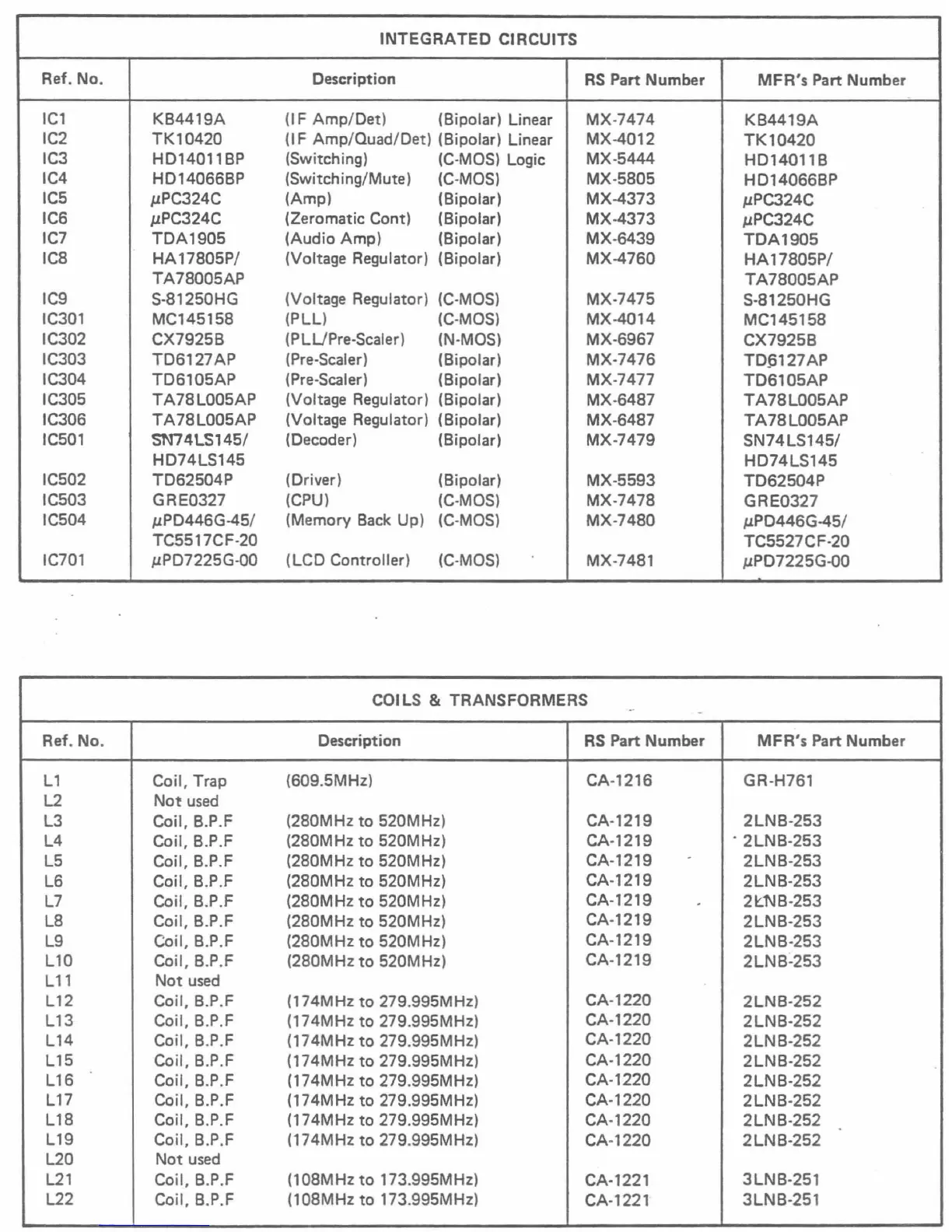

Realistic PRO-2004 - Integrated Circuits and Transistors; Coils, Transformers, and Resistors

Ref. No.
INTEGRATED CIRCUITS
Description
RS Part Number
MFR's Part Number
ICl KB4419A
(I F Amp/Det)
(Bipolar) Linear
MX-7474
KB4419A
IC2
TK10420 (I F Amp/Quad/Det) (Bipolar) Linear
MX-4012
TK 1 0420
tC3
HD1401 1
BP
(Switching)
(C·MOS) Logic
MX-5444
HD14011B
IC4
HD14066BP
(Switching/Mute) (C-MOS)
MX-5805
HD14066BP
IC5
JlPC324C
(Amp)
(Bipolar) MX-4373
JlPC324C
IC6
JlPC324C
(Zeromatic ContI
(Bipolar)
MX·4373
JlPC324C
IC7
TDA1905
(Audio Amp)
(Bipolar)
MX-6439
TDAl905
IC8 HA 17805P/
(Voltage Regulator) (Bipolar)
MX-4760
HA17805P/
TA78005AP
TA78005AP
IC9
S-81250HG
(Voltage Regulator) (C-MOS)
MX-7475
S-81250HG
IC301 MC145158
(PLL)
(C-MOS)
MX-4014
MC145158
IC302
CX7925B (PLUPre·Scaler)
(N-MOS)
MX-6967
CX7925B
IC303
TD6127AP
(Pre-Scaler) (Bipolar)
MX-7476
TDp127AP
IC304
TD6105AP
(Pre-Scaler)
(Bipolar) MX-7477
TD6105AP
IC305 TA78 L005AP
(Voltage Regulator) (Bipolar)
MX-6487
TA78 L005AP
IC306 TA78 L005AP
(Voltage Regulator) (Bipolar)
MX-6487
TA78 L005AP
IC501
SN74LS145/
(Decoder) (Bipolar)
MX-7479
SN74LS145/
HD74LS145
HD74LS145
IC502 TD62504P
(Driver)
(Bipolar)
MX-5593
TD62504P
IC503
GRE0327
(CPU)
(C-MOS)
MX-7478
GRE0327
IC504
JlPD446G-45/
(Memory Back Up)
(C-MOS)
MX-7480
JlPD446G-45/
TC5517CF-20
TC5527CF-20
IC701
JlPD7225G-OO
(LCD Controller) (C-MOS)
•
MX-7481
JlPD7225G-OO
•
COl LS & TRANSFORMERS
."
-
Ref. No. Description RS Part Number MFR's Part Number
L1 Coil, Trap
(609.5MHz) CA-1216
GR-H761
12 Not used
L3 Coil, B.P.F
(280MHz
to 520MHz) CA-1219 2LNB-253
L4
Coil, B.P.F
(280MHz
to 520MHz) CA-1219
.
2LNB-253
L5 Coil, B.P.F
(280MHz
to 520MHz) CA-1219
•
2LNB-253
L6
Coil, B.P.F
(280MHz
to 520MHz)
CA-1219
2LNB-253
L7 Coil, B.P.F (280MHz to 520MHz)
CA-1219
• 2tNB·253
L8 Coil, B.P.F
(280MHz
to 520MHz)
CA·1219
2LNB-253
L9 Coil, B.P.F (280MHz to 520MHz)
CA-1219
2LNB-253
L10 Coil, B.P.F (280MHz to 520MHz)
CA-1219
2LNB-253
L11 Not used
L12 Coil, B.P.F
(174MHz
to 279.995MHz)
CA-1220
2LNB-252
L13
Coil, B.P.F
(174MHz to 279.995MHz)
CA-1220
2LNB-252
L14 Coil, B.P.F
(174MHz
to 279.995MHz)
CA-1220
2LNB-252
L15 Coil, B.P.F (174MHz to 279.995MHz)
CA·1220
2LNB-252
•
•
CA-1220
L16 Coil,
B.P. F (174MHz to 279.995MHz)
2LNB-252
L17
Coil, B.P.F (174MHz
to 279.995MHz)
CA-1220
2LNB-252
L18 Coil, B.P.F (174MHz to 279.995MHz) CA-1220
2LNB-252
•
L19 Coil, B.P.F (174MHz to 279.995MHz)
CA-1220
2LNB-252
L20
Not used
L21
Coil, B.P.F
(108MHz
to 173.995MHz)
CA-1221
3LNB-251
122 Coil, B.P. F (108MHz to 173.995MHz)
CA-1221
3LNB-251
