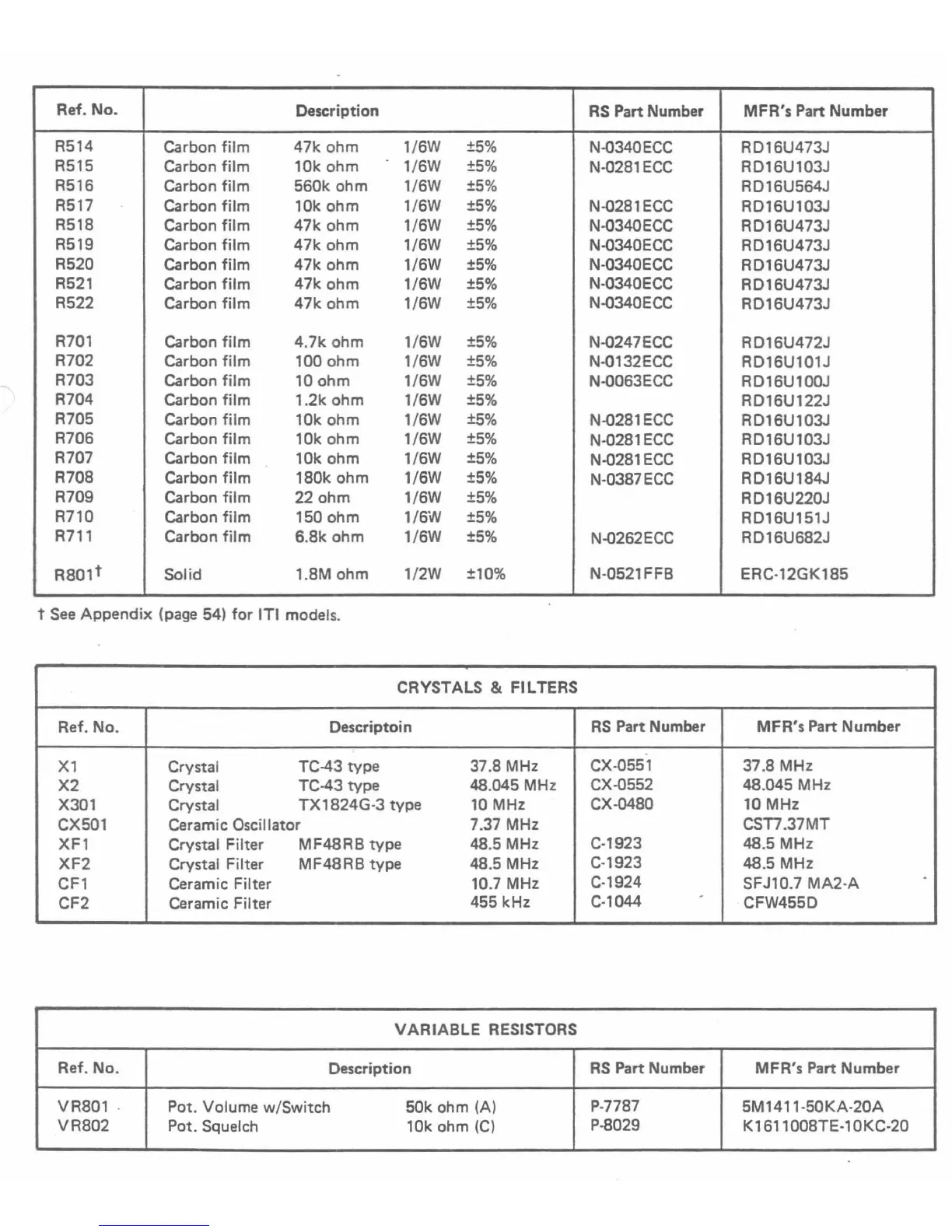

Realistic PRO-2004 - Crystals, Filters, and Variable Resistors

-
Ref. No.
Description
RS Part Number
MFR's Part Number
R514
Carbon
film 47k ohm
1/6W
±5%
N-Q340ECC RD16U473J
R515 Carbon
film 10k ohm
•
1/6W
±5%
N-0281ECC
RD16Ul03J
R516
Carbon
film 560k ohm
1/6W
±5%
RD16U564J
R517
•
Carbon film 10k ohm 1/6W
±5%
N-Q281ECC
RD16Ul03J
R518
Carbon
film 47k ohm
1/6W
±5%
N·0340ECC RD16U473J
R519 Carbon
film
47k ohm 1/6W
±5%
N-0340ECC RD16U473J
R520
Carbon
film 47k ohm
1/6W ±5% N·0340ECC
RD16U473J
R521
Carbon
film
47k ohm
1/6W
±5% N·0340ECC
RD16U473J
R522
Carbon
film 47k ohm
1/6W
±5% N-Q340ECC
RD16U473J
R701
Carbon
film 4.7k ohm
1/6W
±5%
N-Q247ECC
RD16U472J
R702
Carbon
film 100 ohm
1/6W
±5%
N-0132ECC
RD16Ul01J
R703
Carbon
film
10 ohm
1/6W
±5% N-Q063ECC
RD16Ul00J
R704
Carbon
film
1.2k ohm 1/6W
±5%
RD16U122J
R705
Carbon
film
10k ohm 1/6W ±5% N-Q281ECC
RD16Ul03J
R706
Carbon
film 10k ohm
1/6W
±5%
N-Q281ECC
RD16Ul03J
R707
Carbon
film
10k ohm
1/6W
±5%
N-Q281ECC
RD16Ul03J
R708
Carbon
film 180k ohm
1/6W
±5%
N·0387ECC
RD16U184J
R709
Carbon
film 22 ohm
1/6W
±5%
RD16U220J
R710
Carbon
film
150 ohm 1/6W ±5%
RD16U151J
R711
Carbon
film 6.8k ohm
1/6W
±5%
N-Q262ECC
RD16U682J
R801
t
Solid
1.8M ohm 1/2W
±10% N-0521FFB
ERC·12GK185
t See Appendix (page 541 for ITI models.
.
CRYSTALS & FI LTERS
Ref.
No. Descriptoin
RS Part Number
MFR's Part Number
.
Xl
Crystal
TC-43
type 37.8 MHz
CX-0551 37.8 MHz
X2 Crystal
TC-43
type 48.045 MHz
CX·0552 48.045 MHz
X301 Crystal
TX1824G-3 type 10 MHz
CX·0480 10 MHz
CX501 Ceramic Oscillator
7.37 MHz
CST7.37MT
XF1
Crystal Filter
MF48RB type 48.5 MHz
C-1923
48.5 MHz
XF2
Crystal Filter
MF48RB type 48.5 MHz
C·1923
48.5
MHz
CFl
Ceramic Filter
10.7 MHz
C·1924
SFJ10.7
MA2·A
•
CF2 Ceramic Filter
455 kHz
C·l044
-
CFW455D
VARIABLE RESISTORS
Ref.
No.
Description
RS Part Number MFR's Part Number
VR801 .
Pot. Volume
w/Switch 50k ohm (AI
P·7787
5M1411-50KA·20A
VR802
Pot. Squelch 10k ohm (CI
P-8029
K1611008TE-l0KC·20
