5.4.1 Connecting an M UV254 Analyzer
1. Connect ¼” OD flex tubing from a pressurized source to
the IN port on the Real Clean system.
2. Connect ¼” tubing from the OUT port on the Real Clean
to the IN port on the side of the analyzer.
3. Connect ¼” tubing to the OUT port on the analyzer and
divert to drain.
IMPORTANT: The test water must be allowed to flow unrestricted to
drain so that no significant pressure will occur inside the flow cell.

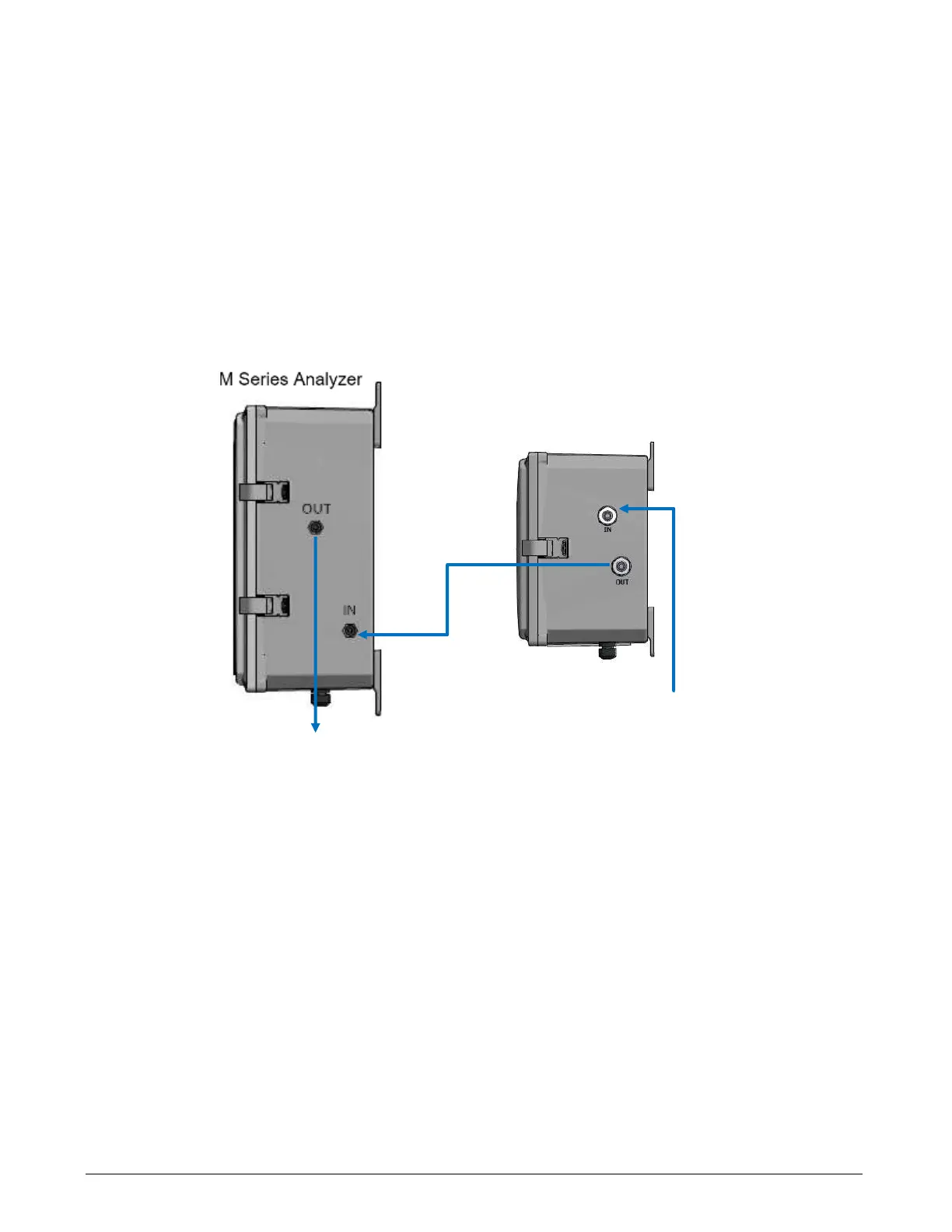

Figure 5.6: M UV254 Analyzer and Real Clean plumbing connections
Water In
Water Out
(To Drain)
Real Clean System
