Real Clean System I v 2.1
Real Tech Inc. 17
11 Cabinet Dimensions and Clearance

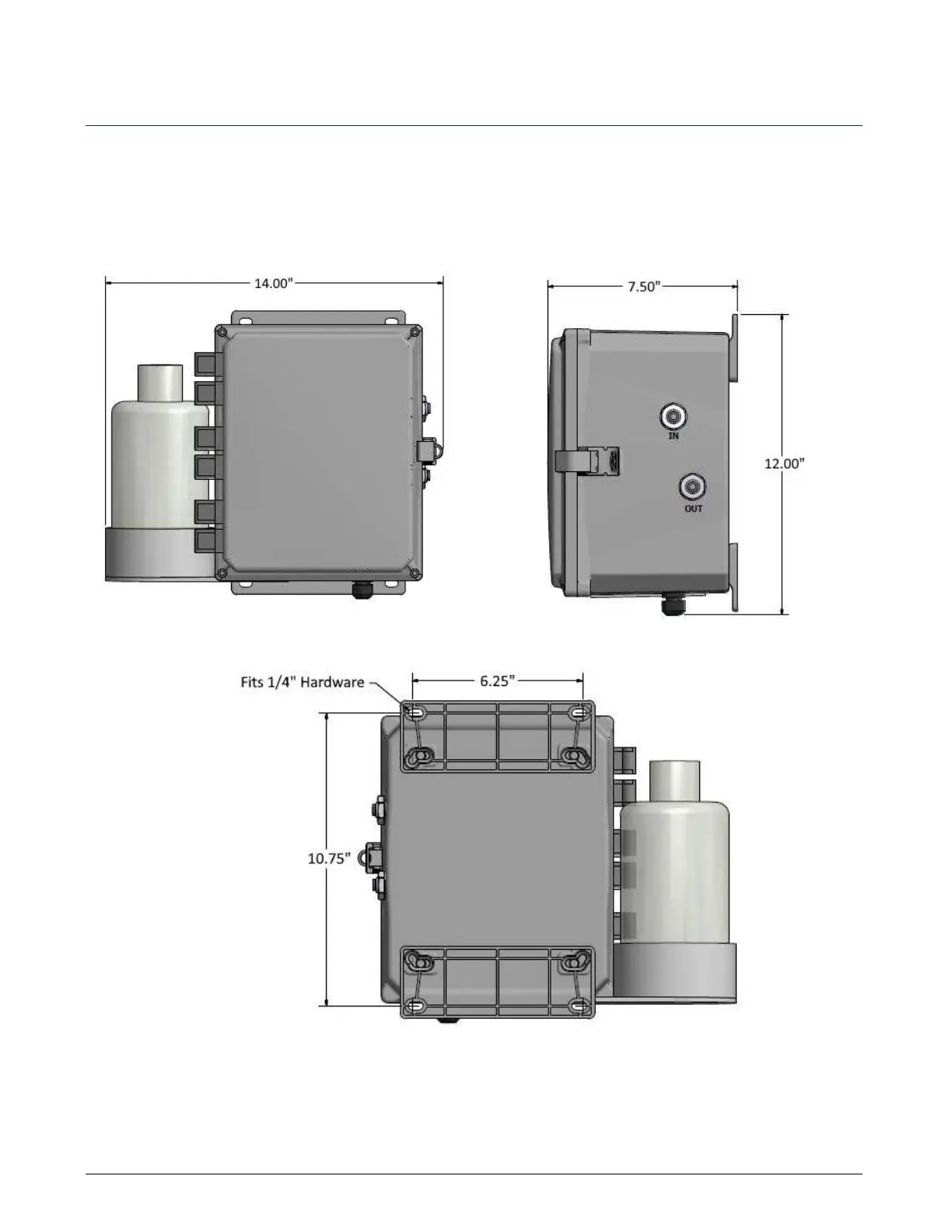

The front, side, and back views of the cabinet are shown below to the nearest 1/8 inch. The back view gives the
dimensions relevant for spacing of screws to mount the cabinet. Allow a clearance of 6 inches around the
cabinet for unit connection.
