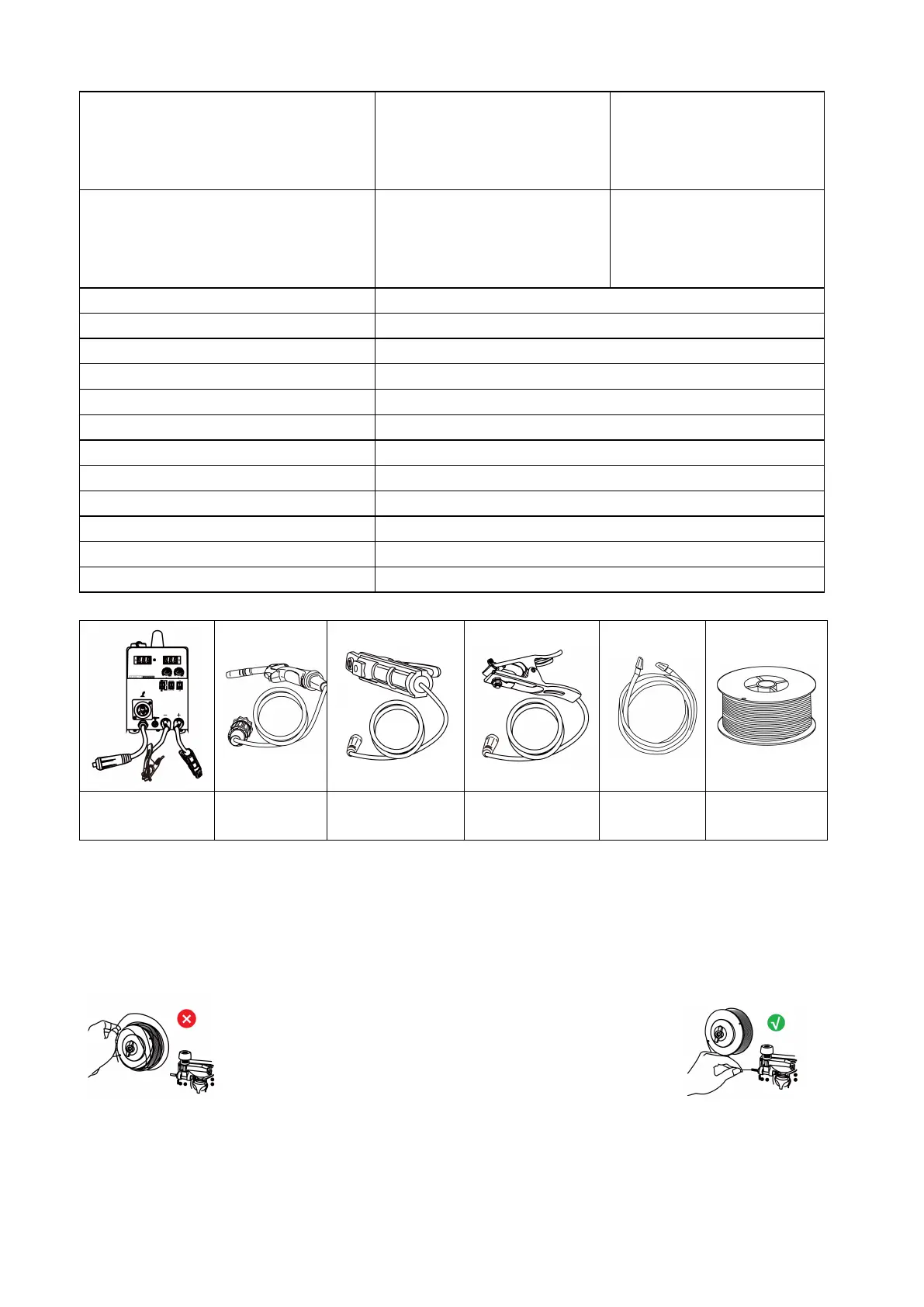

1.3 Accessories list
RBM02100D*1
Welding
Torch *1
Electrode
Holder Set *1
Work Clamp*1 Gas hose*1
Flux Cored
Welding Wire *1
2 Installation Instructions
2.1 Welding Wire Installation Steps:
To install a fresh reel of welding wire into the wire feeder. The hole position of the wire plate should be aligned with the
fixed plug on the shaft.
The wire reel should be rotated so that the wire feeds from the bottom of the reel into the wire feeder. Following the
diagrams below as a guide, place the reel over the spindle in the machine and fasten it into place with the washers,
Output current adjustment (A)
110V
40-140(MIG)
30-100 (STICK)
30-100 (TIG
220V
40-200 (MIG)
30-150 (STICK)
30-150 (TIG)
Output voltage (V)
110V
16.0-21.0 (MIG)
21.2-24.0(STICK)
11.2-14.0 (TIG)
220V
16.0-24.0 (MIG)
21.2-26(STICK)
11.2-16 (TIG)
No load voltage (V)
50±5
Duty cycle (%) 60
Power factor 0.7
Efficiency (%) 85
Wire feeder type All-in-one
Wire feed speed(m / min) 2-15
Wire diameter (mm) 0.8/1.0
Insulation grade F
Enclosure protection class IP21
Suitable plate thickness (mm) 0.5-5
Net Weight (kg) 14
Overall dimension (mm) 470
×
320
×
376
