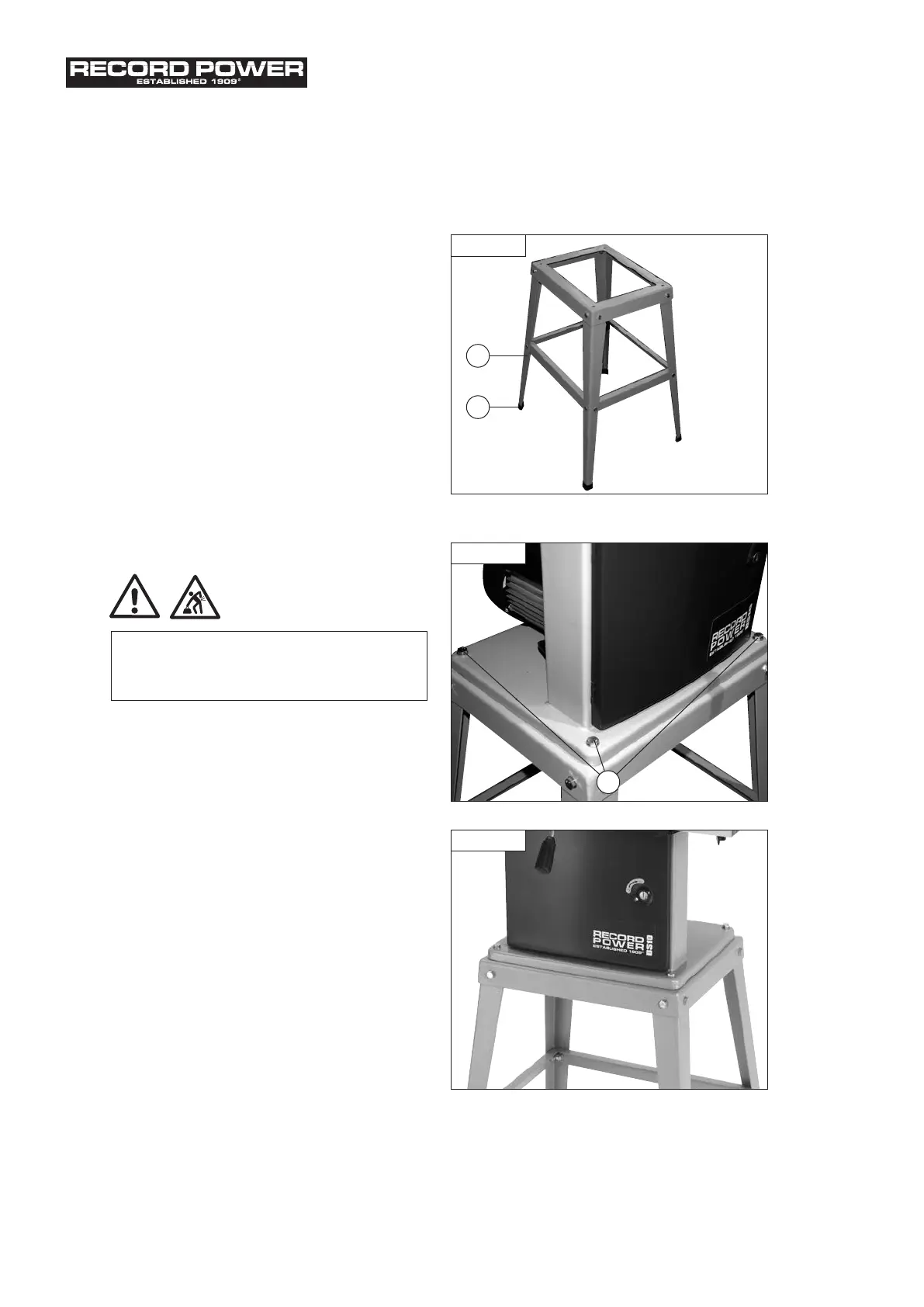

7. Assembly of the Optional Leg Stand - Cont.
4. Slide the rubber feet (E) onto the bottom of the bandsaw
legs (D) and position the frame upright. Once the frame
is upright all fixings should be fully tightened, see
Fig 7.4.
Fitting the Bandsaw to the Stand
1. Lift the bandsaw over the stand and place the long
fixing bolts (F) through the four location holes in the
bandsaw base, Fig 7.5.
2. Secure the bandsaw to the stand with the remaining
washers and nuts, Fig 7.6.
F
CAUTION! The machine is heavy. Additional help or
a suitable lifting device or support will be required for
lifting the machine onto the stand.
i
Kg
i
Kg
D
E
Fig. 7.4
Fig. 7.5
Fig. 7.6
