7. Assembly of the Optional Leg Stand
A
B
C
D
E
F
G
H

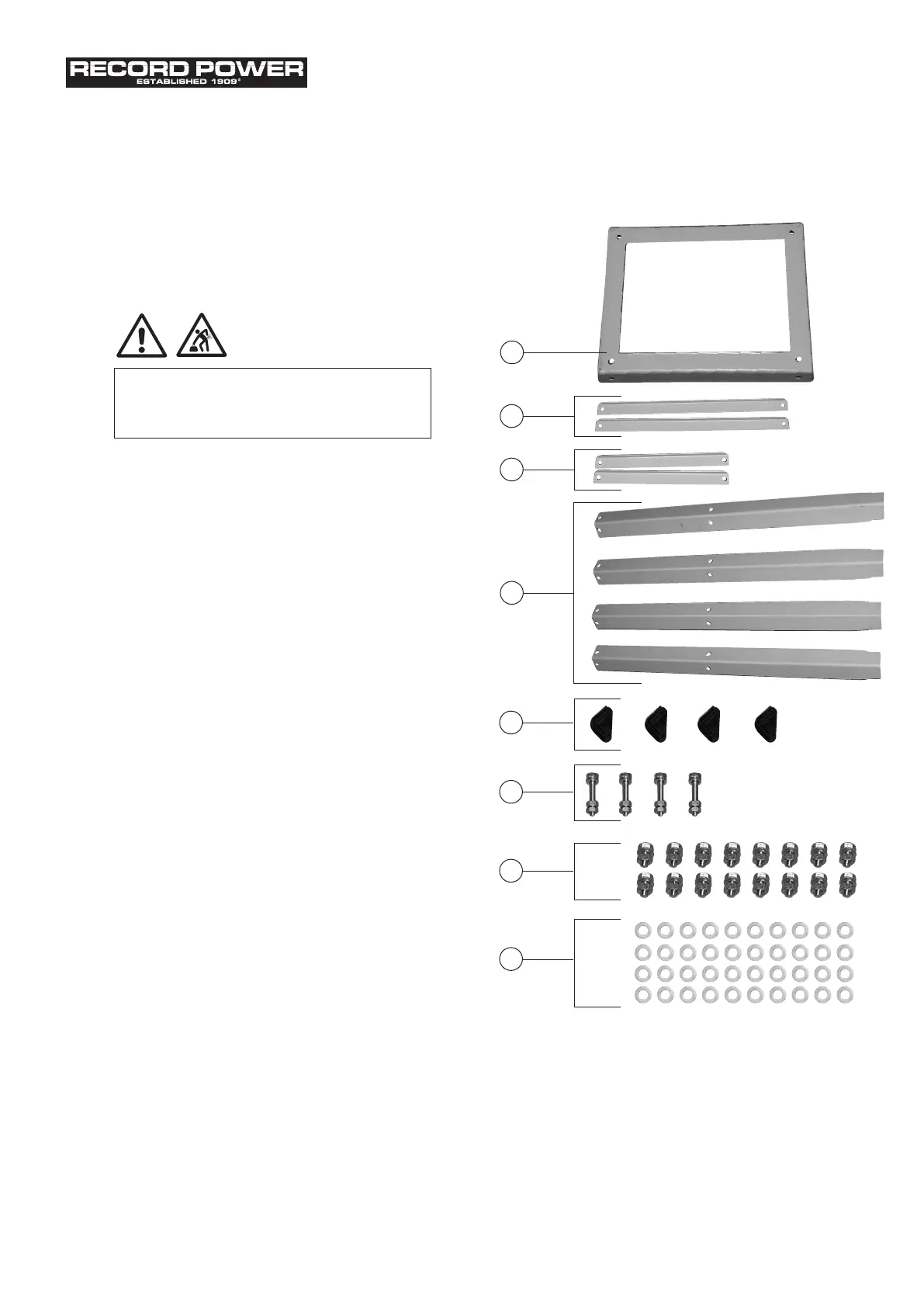

The stand comes as a self assembly unit:
A Upper frame
B Long mid brace supports x 2
C Short mid brace supports x 2
D Legs x 4
E Rubber feet x 4
F
Long fixing bolts and nuts x 4
G
Short fixing bolts, nuts and washers x 16
H Washers x 40
CAUTION! The machine is heavy. Additional help or
a suitable lifting device or support will be required for
lifting the machine onto the stand.
Tools Required For Assembly & Maintenance
3 mm hex wrench (included with the machine)
5 mm hex wrench (not supplied)
10 - 13 mm combination wrench (included with the machine)
