Record Power BS250 - Parts Diagrams; Stand & Wheel Kit Diagram

11. Parts Diagrams

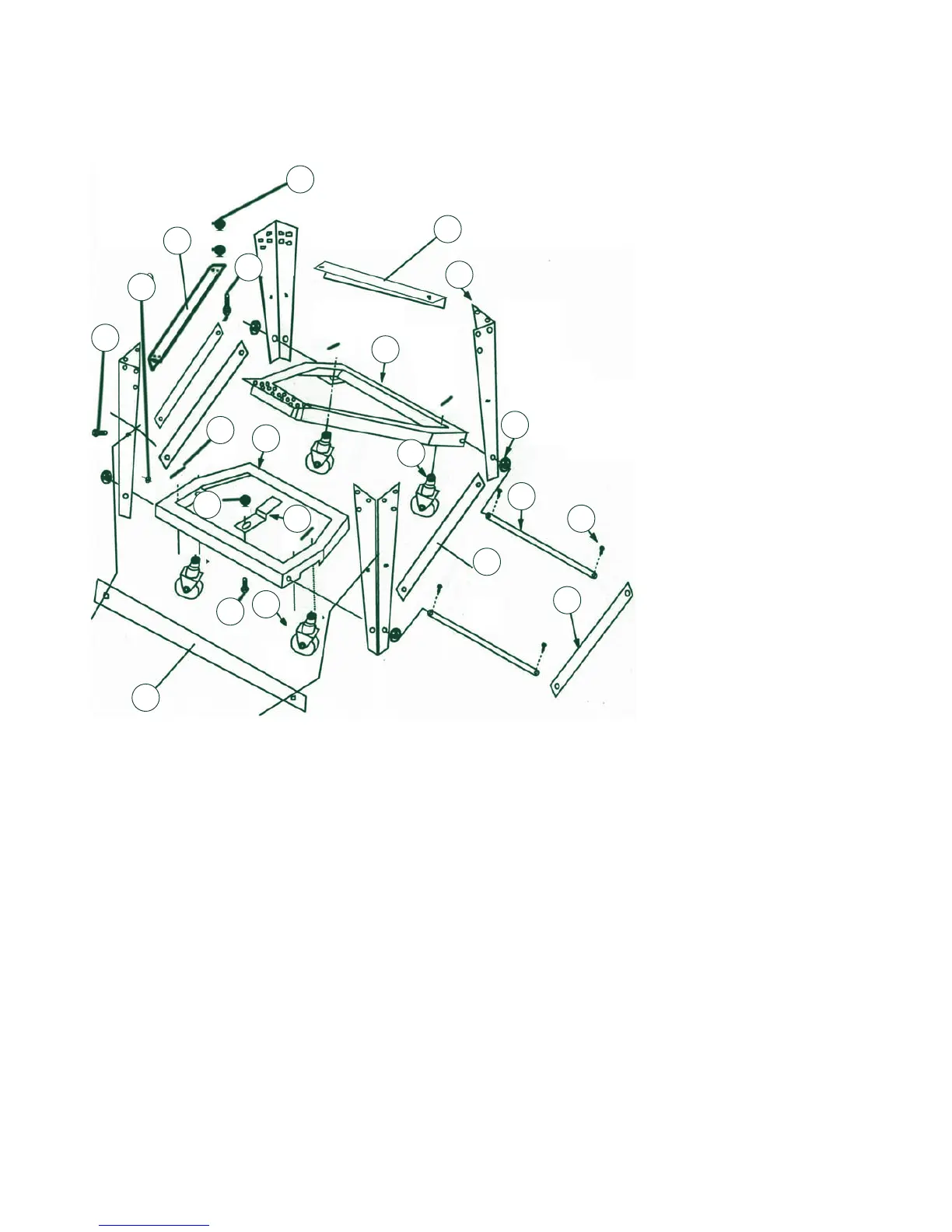

Stand & Wheel Kit
Ref No. Description
1 Pedal
2 Hex screw M6x35
3 Nut M6
4 Long top brace support
5 Washer 10mm
6 Axle
7 Fixing pins
8 Short stem wheels
9 Pan Hd screw M4x30
10 Long stem wheels
11 Release pedal
12 Legs
13 Self nut M4
14 Operating frame
15 Brace support bar
16 Short top brace supp
ort
17 Short mid brace support
18 Long mid brace support
19 Hex screw M8x16
20 Nut M8
1
2
3
4
5
6
7
9
8
10
11
12
13
14
15
16
17
18
19
20
7
