9. Operation & Bandsawing Practice - cont.
9.8 Custom Jigs & Work Support
A bandsaw is one of the most versatile machines in the
workshop and with careful lateral thinking many problems
encountered on a job can be overcome. By making and using
custom jigs repetitive and accurate work can easily be

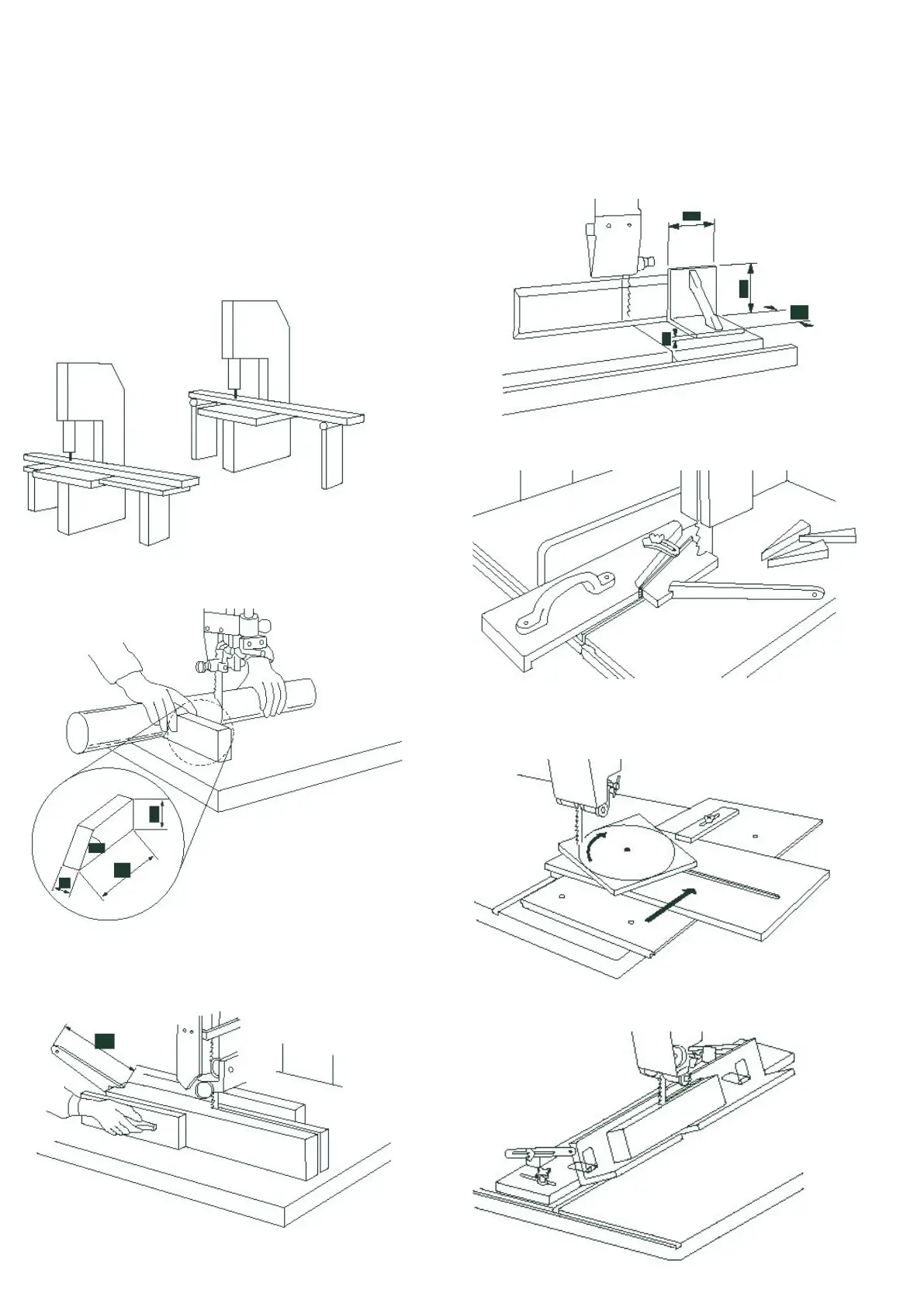

achieved, Fig 9.4 - Fig 9.10 are some examples of typical
jigs and supports used on a bandsaw.
Fig.9.5
Always support round pieces with a wedge
Fig.9.6
Use a side pressure pad for accurate cutting of
taller material
Fig.9.4
Supporting large workpieces with roller stands or
take off tables
Fig.9.7
Chamfered pieces can be cut squarely using an
additional support jig on the opposite side of the
work piece to the fence.
Fig.9.8
Jig for accurate repetitive wedges
Fig.9.9
By mounting a registration pin on a slide repetitive
circles can easily be achieved
Fig.9.10
Angle cutting jig for accurate repetitive compound
angles
