Record Power BS300 - Initial Assembly; Table Assembly; Fence Assembly

3. Initial Assembly
3.1 Unpacking and components included
The machine is supplied partly assembled. Prior to use, the
following items have to be fitted: bandsaw table, rip fence
guide, crank handle and guide post handwheel and the wheel
kit.

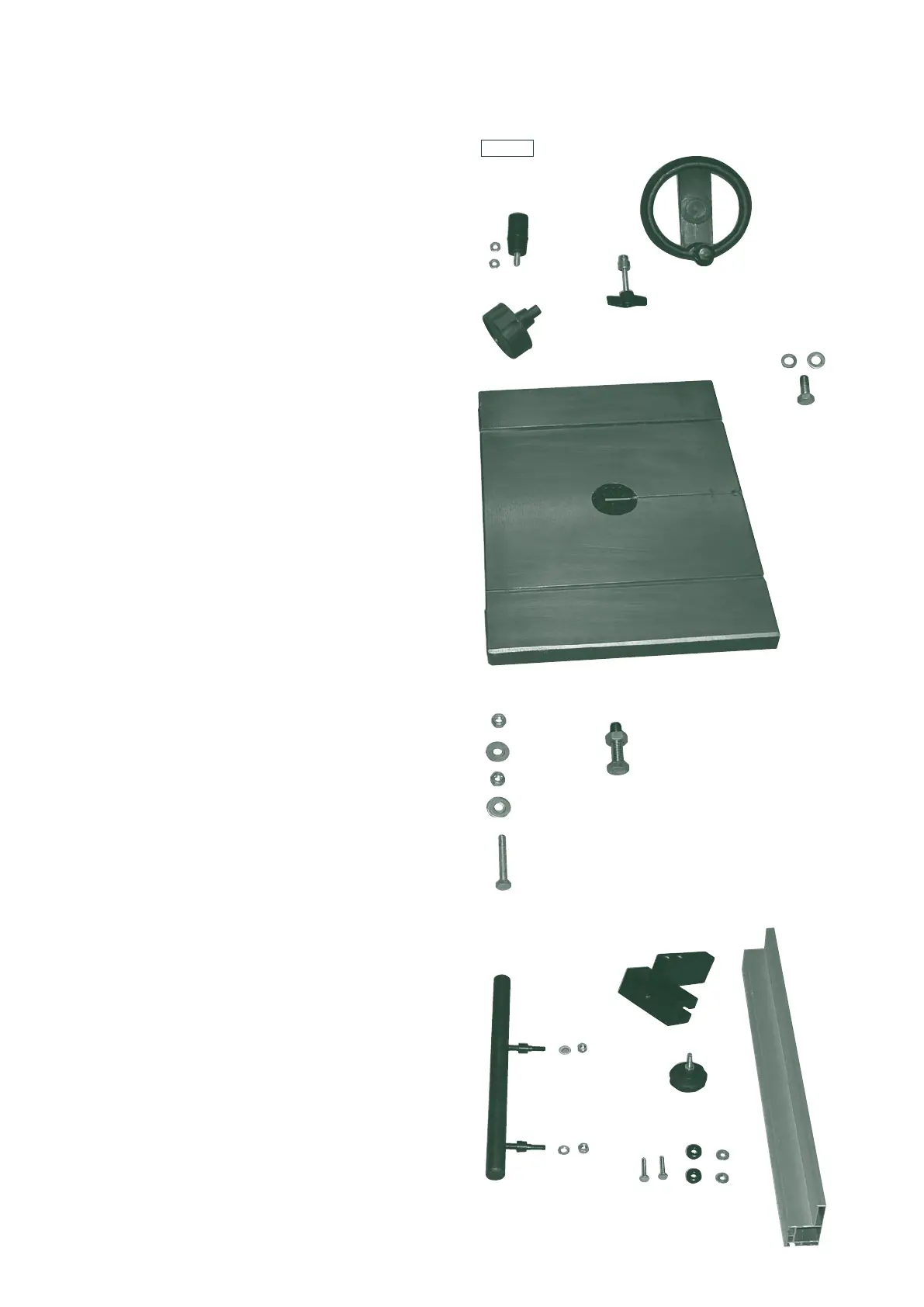

When unpacking the machine the following components are
included for the initial assembly Fig.3.1:
Fig.3.1
1
2
3
5
6
7 8
1. 2 x Nuts and 1 x small crank handle
2. 1 x Table stop safety bolt
3. 1 x Rise & fall hand wheel
4. 1 x Blade tensioning knob
Table Assembly
5. 1 x Table
6. 4 x Table fixing bolts and washers (each)
7. 4 x Long fixing bolts, nuts and washers (each)
8. 1 x Nut and bolt
Fence Assembly
9. 1 x Fence bar
10. 2 x Fence fixing bar nuts and washers (as pictured)
11. 1 x Fence carrier
12. 1 x Fence
13. 1 x Fence lock knob
14. 2 x Nuts, bolts and washers (as pictured)
9
11
12
10
13
14
4
