3. Initial Assembly - cont.
Fig.3.4
TABLE FIXING BOLT & WASHER
TRUNNION
Fig.3.5
TRUNNION
Fig.3.6
FENCE BAR
TABLE FIXING BOLT & WASHER
8 9

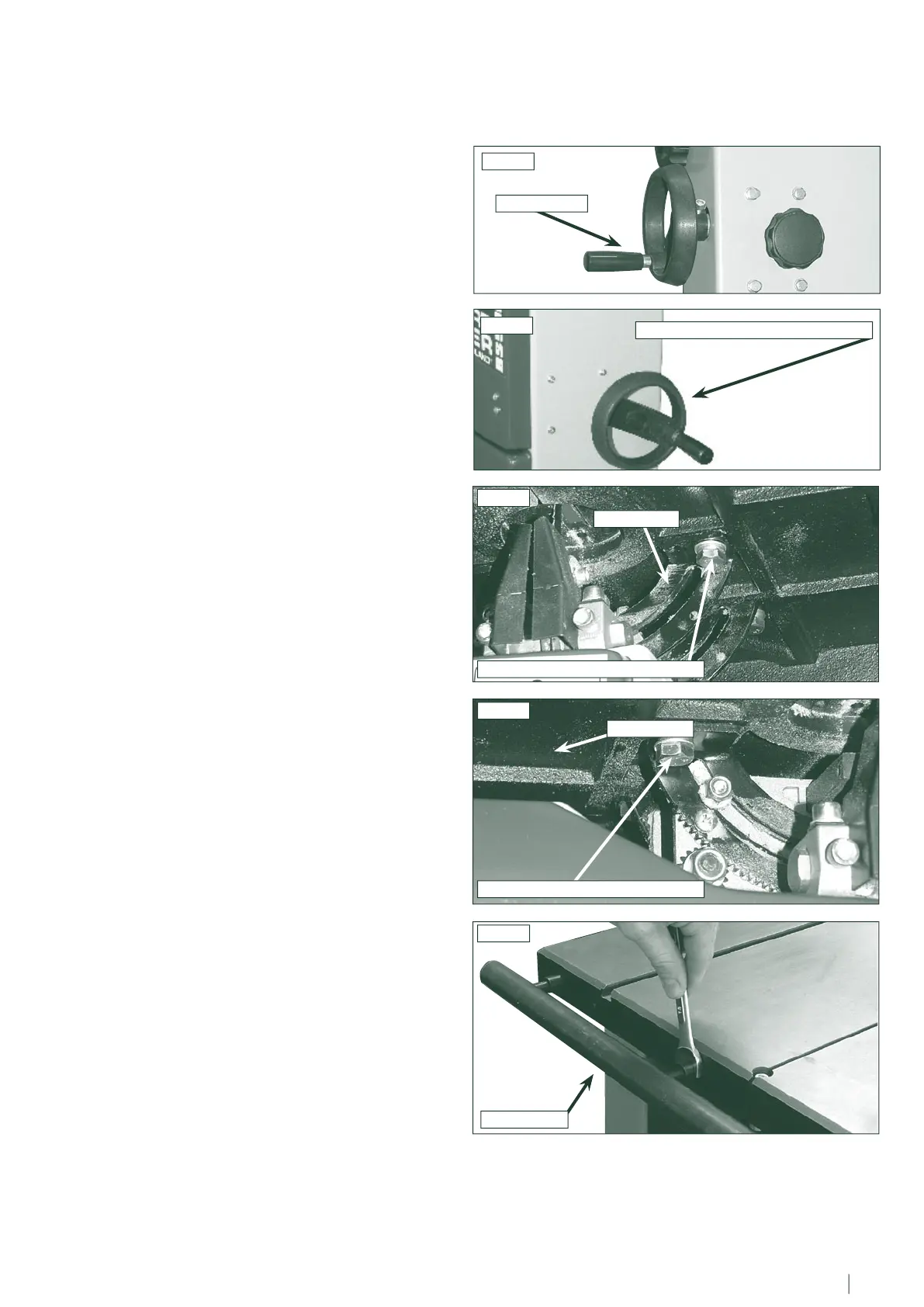

3.2 Rise & fall hand wheel
Attach large crank handle to rise and fall mechanism with 14mm
spanner (not supplied)
(See Fig.3.2).
3.3 Belt tension handle
Attach small crank handle to belt tension and speed mechanism
with 10mm spanner
(not supplied)
(See Fig.3.3).
3.4 Fitting the table
Tools Required: - 13mm spanner (not supplied)
With the help of another person, lift the working table onto the
trunnion. Mount the working table on the trunnion using the
supplied 4 x table fixing bolts and 4 x washers
(See Fig.3.4
front view & 3.5 rear view).
3.5 Fitting the fence bar
Locate fence bar onto the table fixing with the two fence fixing
bar nuts
(See Fig.3.6). Do not fully tighten yet as they may need
to be adjusted later in the setup process.
Fig.3.3
BELT TENSION & SPEED CHANGE
Fig.3.2
RISE & FALL
