Record Power BS300 - Assembling the Mitre Fence

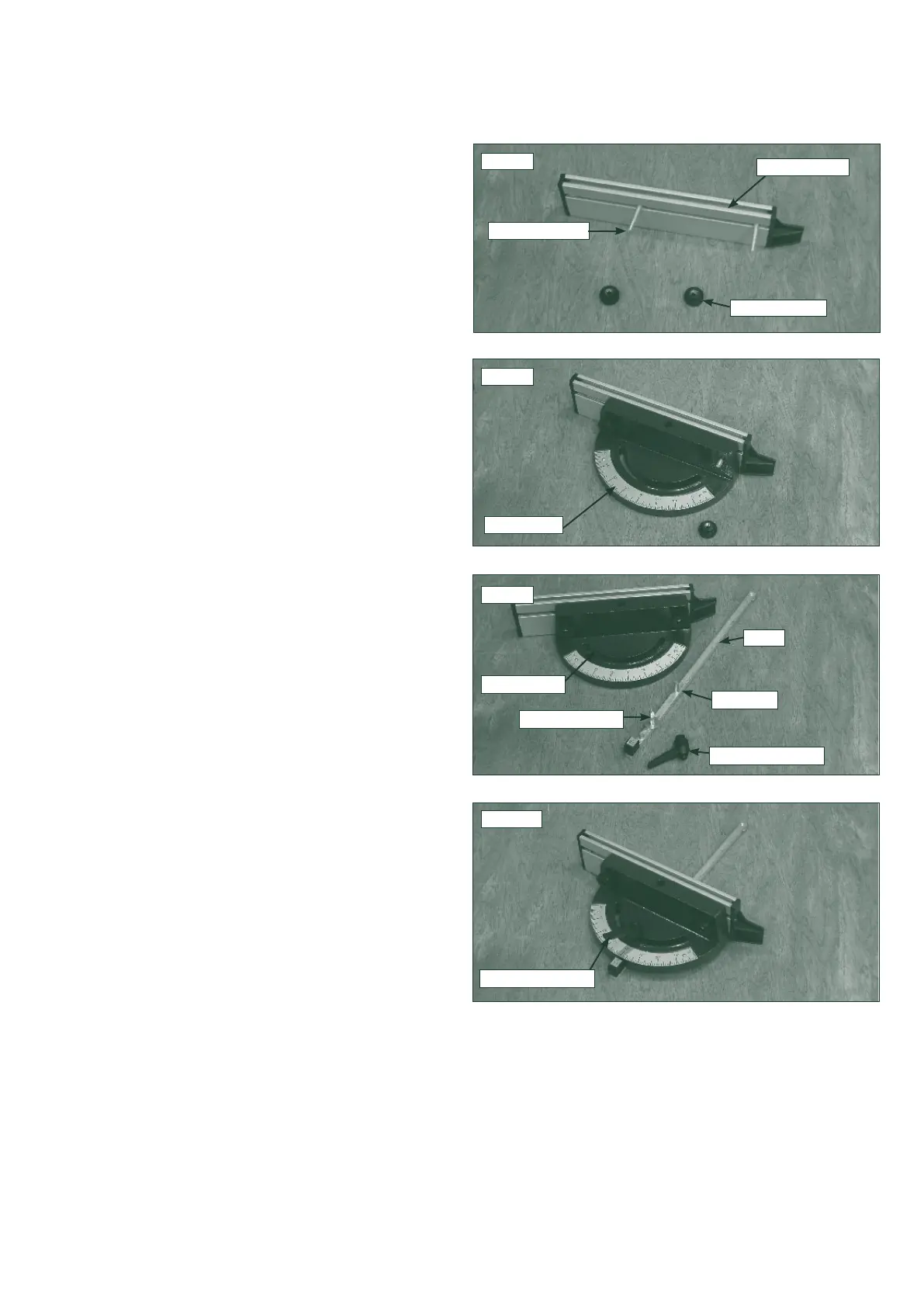

3.6 Assembling the mitre fence
1. Unscrew the locking nuts from the mitre fence Fig 3.7.
2. Place the protractor with the flat edge running parallel to the
mitre fence.
3. Position it in such a way that the fence screws slot into the
holes on the protractor Fig 3.8.
4. Replace and re-tighten the locking nuts.
5. Position the slide underneath the protractor so that the
threaded bar sits in the angle slide and the pivot pin inserts into
the pivot hole Fig 3.9 and Fig 3.10.
6. Tighten the ratchet handle onto the threaded bar Fig 3.10.
3. Initial Assembly - cont.
Fig.3.7
Fig.3.8
Fig.3.9
Fig.3.10
Mitre Fence
Fence Screws
Locking Nuts
Protractor
Slide
Angle Slide
Pivot Pin
Threaded Bar
Ratchet Handle
Ratchet Handle
