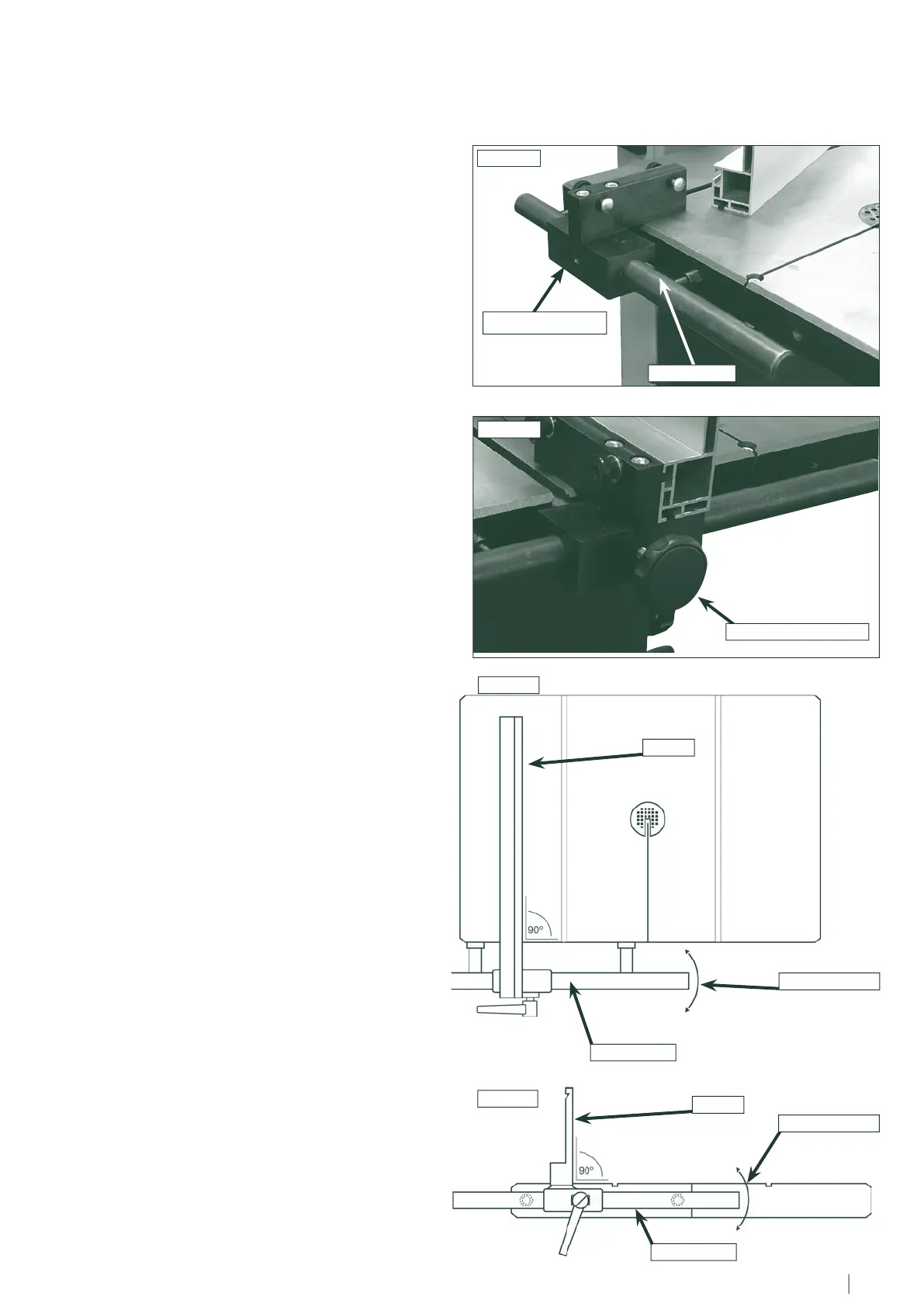

3.7 Fitting the fence assembly
Locate fence assembly onto the fence bar. Position the fence
on to the table and lock off by screwing on and tightening the
fence lock knob. (See Fig.3.12).
3.8 Fence alignment 1
Align the fence assembly in or out until parallel with the side
of the blade (See Fig.3.13) by adjusting the fence bar nuts
accordingly.
3.9 Fence alignment 2
Check that the fence is 90º to the table using a suitable square.
If no adjustment is needed fully tighten the fence bar nuts. If
adjustment is required this is achieved by raising or lowering
either side of the fence rail until the fence itself is 90º to the
table, (See Fig.3.14). Once set at 90º fully tighten the fence bar
nuts.
Fig.3.11
FENCE BAR
Fig.3.12
3. Initial Assembly
FENCE LOCK KNOB
Fig.3.14
FENCE
FENCE BAR
ADJUSTMENT
Fig.3.13
FENCE
FENCE BAR
ADJUSTMENT
10 11
FENCE CARRIER
