2. Machine Specification
1. Getting To Know Your Bandsaw

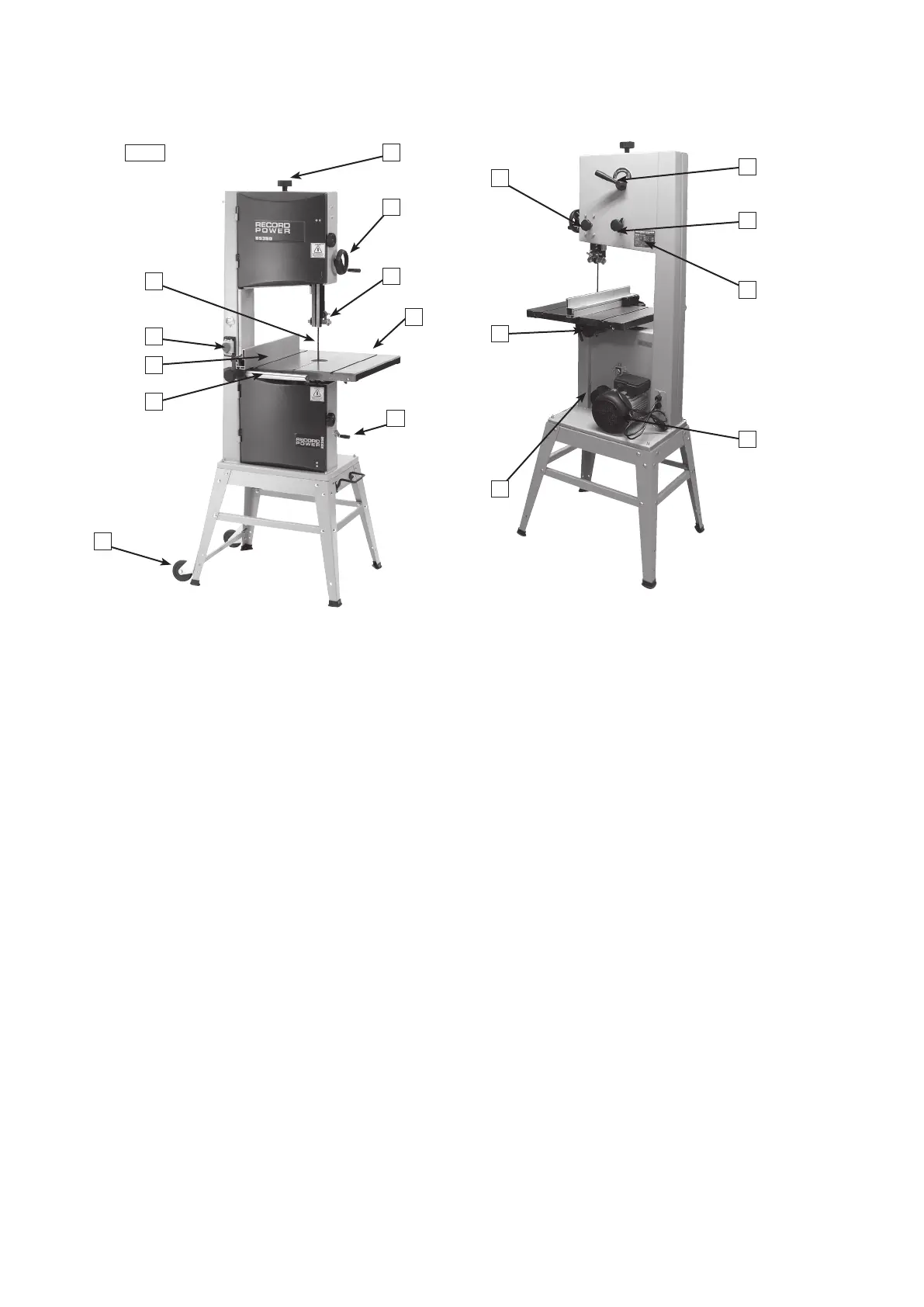

Fig.1
A Blade Tensioning Knob
B Rise & Fall Hand Wheel
C Blade
D Upper Blade Guides
E Table
F Rip Fence
G Rip Fence Rail
H Belt Tension & Speed Change Handle
I Wheel Kit
J Blade Tension Release Cam Handle
K Rise & Fall Lock Knob
L Blade Tracking Knob
M Table Tilting Knob
N Motor Rating Plate
O 100 mm Dust Extraction Port
P Motor
Q On/Off Switch and Emergency Stop
Blade length: 2630 mm (103
1
/2”)
Blade width: 6 - 19 mm (
1
/
4
” -
3
/
4
”)
Max depth of cut: 230 mm
Throat depth: 340 mm
Table size: 545 x 400 mm
Max width blade to rip fence: 280 mm
Table height: 998 mm
Extraction port: 100 mm
Motor: 230 V / 50 Hz / 1
1
/2 hp / 1120 W
Full load current: 6.7 A
Weight: 100 kg
Footprint: 610 x 440 mm
Dimensions: Height 1760 mm x width 770 mm x depth 690 mm
Sound power level: 82 dB (no load), 100 dB (load)
Sound pressure level: 75 dB (no load), 90 dB (load)
