Record Power BS350 - Machine Assembly; Table, Fence, and Mitre Gauge Component Assembly

13
4. Machine Assembly
4.1 Unpacking and Components Included
The machine is supplied partly assembled. Prior to use, further assembly
is required.

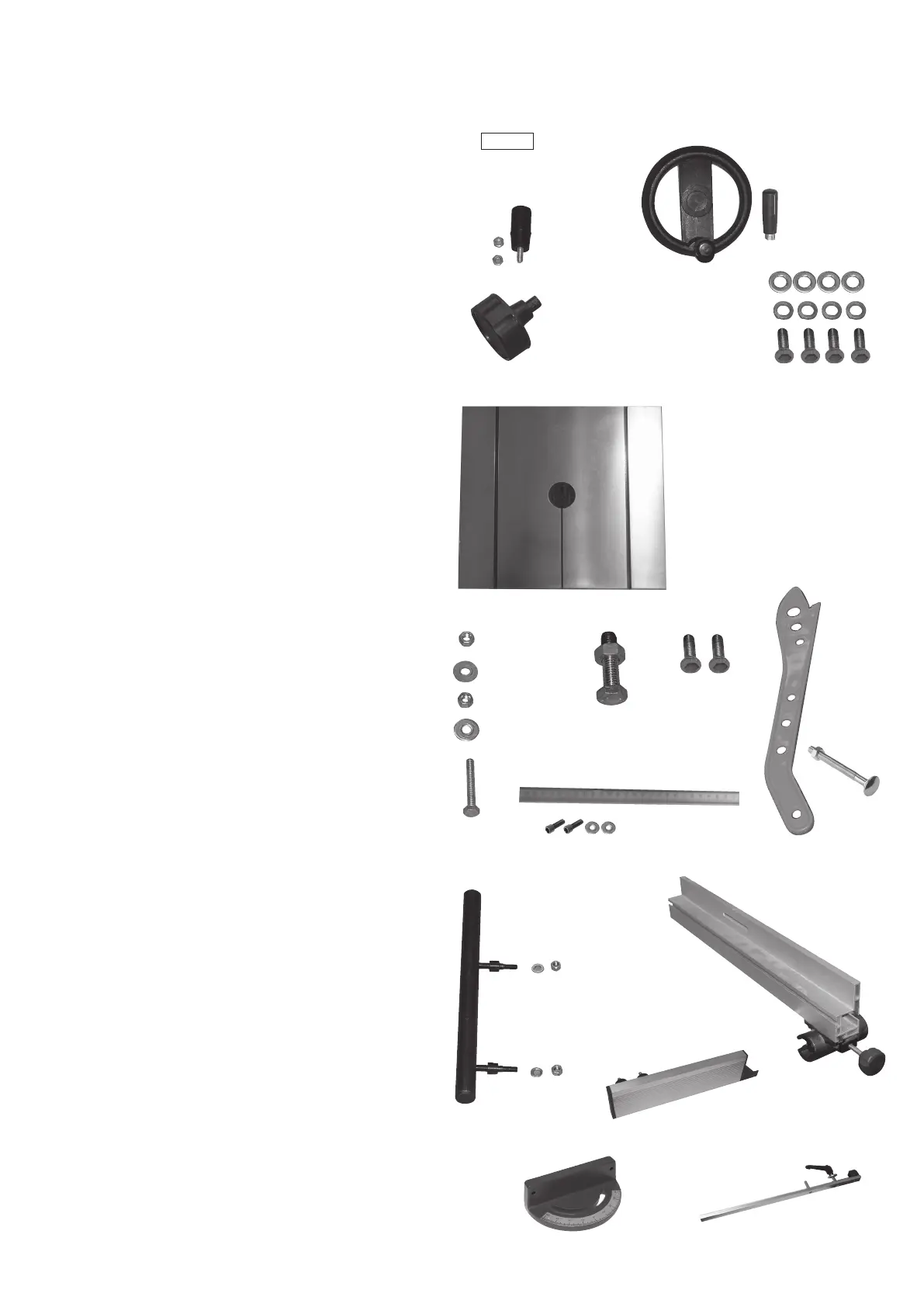

When unpacking the machine, in addition to the bandsaw itself, the
following components are included for the initial assembly Fig.4.1:
1. 2 x Nuts and small crank handle
2. Rise & fall hand wheel and crank handle
3. Blade tensioning knob
Table Assembly
4. Table
5. 4 x Table fixing bolts, washers and spring washers
6. 4 x Long fixing bolts, nuts and washers
7. Table levelling nut and bolt
8. Scale bracket
9. Scale bracket fixings screws and washers
10. 2 x hex head bolts
11. Push stick, holder and nut.
Fence Assembly
12. Fence bar
13. Fence bar fixing nuts and washers
14. Fence assembly
Mitre Gauge Assembly
15. Fence extrusion
16. Gauge
17. Slide
Fig.4.1
1
2
4
8
9
5
11
12
13
3
6 7
( x 4 )
10
15
16
17
14
