Record Power BS350 - Stand & Wheel Kit Assembly

9
3. Stand & Wheel Kit Assembly
3.1 Stand & Wheel Kit Assembly
CAUTION! The machine is heavy. Additional help or a suitable
lifting device or support will be required for lifting the machine
onto the stand.

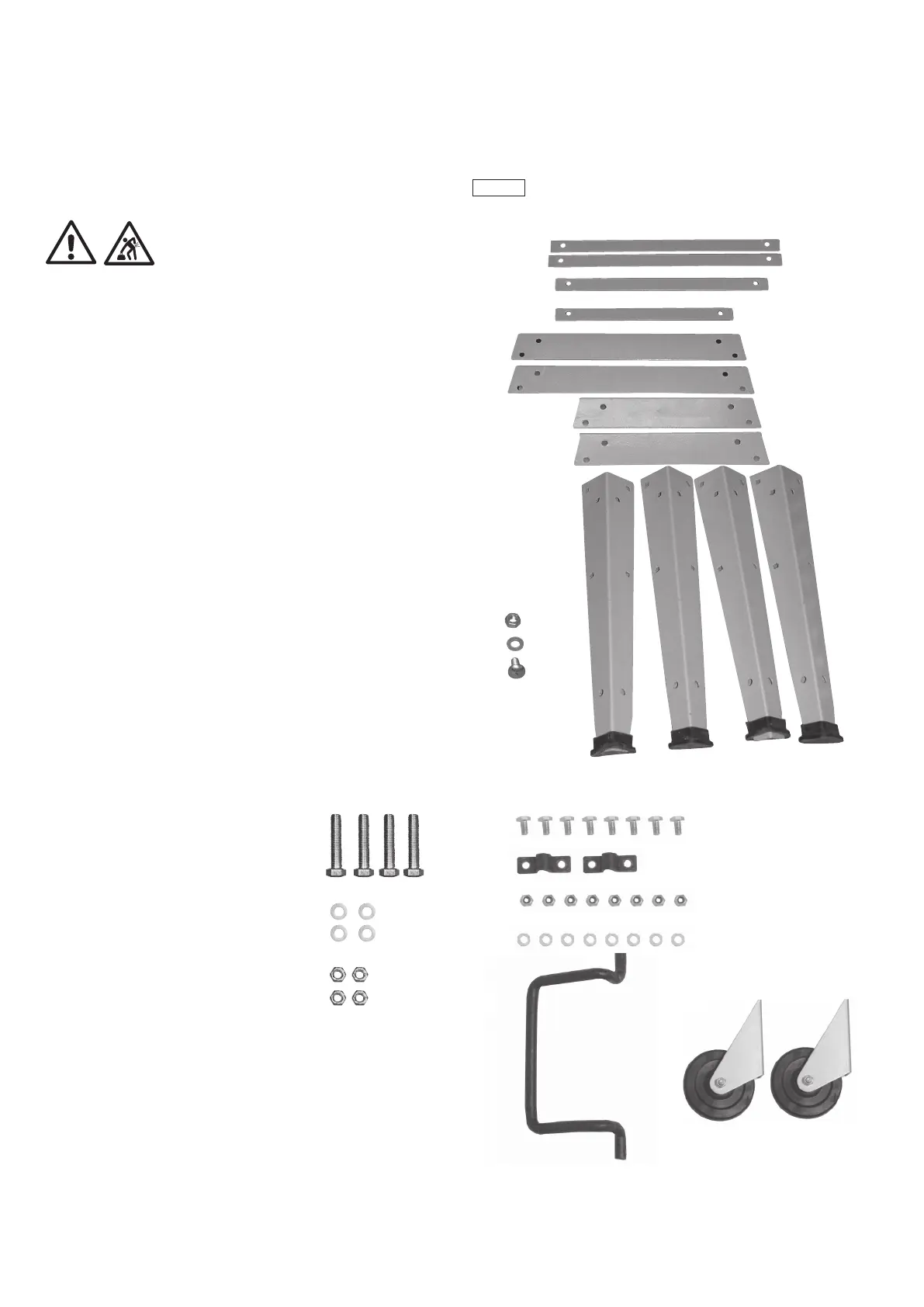

The stand and wheel kit comes as a self assembly unit, Fig.3.1.
Stand
1. 2 x Long mid brace supports
2. Medium mid brace support
3. Short mid brace support
4. 2 x Long top brace supports
5. 2 x Short top brace supports
6. 4 x Legs
7. 24 x Stand fixing nuts bolts and washers (each)
8. 4 x Long fixing bolts, nuts and washers
Wheel Kit
9. 8 x Hex bolts
10. 2 x D-Handle brackets
11. 8 x Nylon nuts
12. 8 x Washers
13. D-handle
14. 2 x Fixed wheels
1
3
2
4
5
6
7
Fig.3.1
( x 24 )
i
Kg
i
Kg
9
10
11
12
13 14
8
