Record Power CL4-CAM - Assembly Instructions; Identifying Package Contents; Lathe Component Identification

10
6. Assembly Instructions
4
7
5
2
8
9
10
11

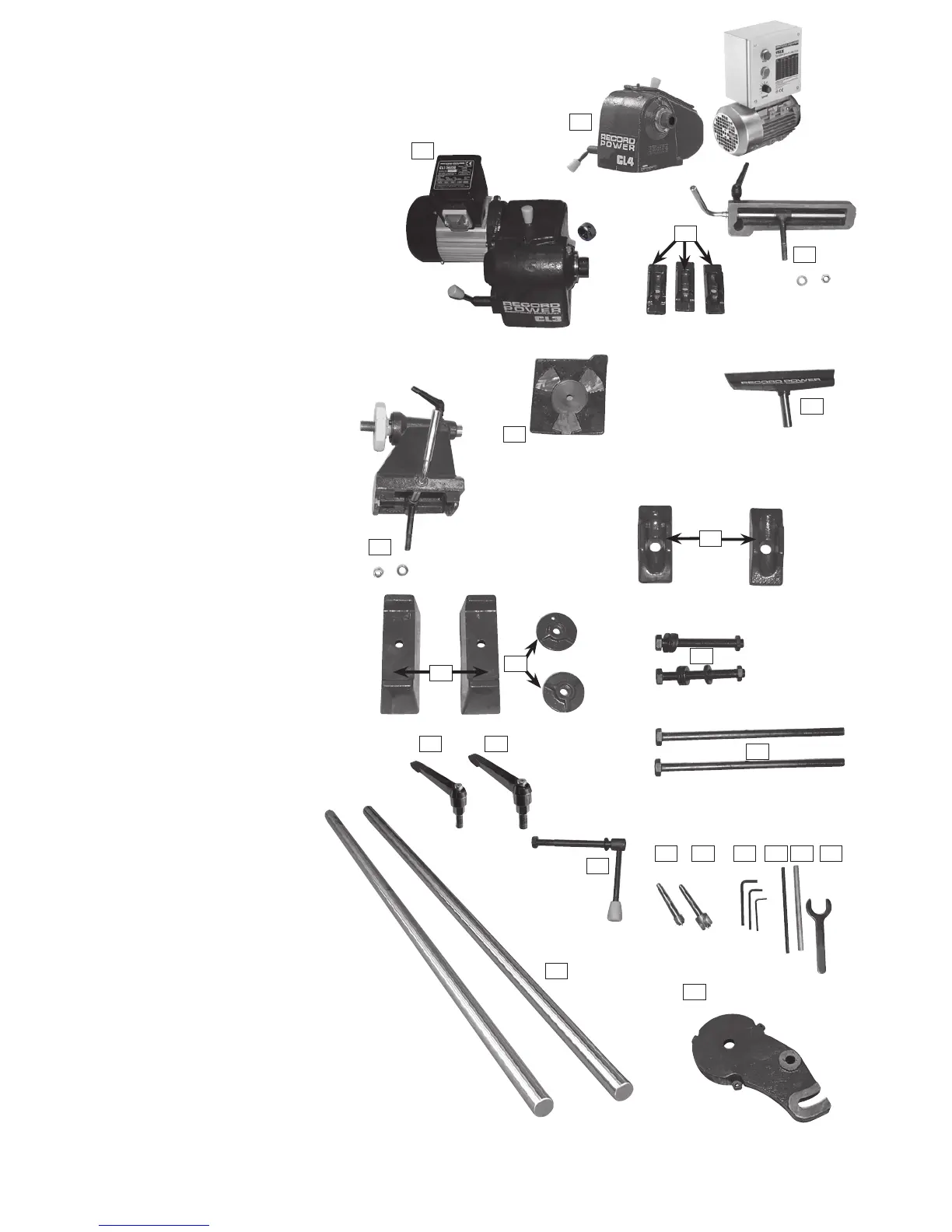

ASSEMBLY – IDENTIFYING
CONTENTS
Inside the shipping container you will find the
following:
1a. CL3-CAM Headstock with motor
& thread protector
1b. CL4-CAM Headstock & VSLK unit
2. 3 x Square straps
3. Cam lock banjo, washer and nyloc nut
4. Saddle
5. Toolrest
6. Tailstock, including pre-installed
brass pad, washer and nyloc nut
7. 2 x End brackets
8. 2 x Wooden bench mounting
washers (not required on
RPLB24-48 lathe bench, for use
when mounting to a wooden bench)
9. 2 x Angle straps
10. 2 x Display mount bolts
(for retailer use)
11. 2 x Long bolts
12. Long stem locking handle
13. Small ratchet handle for tailstock
14. Large ratchet handle for toolrest
15. Tailstock centre
16. Four prong drive centre
17. 3 x Allen keys
18. Pry bar
19. Brass rod
20. Spanner
21. 2 x bed bars (separate box)
22. Motor plate (CL4-CAM only)
21
22
12
13 14
1a
6
1b
3
1715 1816 19
20
