17. Use & Application of the CL3/B

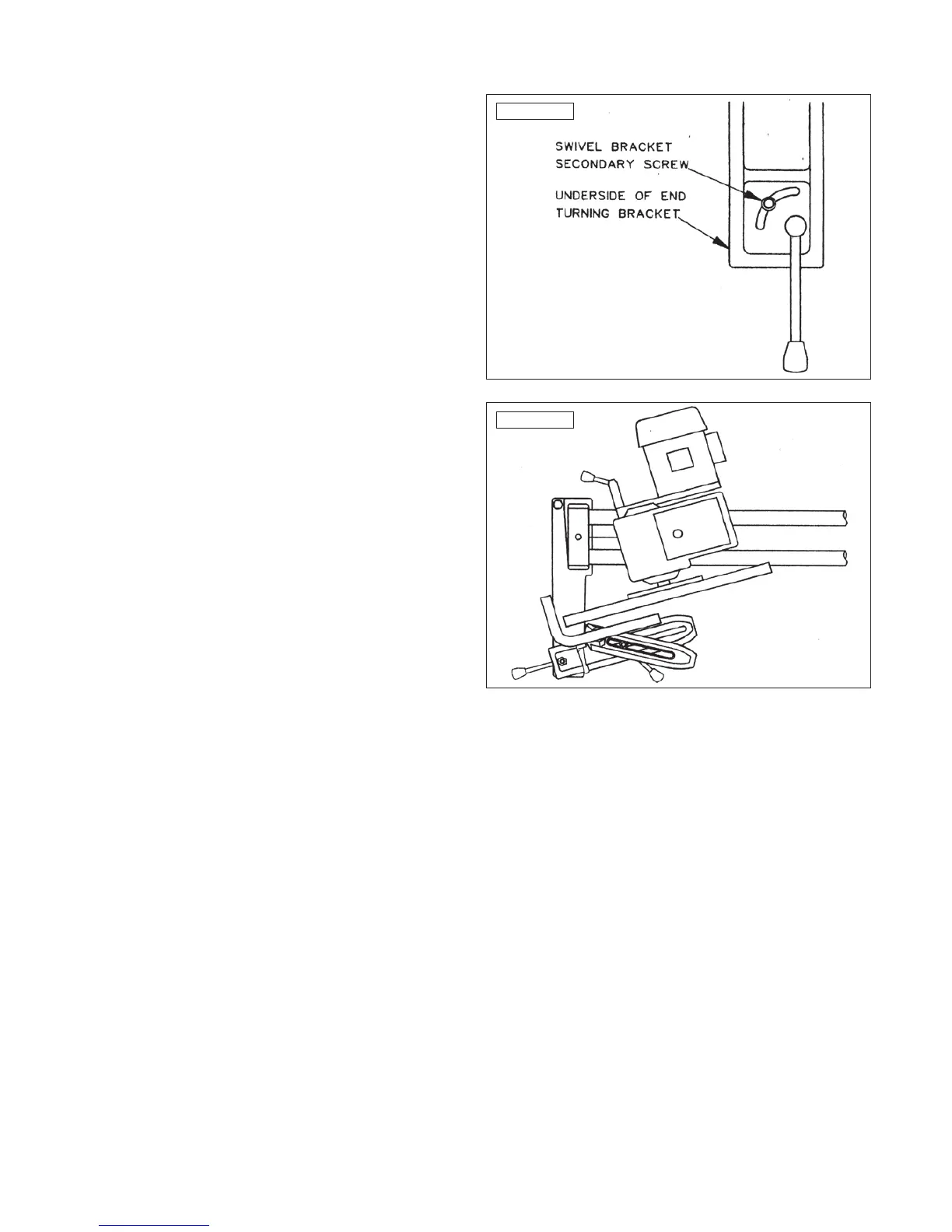

Fig.17.1
Fig.17.2
Normal Duty work
For normal duty work the swivel bracket clamping screw is sufficient to
secure the swivel bracket in position but if movement is anticipated then the
swivel bracket secondary screw should also be tightened, Fig 17.1.
Thin work
For thin work the headstock can be swivelled to give maximum clearance for
the turning tool handle, Fig 17.2.
