16. Assembly of the CL3/B

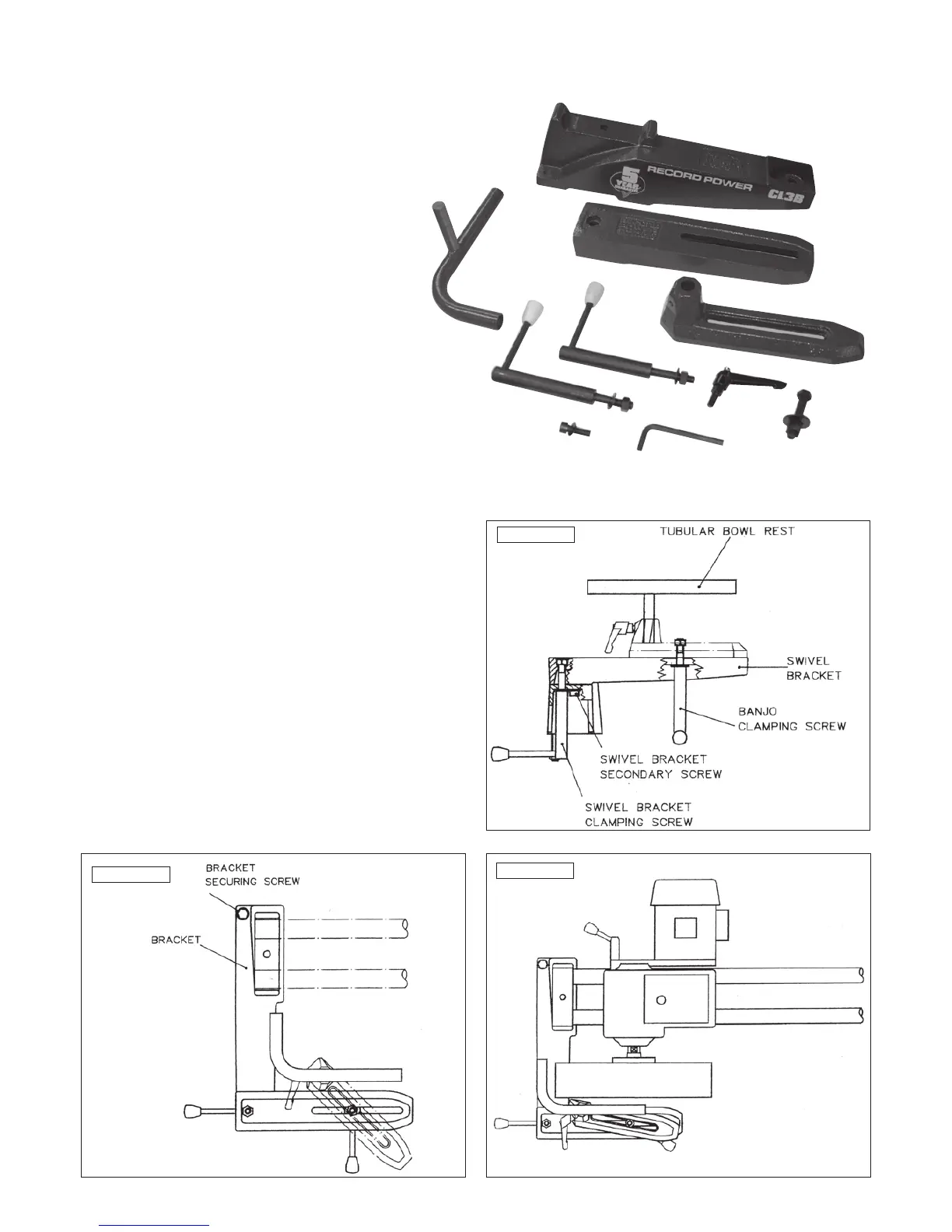

15. Contents of the CL3/B Package
Please note: The bracket supplied as part of the CL3/B replaces
the end bracket supplied with the lathe, at the head stock end.
Fitting The Bracket To The Lathe
To assemble the unit, simply remove the end bracket at the headstock end
of the machine and fix the new bracket supplied with the CL3/B in its place.
Then assemble the swivel bracket as shown in Fig 16.1 & Fig 16.2. This
unit can be left on the machine when turning between centres etc.
Positioning & Adjustment
The most comfortable position for turning a particular workpiece can be
obtained not only by adjusting the various components of the bowl rest
attachment but also by swivelling the headstock to the optimum angle
and by adjusting its position along the bed bars. See Fig 16.3 for a typical
arrangement of the bowl rest.
1 Bracket
2 Swivel bracket
3 Tubular bowl rest
4 Banjo
5 Banjo clamping screw
6 Swivel bracket clamping screw
7 Bracket securing screw
8 Swivel bracket secondary screw
9 Ratchet handle for tool rest (banjo)
10 Allen key
1
2
3
4
5
6
7
8 10
9
Fig.16.1
Fig.16.2
Fig.16.3
