4. Saw Unit Assembly - cont.

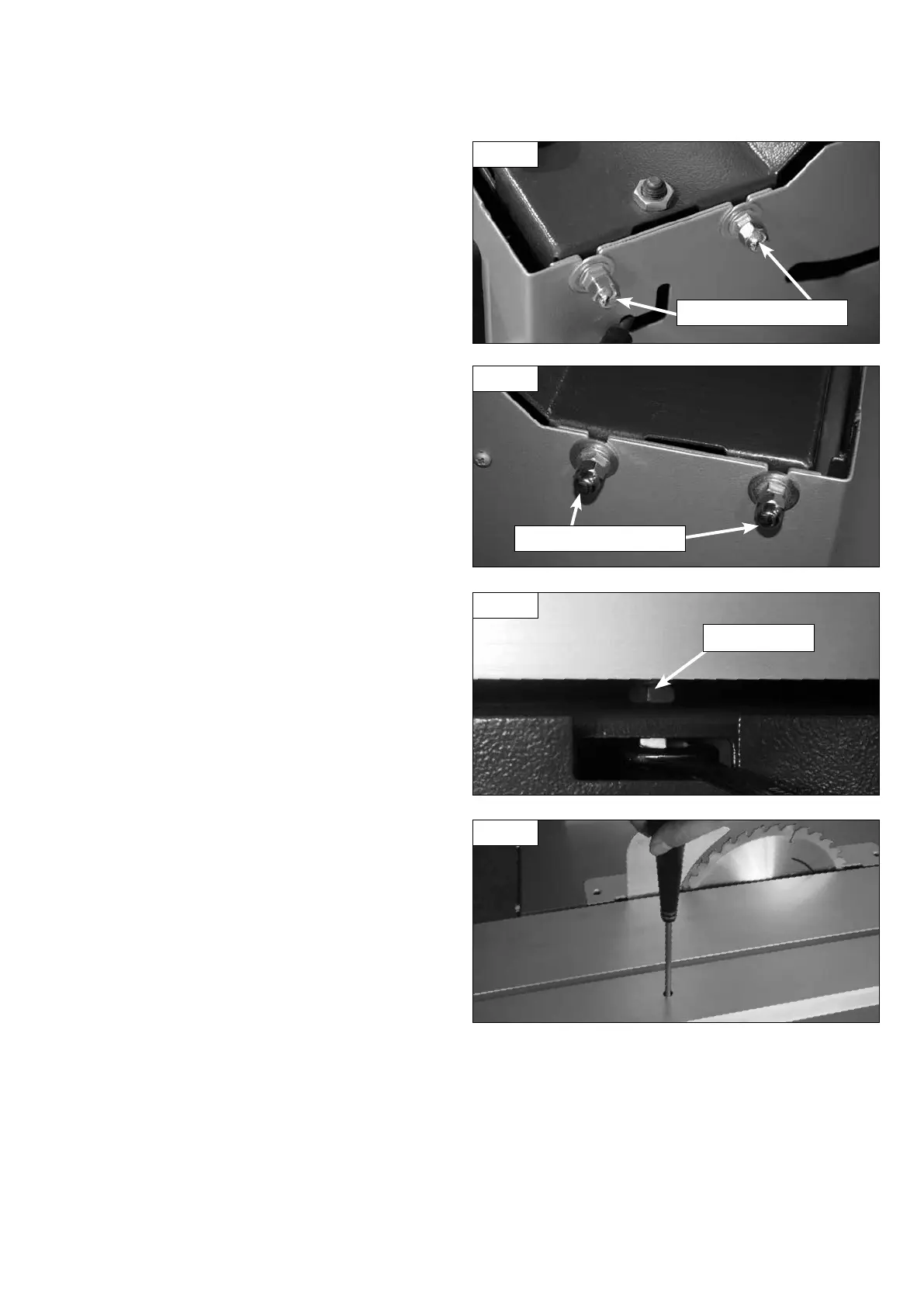

Fig. 4.9
Checking the Height
Place a straight edge across the sliding table and main cast iron table to
check the height Fig. 4.8. The sliding table should be slightly higher than
the main table by 0.2mm to 0.3mm. If adjustment is required use the
information below:
• If the front of the sliding table is not correctly adjusted, loosen the two
domed nuts on the front of the machine Fig. 4.9 but do not remove.
• Adjust the table as necessary and re-tighten the domed nuts.
• if the rear of sliding table is not correctly adjusted, loosen the two domed
nuts at the rear of the machine Fig. 4.10, but do not remove:
• Adjust the table as necessary and re-tighten the domed nuts.
Fig. 4.10
Front Adjustment Nuts
Rear Adjustment Nuts
When the tables are at the correct height, check the sliding table to see if it
moves smoothly. If not, loosen the bottom lock nut through the window
Fig. 4.11 and using a screwdriver rotate the eccentric wheels to
correct, Fig. 4.12.
Self Lock Nut
Fig. 4.11
Fig. 4.12
