Control module STM 20 RED/DUO 3
B6_Control_SYS20_EN_V1.3.doc Art. Nr. 102-020401135 18 / 36
3.5. Components RED/DUO system
MS Power set DUO
Control module STM 20 RED/DUO
2 pc. ATE 20
Socket
Cable and installation material
102-020808749
BAT 20 RED 102-020808835
In the two above mentioned assembly kits, there are all the necessary components included for a
standard complying RED installation.
Mechanically there is no difference between a pure DUO system and a RED system (with certifica-
tion for escape and rescue routes). On a RED installation there is a special RED-software for
CPU1 and CPU2 loaded on the control module STM 20 RED/DUO. This software complies with
the standard: EN 13849-1:2006 Category 3 PLd.
On RED system the Encoder cable must be also connected on the 2
nd
Motor.

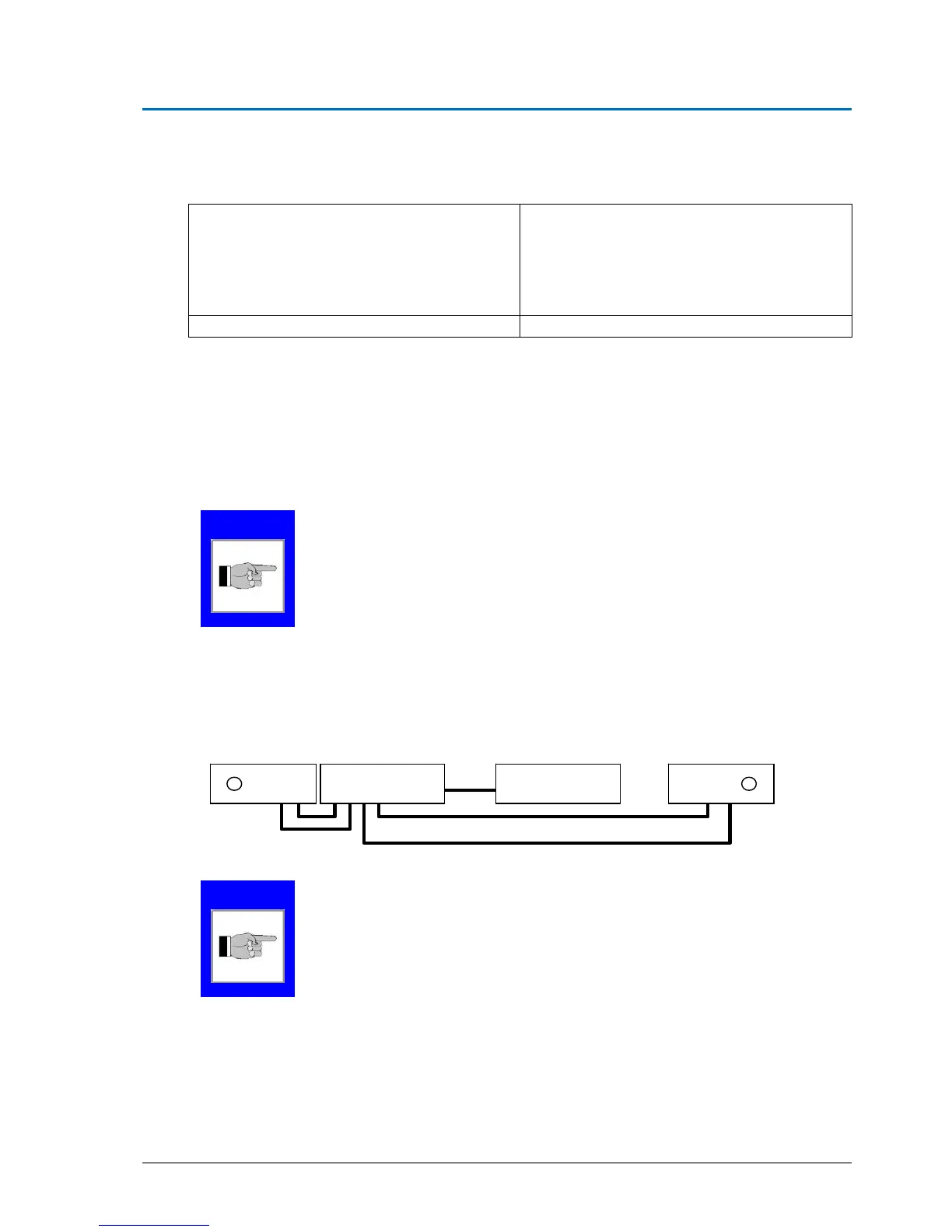

3.5.1. Overview of the additional components
Basically, the components will mounted and wired analogue to a normal sliding door.
Below we refer to the necessary additional components for a RED system.
Note that STM 20 RED/DUO will be positioned next to MOT 1
(short Encorder connection cable)
The BDE – V for the night closure must be procured locally. There are 2 closing
contacts necessary.
NOTE
NOTE
Mot 1 Mot 2
STM 20 RED/DUO
BAT 20 RED
