Control module STM 20 RED/DUO 3
B6_Control_SYS20_EN_V1.3.doc Art. Nr. 102-020401135 13 / 36
3.2.1. Escape and rescue routes as RED installation
Control module STM 20 RED/DUO with RED software has been tested according
EN 13849-1:2006, category 3 PLd.
3.2.2. Heavy door leafs as DUO installation
Control module STM 20 RED/DUO with DUO software has been tested according
EN 13849-1:2006, category 2 PLc.
 STM 20 RED/DUO is usually delivered with a RED software!
 In the event of applications as DUO-operators (heavy doors), the appropriate
DUO-software must be installed on CPU 1 and CPU 2!
 FPC flash  manual installation (both CPU’s!)

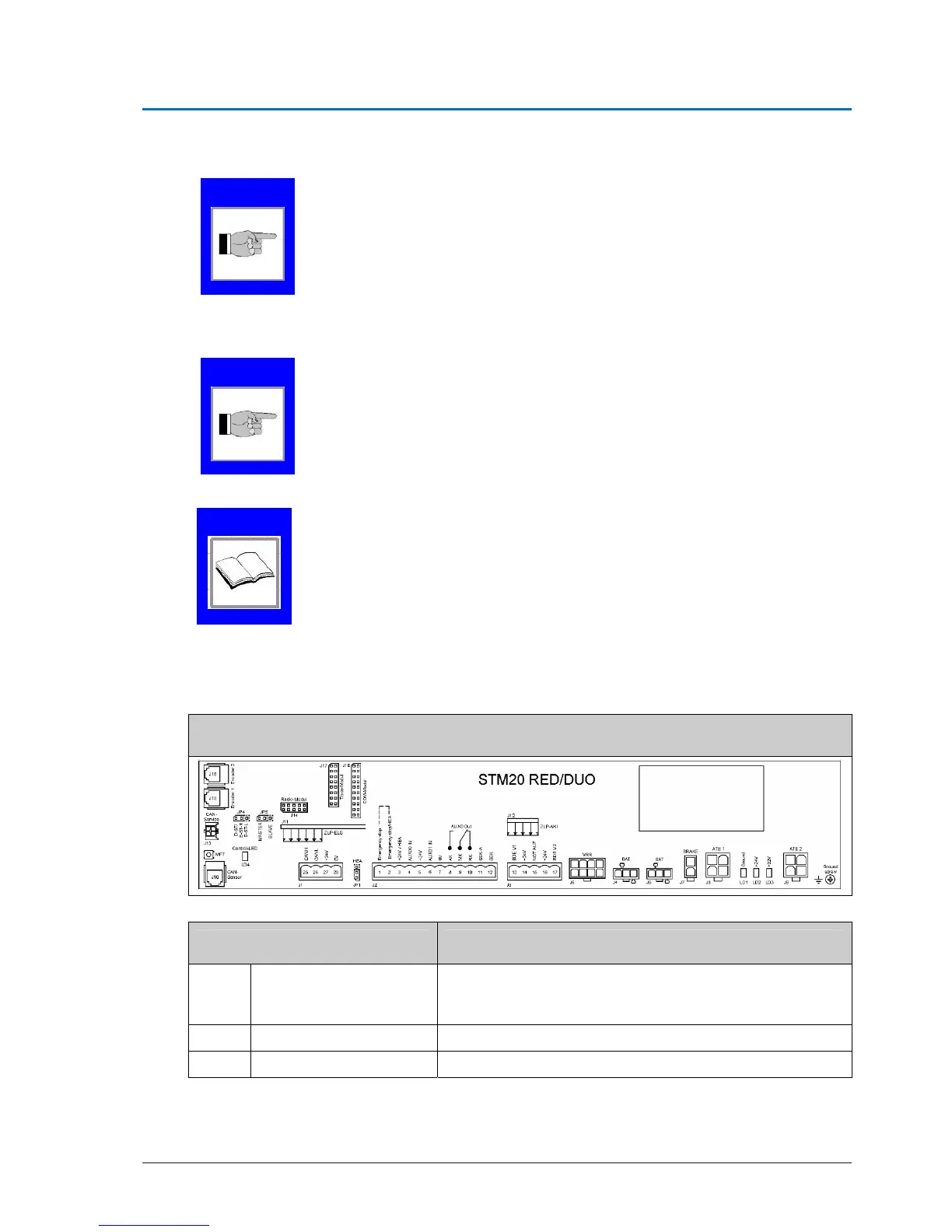

3.3. Type plate STM 20 RED/DUO
STM 20 RED/DUO
Jumper Change of function
JP1
Jumper on HEA
Allows emergency stop and HEA to be connected in series
 HEA  3-2
 Emergency stop  2-1
JP2
Not printed
JP3
Syst.-conditioned, internal Not visible – required for VRR2 (MPV 16)
ATTENTION
NOTE
NOTE
