Rectifier RT9- 24V - Page 42

Installation, Operation and Technical Manual Rectifier Technologies
158-1872-01 38 19-Feb-14

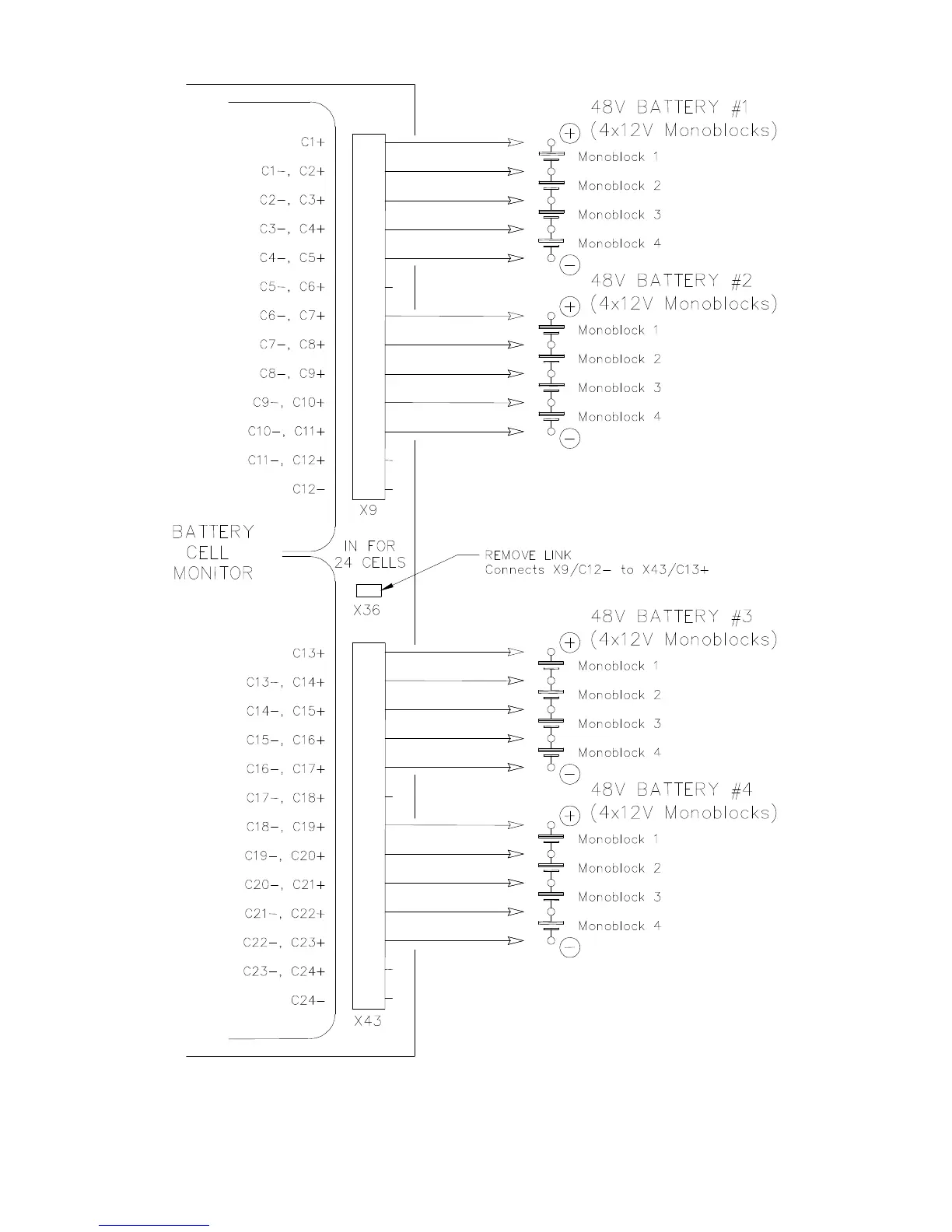

Figure 4.14 BCM connections to up to four 48V (4 x 12V monoblock) battery banks.
