Rectifier RT9- 24V - Rectifier Specific Configurations

Installation, Operation and Technical Manual Rectifier Technologies
158-1872-01 7 19-Feb-14
It is possible to have both the single and three phase AC monitoring modules connected at
the same time. This can be useful where the AC output of an inverter running off the 48V
DC bus can be monitored at the same time as the three phase AC supply to the rectifiers.
Battery Cell Monitor
System Controller
MUIB
(Supplies System
Controller)
AC Distribution
with 3

Monitor
Remote Alarms
and Ambient
Temp. Sensor
DC Bus
DC Distribution
Batteries with
Circuit Breakers
Magazines of
AC-DC Converters
DC Loads
with 1

Inverter
and AC Monitor
Local Comm. Port
Remote Comm. Port

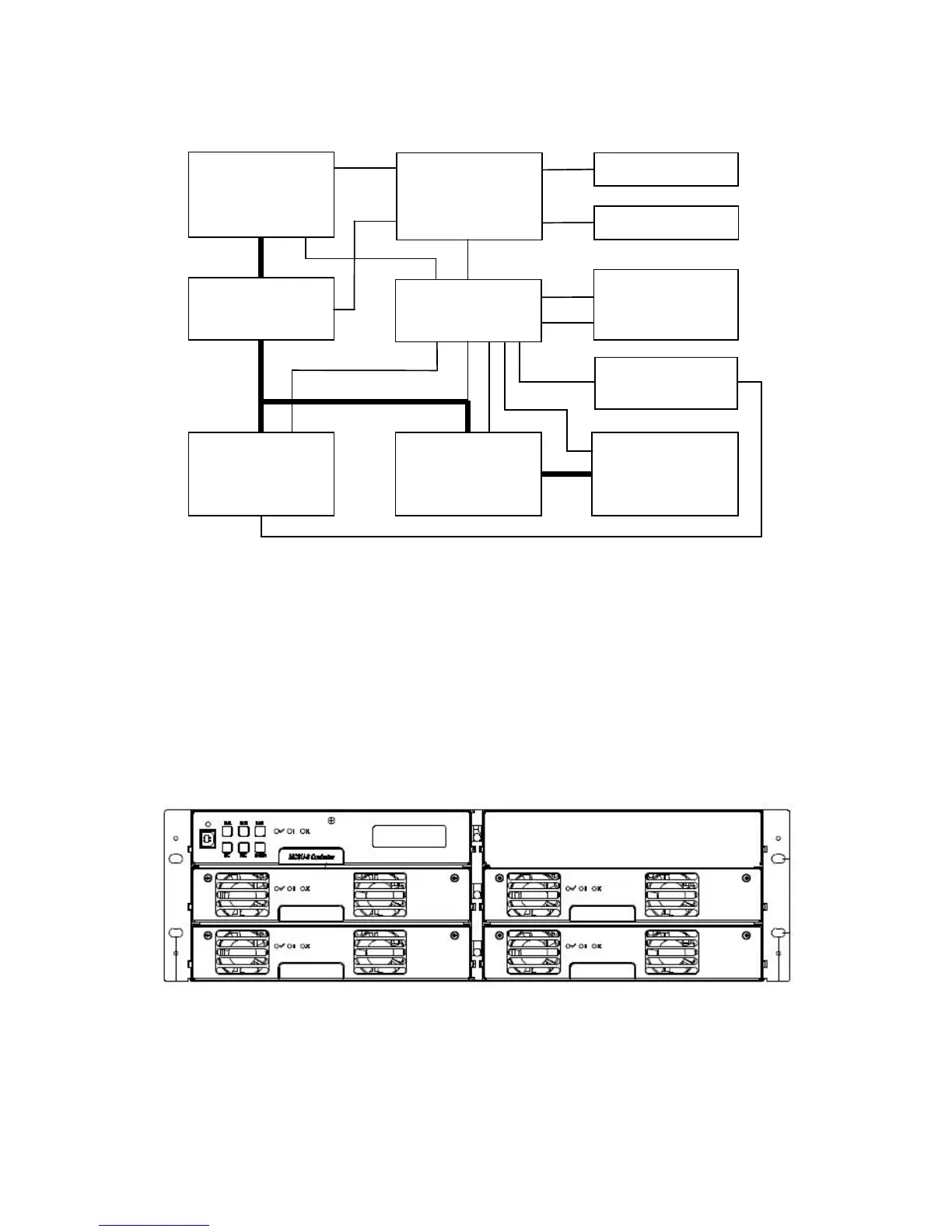

Figure 3.3 System with additional 3 phase AC Monitoring; simultaneous monitoring
of single phase inverter also possible
3.1.2 Rectifier Specific Configurations
A typical mechanical arrangement of a system comprising 4 rectifiers in a mini shelf is
shown in Figure 3.4. It consists of 4 rectifiers (2U total), and a MCSU-4 shelf, for a total of
3U. The arrangement shown is designed to fit into a standard 19” rack. Other
configurations are equally possible.
Figure 3.4 Typical 4 rectifier modular power supply with MCSU-4
