Red Sea MAX
Circulation pumps (x 2)
1. Disassemble and reassemble the pumps in order to familiarize
yourself with their inner parts.
2. Position the first pump in the filter media chamber with the
intake pipe pointing down. Push the pump outlet through the
left hole in the smoked glass wall (Fig. 8 A, B). Make sure the
rubber shock absorber sits on the outlet.
3. Screw the 3-part adjustable outlet nozzle onto the threaded
section of the pump outlet. Ensure that the two components
are firmly attached to either side of the smoked glass wall
(Fig.8 C)
4. Repeat steps 1-3 for the second pump, attaching it to the
second nozzle through the remaining hole in the smoked glass
wall (Fig 8 D)

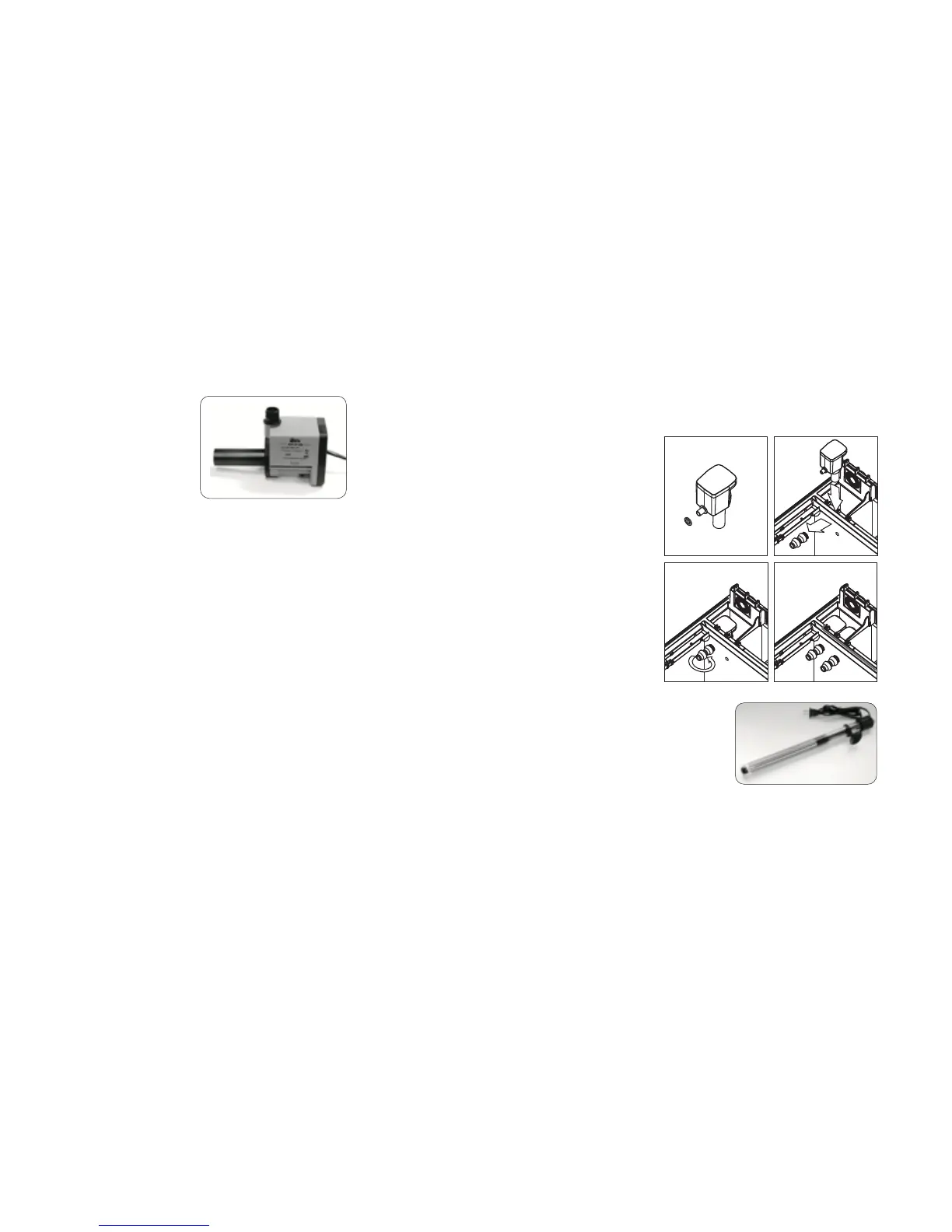

Figure 8: Installing
the circulation
pumps
5. Fasten the pump's electrical cords through the cords clips
and place them in the cord channel that runs the length of
the aquarium's back rim, threading it through the outermost
cord channel at the other end of the aquarium and out through
the cord access hole.
Figure 7: Circulation pump
Heater
1. Inspect the heater for damage
or cracks.
2. Set the thermostat to 26°C /
78.8°F.
3. Insert the heater into the heater chamber, which is adjacent
to the filter media chamber.
Figure 9: Heater
