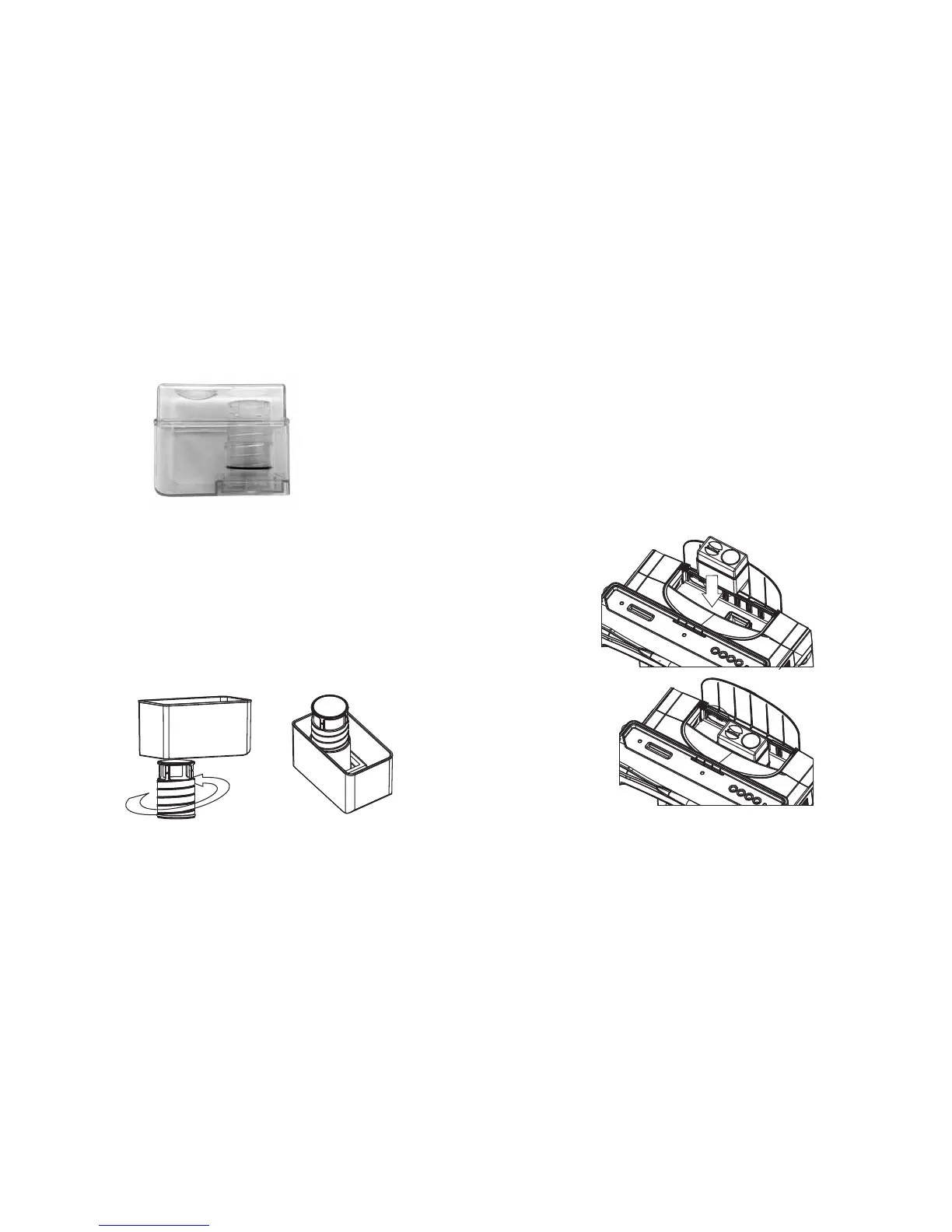

Figure 28: Attaching the skimmer collection cup
3. To complete the assembly of the collection cup make sure that
the lid is seated properly.
4. Open the skimmer panel in the hood.
5. Hold the cup with the foam adjuster on the right hand side
and the waste collection area on the left hand side.
6. Line up the hole in the cup bottom with the top of the skimmer
so that the cup is not above the foam mechanical filter (fig
28). Push the collection cup onto the top of the skimmer until
firmly seated in position.
Figure 27: assembling the integrated foam adjuster
1. The collection cup consists of 3 parts: the collection cup body,
the integrated foam adjuster already assembled inside it,
and the lid.
2. Familiarize yourself with the assembly of the foam adjuster
which will need to be removed periodically for cleaning. When
reassembling make sure that the o-ring at the bottom of the
foam adjuster enters the cup smoothly. Initially assemble the
foam adjuster to its uppermost position (fig 27).
Skimmer collection cup
Figure 26
Skimmer
collection cup
