17. One side at a time, push the junction of the lower and middle
legs as shown in Fig. 24 and allow the hood to close slightly
until it rests firmly on the supports.
18. To close the hood repeat the above in the reverse order, first
closing to the 30° position and

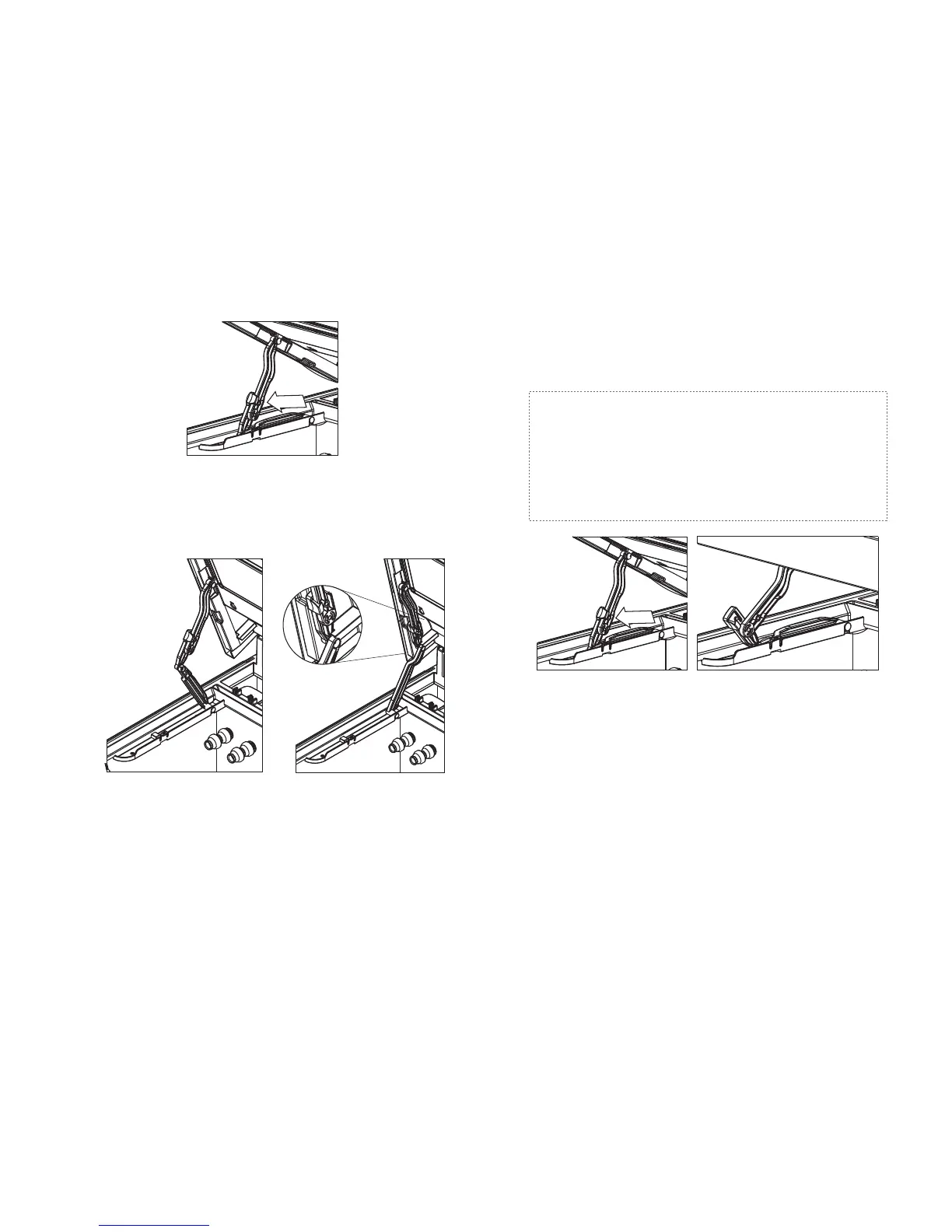

Figure 24: opening the hood to upright position
Figure 23: releasing the snap
NOTE To disassemble the hood from the aquarium, remove
the hood support pins by inserting the end of a small
screwdriver into the small recess in the head of the
pin. Thereafter, remove the hood pins from the hood
hinges at the back. DO NOT attempt to remove the
hood support by prising open the support joint.
thereafter to the horizontal position. Slight pressure in the direction
of the arrow in Fig. 25 will be required to separate between the
upper and middle legs.
Figure 25: Lowering the hood
