RED STATION RED MINI-MAG – ESATA/USB 3.0 CONNECTORS AND
CONTROLS

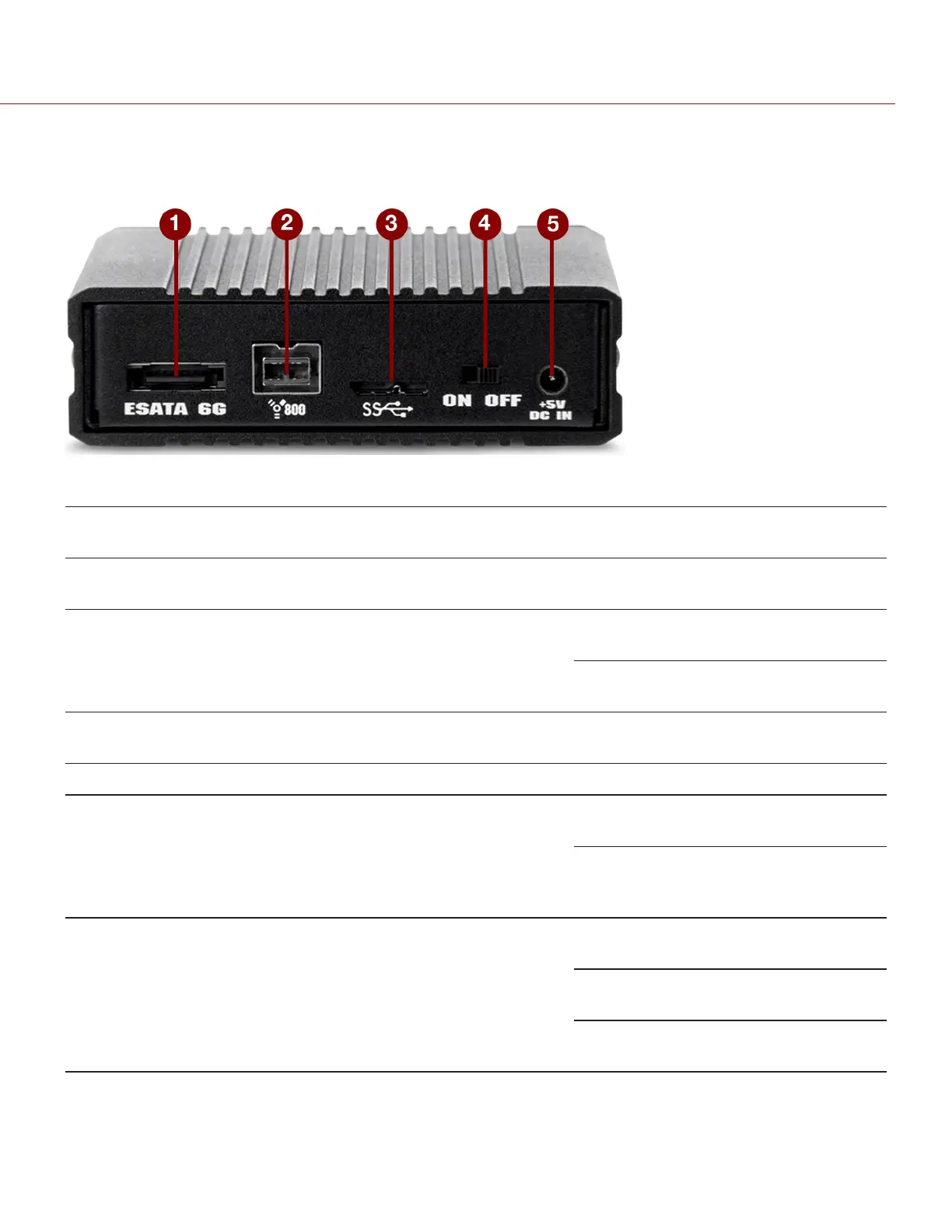

Figure: RED STATION RED MINI-MAG – ESATA/USB 3.0 (Rear)
# CONNECTOR DESCRIPTION COMPATIBLE
PARTS
PARTNUMBERS
1 eSATA 6G connector
1
Connect to a computer via an eSATA
connection
RED STATION
eSATA Cable (24")
790-0250
2 FireWire 800 Connect to a computer or additional
RED STATIONs via a FireWire 800
connection
RED STATION
FW800 Cable (2")
790-0253
RED STATION
FW800 Cable (24")
790-0251
3 USB 3.0 port Connect to computer via USB 3.0
connection
RED STATION USB
3.0 Cable (24")
790-0314
4 On/Off Switch Turn on/off N/A N/A
5 +5 VDC IN +5 VDC power in RED STATION AC
Power Adaptor
790-0292
RED STATION USB
To DC Power Cable
(24")
790-0316
N/A RED MINI-MAG slot
(front)
Slot for inserting a RED MINI-MAG RED MINI-MAG (240
GB)
750-0082
RED MINI-MAG
(512GB)
750-0078
RED MINI-MAG
(1TB)
750-0081
1. Only Silicon Image or HighPoint SATA cards connect to the RED STATION RED MINI-MAG – ESATA/USB 3.0 through eSATA.
