SSD MODULES

You can mount the REDMAG 1.8" SSD to the following modules:

DSMC 1.8" SSD Side Module

DSMC 1.8" SSD Side Module (DRAGON) Carbon Fiber

DSMC 1.8" SSD Side Module (DRAGON)

Rear SSD Module

DSMC 1.8" SSD SIDE MODULES

RED

offers the following DSMC 1.8" SSD Side Modules:

DSMC 1.8" SSD Side Module: Mounts to any standard aluminum EPIC/SCARLET.

DSMC 1.8" SSD Side Module (DRAGON): Mounts to an EPIC/SCARLET with a RED DRAGON sensor, and is

only available with an EPIC/SCARLET with a RED DRAGON sensor.

Carbon Fiber DSMC 1.8" SSD Side Module (DRAGON): Mounts to a carbon fiber EPIC/SCARLET, and is only

available with a carbon fiber EPIC/SCARLET.

Each DSMC 1.8" SSD Side Module attaches to the camera system so that you can mount a REDMAG 1.8" SSD to

your camera.

Each DSMC 1.8" SSD Side Module has the same EVF/LCD LEMO connector, user keys, REC button, and LED as the

RED MINI-MAG Side SSD Module.

NOTE: The two (2) screws under the SSD slot on the standard aluminum side SSD modules secure an internal bracket

that provides structural support. DO NOT loosen these screws. Loosening these screws DOES NOT provide extra

clearance for the SSD.

WARNING: The red metal heat sink under the SSD slot on the Carbon Fiber DSMC 1.8" SSD Side Module (DRAGON)

may get hot during long-term operation.

WARNING: Modules, expanders, and lens mounts are NOT HOT SWAPPABLE, meaning you cannot remove or install

these items while the camera is turned on. Before installing or removing these items, you MUST turn off the camera.

Failure to do so may result in damage to the item or camera that is not covered under warranty.

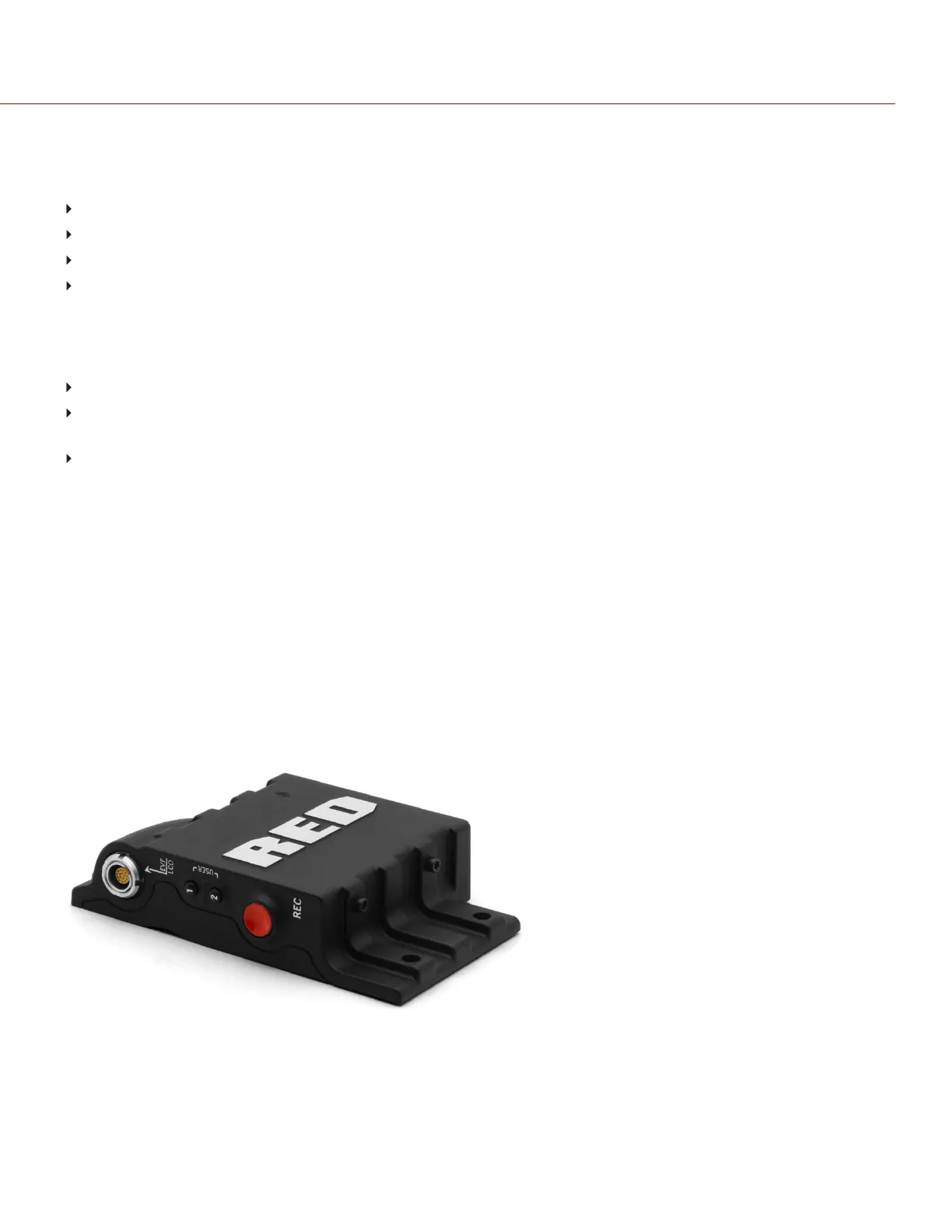

Figure: DSMC 1.8" SSD Side Module (Rear and Front)

RED DSMC MEDIA OPERATION GUIDE
