DSMC 1.8" SSD SIDE MODULE INCLUDED COMPONENTS
The items listed in the table below ship with the DSMC 1.8" SSD Side Module.
ITEM PART NUMBER
DSMC 1.8" SSD Side Module 720-0013
Four (4) M3x0.5 x 6 mm Cap Screws N/A
DSMC 1.8" SSD SIDE MODULE CONTROLS
This section describes the controls for all of the DSMC 1.8" SSD Side Modules.

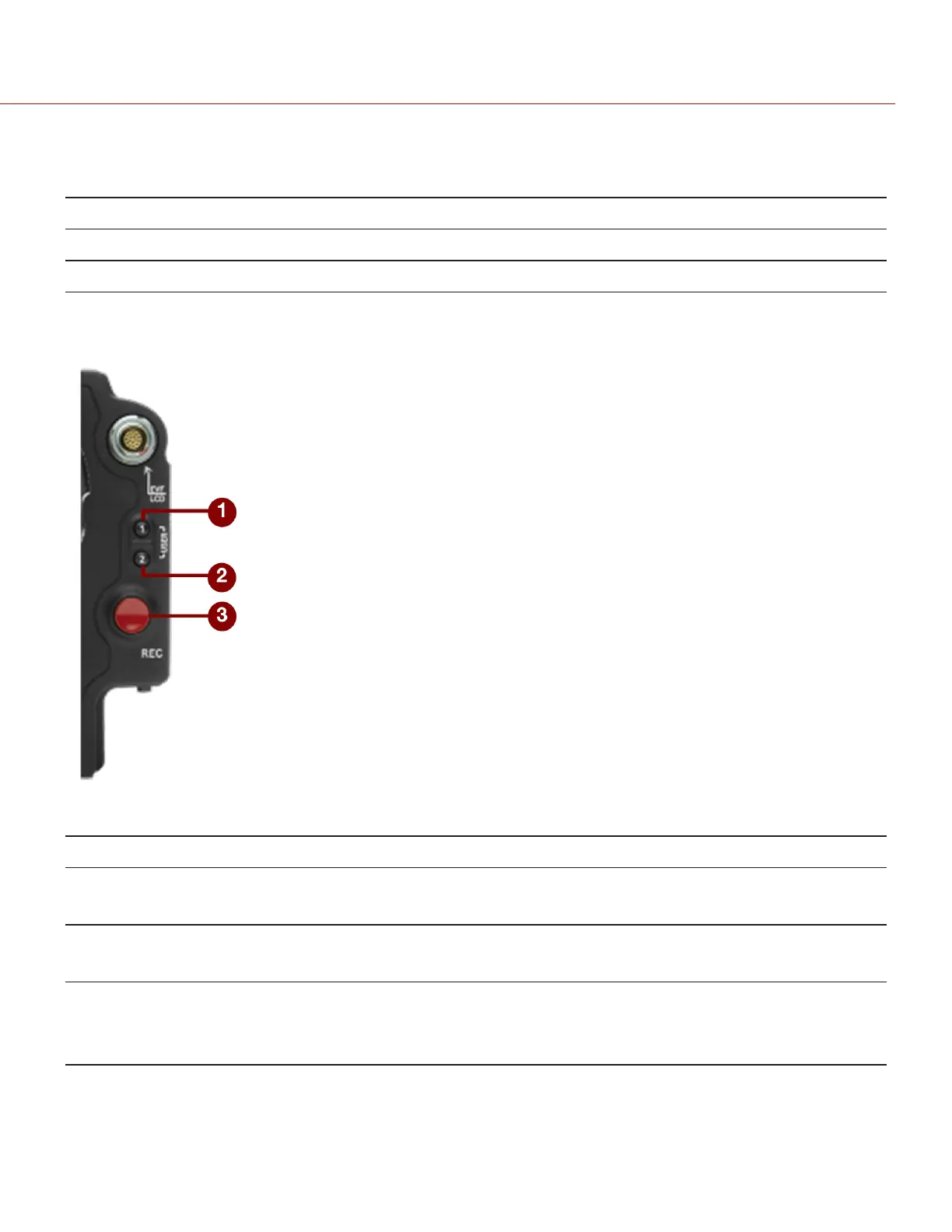

Figure: DSMC 1.8" SSD Side Module (Front)
# CONTROL DESCRIPTION
1 User Key 1 Programmable key
User Key 1 + 2 Press: Eject Media
2 User Key 2 Programmable key
User Key 1 + 2 Press: Eject Media
3 REC button Programmable key
Full Press: Record Toggle
Half Press: AF Start
