DSMC 1.8" SSD SIDE MODULE CONNECTORS
This section describes the connectors for all of the DSMC 1.8" SSD Side Modules.
The DSMC 1.8" SSD Side Module mounts to the left side of the EPIC/SCARLET. The rear face of this module features
a slot for inserting a REDMAG 1.8" SSD.
WARNING: DO NOT attempt to insert any media type except for the REDMAG 1.8" SSD, or any foreign objects, into
the SSD slot, as that may damage the DSMC 1.8" SSD Side Module or camera system.
The EVF/LCD connector on the front face of the DSMC 1.8" SSD Side Module provides digital video,
communications, and power interconnection between the camera system and a RED EVF or RED LCD. Due to the
requirement for absolute data integrity, the pinout of the EVF/LCD connector is not published.

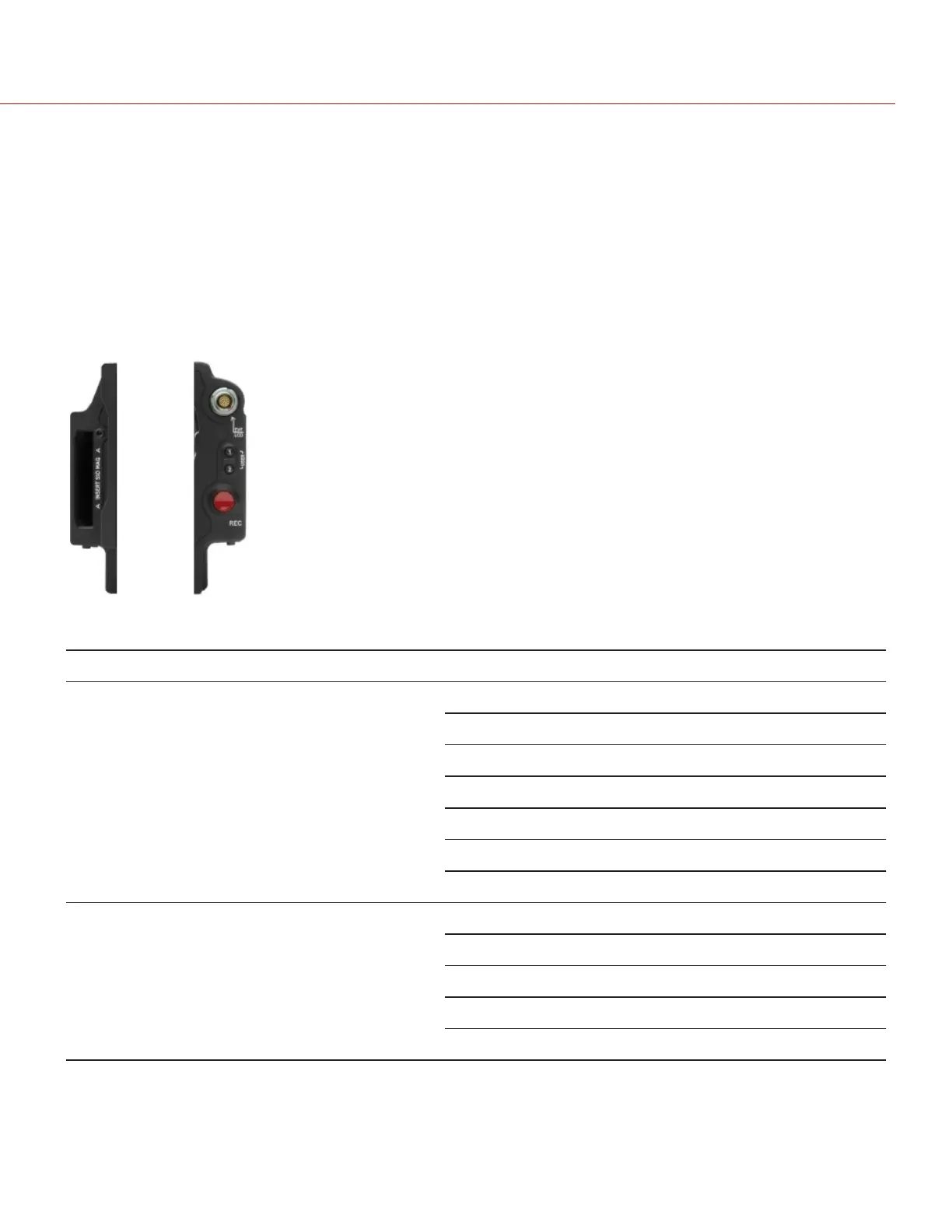

Figure: DSMC 1.8" SSDSide Module (Rear andFront)
CONNECTOR DESCRIPTION COMAPTIBLE PARTS PART NUMBERS
EVF/LCD connector





VIEWFINDER
output





LCD/EVF Cable (Right-to-Right) 7" 790-0158
LCD/EVF Cable (Right-to-Right) 12" 790-0162
LCD/EVF Cable (Right-to-Right) 18" 790-0448
LCD/EVF Cable (Right-to-Right) 32" 790-0449
LCD/EVF Cable (Right-to-Straight) 24" 790-0451
LCD Cable 6' 790-0055
LCD Cable 10' 790-0056
REDMAG 1.8" SSD slot (rear)




Slot for inserting a
REDMAG 1.8" SSD




REDMAG 1.8" SSD (48GB) 750-0044
REDMAG 1.8" SSD (64GB) 750-0025
REDMAG 1.8" SSD (128GB) 750-0021
REDMAG 1.8" SSD (256GB) 750-0026
REDMAG 1.8" SSD (512GB) 750-0037
WARNING: Damage to the camera, side SSD module, or other components of the camera system caused by mixing carbon fiber components with
non-carbon-fiber components is not covered under warranty, and may void the warranty for both the camera and the side SSD module. For more
information, go to "Mixing Carbon Fiber and Aluminum Components" on page7.
