# CONNECTOR DESCRIPTION COMPATIBLE
PARTS
PART
NUMBERS
N/A




REDMAG 1.8" SSD
slot (front)




Slot for inserting a REDMAG 1.8" SSD




REDMAG 1.8"
SSD (48GB)
750-0044
REDMAG 1.8"
SSD (64GB)
750-0025
REDMAG 1.8"
SSD (128GB)
750-0021
REDMAG 1.8"
SSD (256GB)
750-0026
REDMAG 1.8"
SSD (512GB)
750-0037
1. Only Silicon Image or HighPoint SATA cards connect to the RED STATION REDMAG 1.8" through eSATA.
RED STATION REDMAG 1.8" LEDS

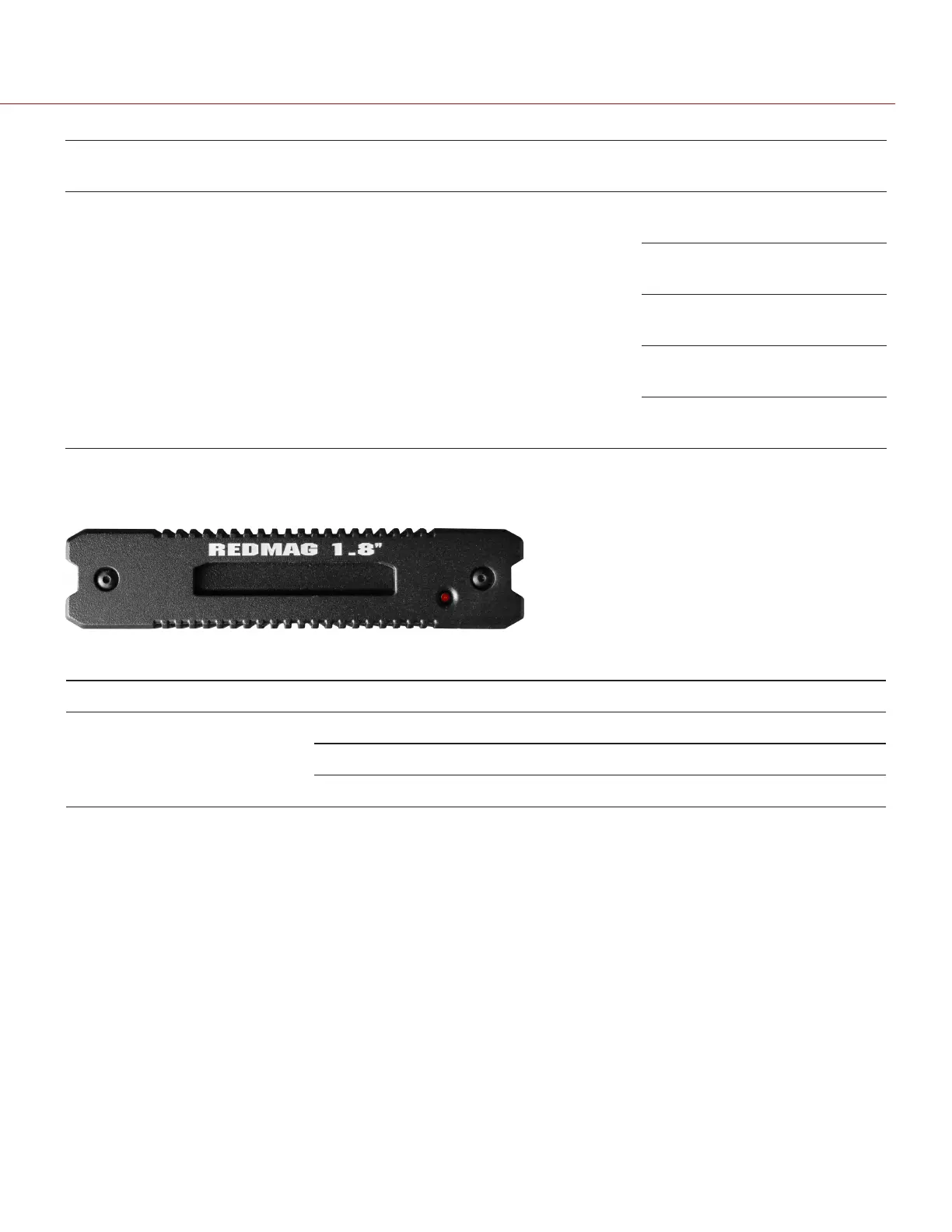

Figure: REDSTATION REDMAG 1.8"
LED COLOR/FLASHING DESCRIPTION
Power Indicator LED Off Powered off and turned off
Red Powered on and turned on
Red flashing (fast) Accessing media
