Reece Series S2 - Page 16

s

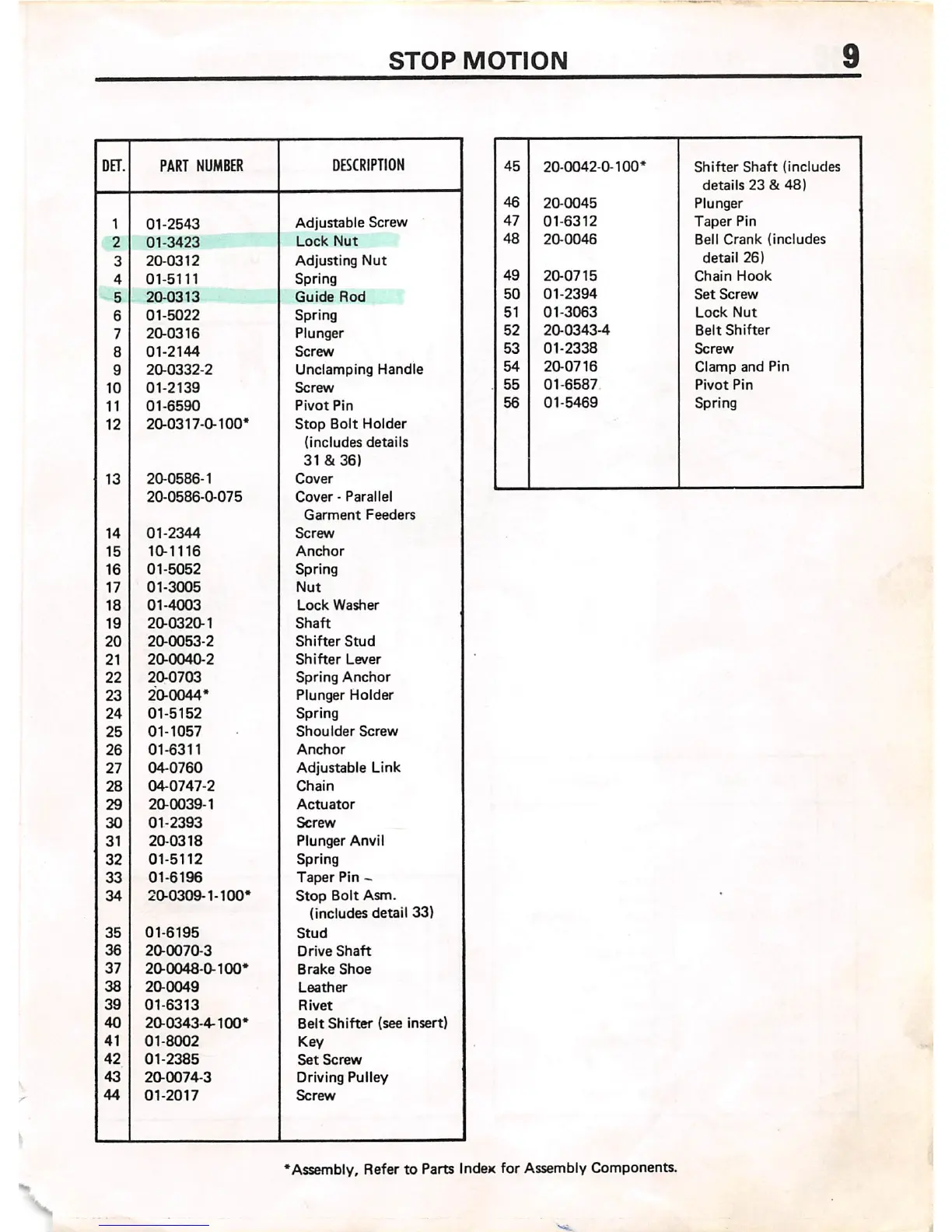

STOP MOTION
DET. PART NUMBER
DESCRIPTION
46 20-0042-0-100*
Shifter Shaft (includes
details 23 & 48)
46
20-0045 Plunger
1 01-2543
Adjustable Screw
47
01-6312 Taper Pin
2 01-3423
Lock Nut
48
20-0046 Bell Crank (includes
3
20-0312
Adjusting Nut
detail 26)
4
01-5111
Spring
49
20-0715 Chain Hook
5
20-0313 Guide Rod
50
01-2394
Set Screw
6
01-5022 Spring
51
01-3063 Lock Nut
7
20-0316
Plunger
52 20-0343-4 Belt Shifter
8
01-2144 Screw
53
01-2338
Screw
9
20-0332-2
Unclamping Handle
54 20-0716 Clamp and Pin
10
01-2139 Screw
55
01-6587
Pivot Pin
11
01-6590 Pivot Pin
56 01-5469 Spring
12
20-0317-0-100* Stop Bolt Holder
(includes details
31 & 361
13
20-0586-1 Cover
20-0686-0-075
Cover - Parallel
Garment Feeders
14 01-2344
Screw
15
10-1116
Anchor
16
01-5052 Spring
17 01-3005 Nut
18
01-4003 Lock Washer
19
20-0320-1 Shaft
20
20-0053-2 Shifter Stud
21 20-0040-2
Shifter Lever
22 20-0703
Spring Anchor
23
20-0044*
Plunger Holder
24
01-5152
Spring
25
01-1057 Shoulder Screw
26
01-6311
Anchor
27
04-0760 Adjustable Link
28
04-0747-2
Chain
29
20-0039-1 Actuator
30 01-2393
Screw
31
20-0318
Plunger Anvil
32
01-5112 Spring
33 01-6196
Taper Pin -
34 2a0309-1-100*
Stop Bolt Asm.
(includes detail 33)
35 01-6195 Stud
36
20-0070-3 Drive Shaft
37
20-0048-0-100*
Brake Shoe
38
20-0049
Leather
39
01-6313 Rivet
40 20-0343-4-100*
Belt Shifter (see insert)
41
01-8002
Key
42 01-2385
Set Screw
43
20-0074-3
Driving Pulley
44
01-2017
Screw
'Assembly, Refer to Parts IndeK for Assembly Components.
