Reece Series S2 - Page 17

10

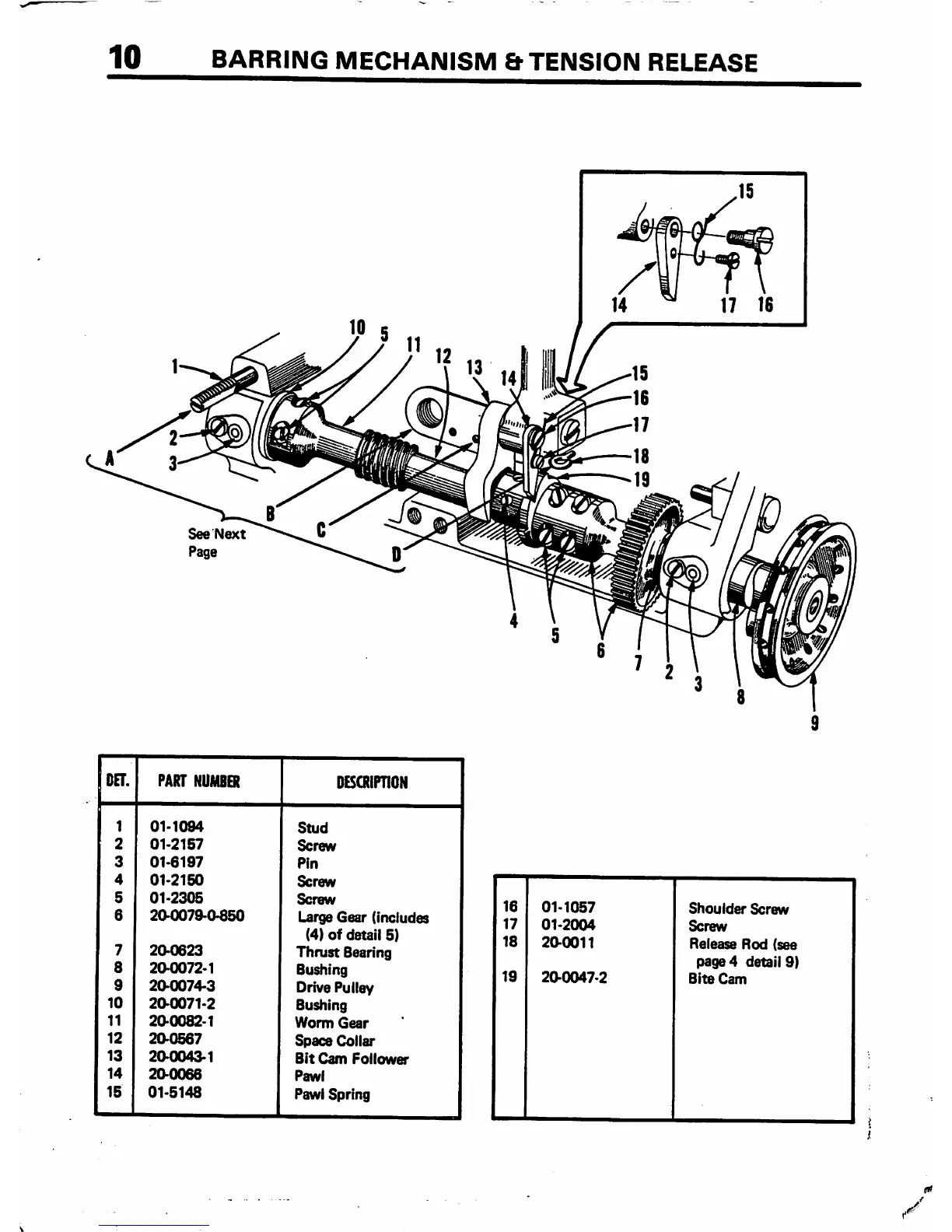

BARRING MECHANISM & TENSION RELEASE
See'Next
Page
OET.
PART NUMBER
DESCRIPTION
1
01-1094
Stud
2
01-2157
Screw
3 01-6197
Pin
4
01-2150
Screw
5
01-2305
Screw
6
2a0079-0-850
Large Gear (includes
(4) of detail 5)
7
20-0623
Thrust Bearing
8
20-0072-1
Bushing
9
20-0074-3
Drive Pulley
10
20-0071-2
Bushing
11
20-0082-1
Worm Gear
12
20-0567
Space Collar
13
20-0043-1
Bit Cam Follower
14
20-0066
Pawl
15
01-5148
Pawl Spring
17 16
16
01-1057
Shoulder Screw
17
01-2004
Screw
18
20-0011
Release Rod (see
page 4 detail 9)
19
20-0047-2
Bite Cam
