Reece Series S2 - Page 18

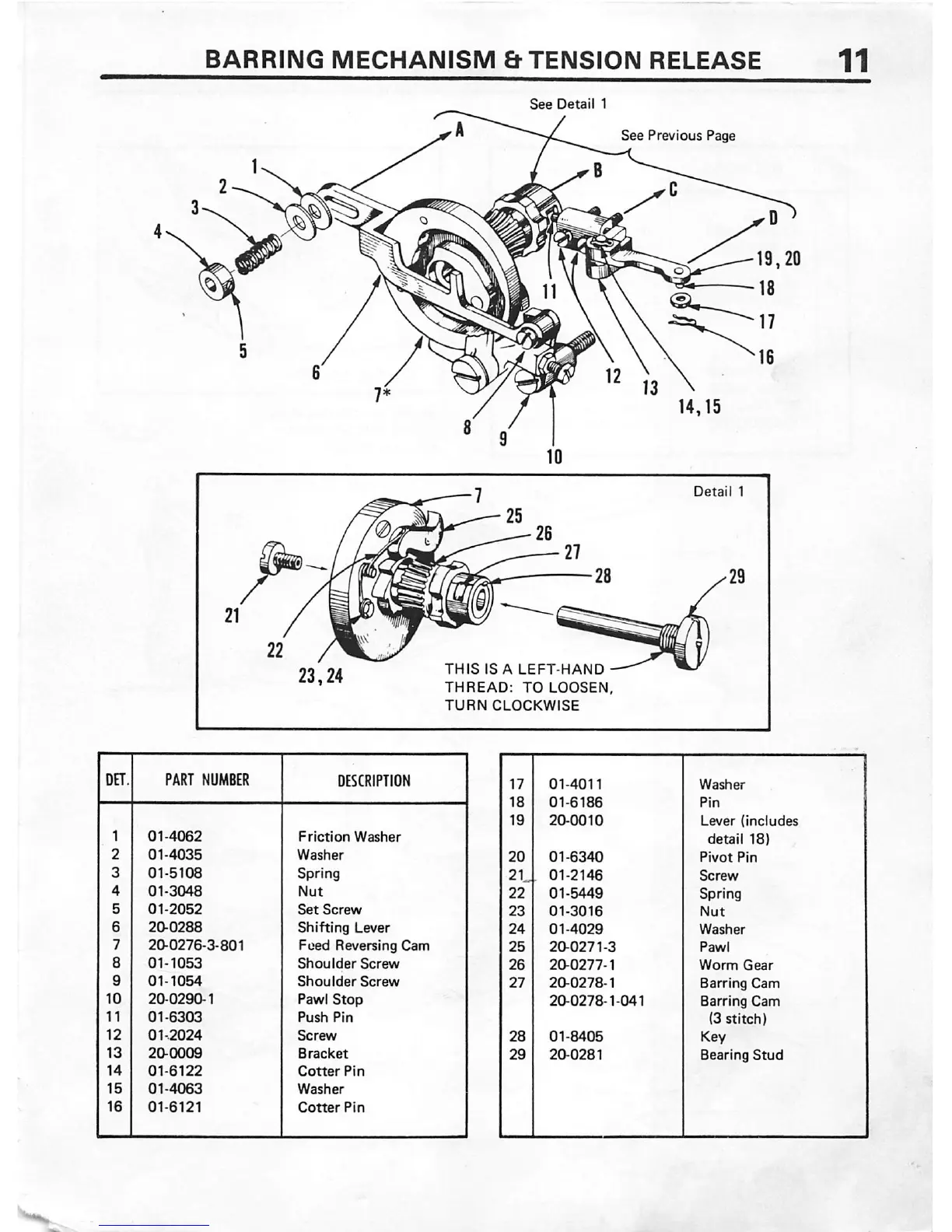

BARRING MECHANISM & TENSION RELEASE
DET. PART NUMBER
01-4062
01-4035
01-5108
01-3048
01-2052
20-0288
20-0276-3-801
01-1053
01-1054
20-0290-1
01-6303
01-2024
20-0009
01-6122
01-4063
01-6121
DESCRIPTION
Friction Washer
Washer
Spring
Nut
Set Screw
Shifting Lever
Feed Reversing Cam
Shoulder Screw
Shoulder Screw
Pawl Stop
Push Pin
Screw
Bracket
Cotter Pin
Washer
Cotter Pin
See Detail 1
See Previous Page
—7
THIS IS A LEFT-HAND -
THREAD: TO LOOSEN,
TURN CLOCKWISE
17 01-4011
18 01-6186
19 20-0010
01-6340
01-2146
22 01-5449
23 01-3016
24 01-4029
25 20-0271-3
26 20-0277-1
27 20-0278-1
20-0278-1-041
01-8405
20-0281
Detail 1
Washer
Pin
Lever (includes
detail 18)
Pivot Pin
Screw
Spring
Nut
Washer
Pawl
Worm Gear
Barring Cam
Barring Cam
(3 stitch)
Key
Bearing Stud
