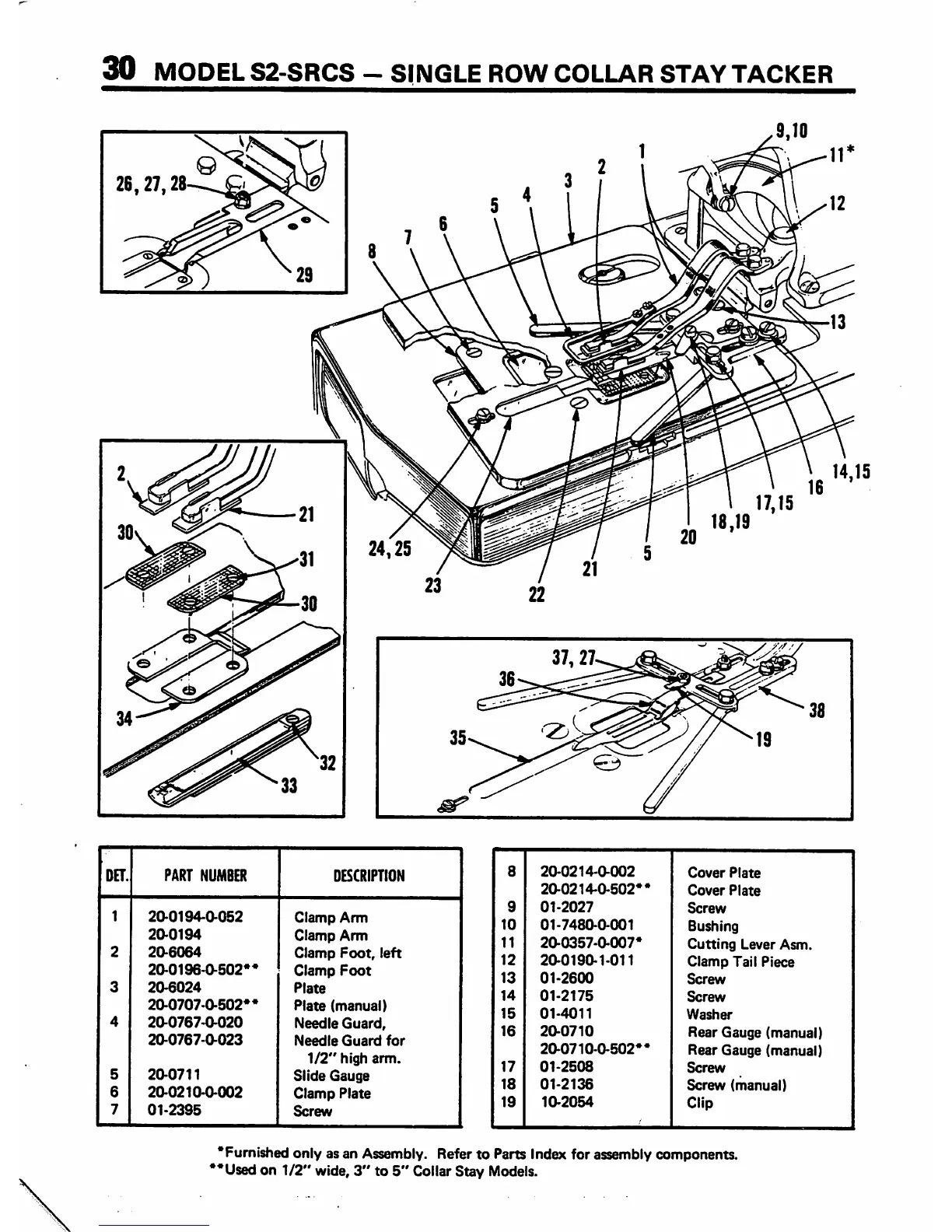

30 MODEL S2-SRCS - SINGLE ROW COLLAR STAY TACKER
0
26,27,28
DET. PART NUMBER DESCRIPTION
1
20-0194-0-052
Clamp Arm
2a0194
Clamp Arm
2 20-6064
Clamp Foot, left
20-0196-0-502*'
Clamp Foot
3 20-6024
Plate
20-0707-0-502**
Plate (manual)
4
20-0767-(H)20
Needle Guard,
20-0767-0-023
Needle Guard for
1/2" high arm.
5
20-0711
Slide Gauge
6
20-0210-0-002
Clamp Plate
7
01-2395
Screw
8 20-0214-0-002
Cover Plate
20-0214-0-502*'
Cover Plate
9
01-2027
Screw
10 01-7480-0-001
Bushing
11
2a0357-0-007*
Cutting Lever Asm.
12 20-0190-1-011
Clamp Tail Piece
13 01-2600
Screw
14
01-2175
Screw
15 01-4011
Washer
16
20-0710
Rear Gauge (manual)
20-0710.0-502*'
Rear Gauge (manual)
17 01-2508
Screw
18 01-2136
Screw (manual)
19 10-2054
Clip
*Fumished only as an Assembly. Refer to Parts Index for assembly components.
^*Used on 1/2" wide, 3" to 5" CollarStay Models.
