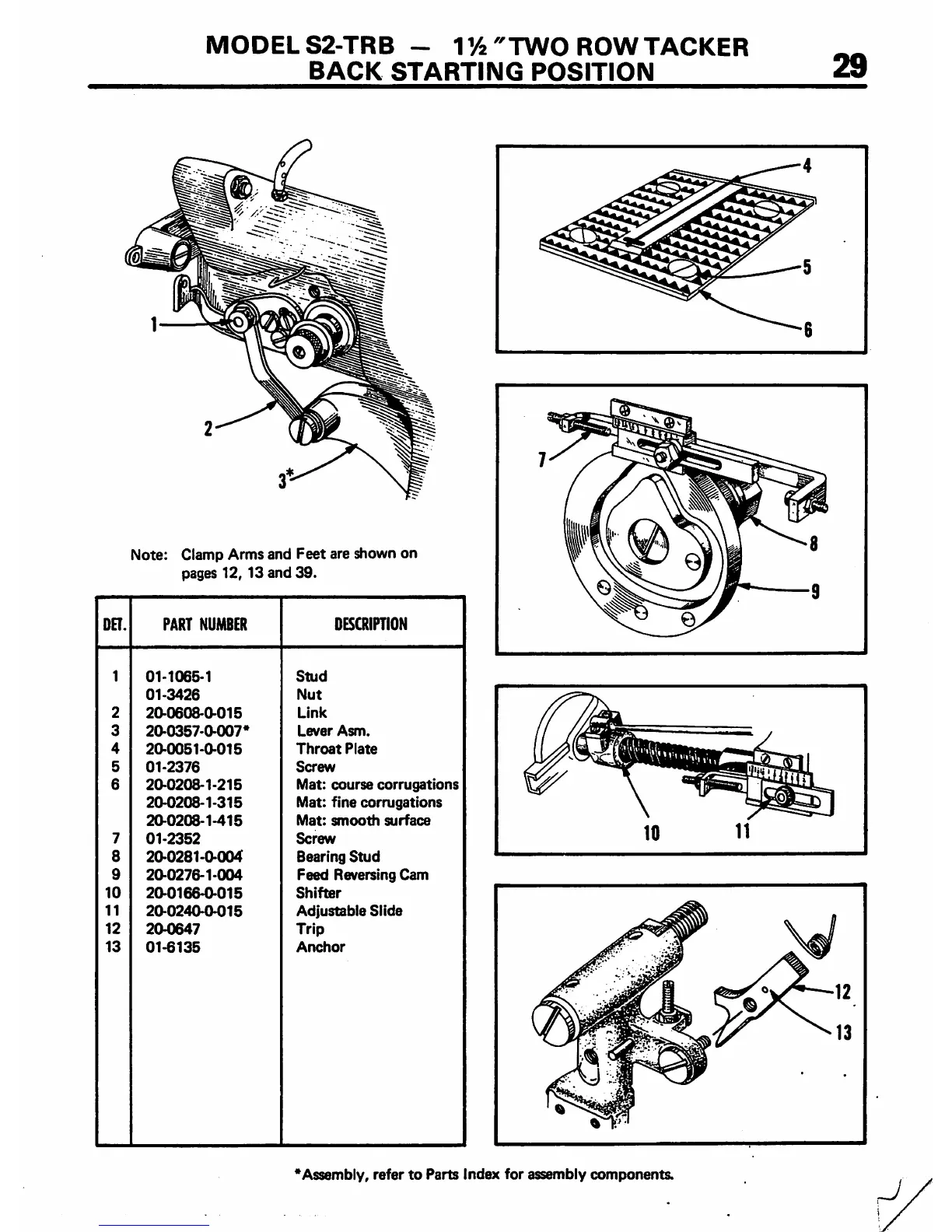

MODEL S2-TRB - IVa "TWO ROWTACKER
BACK STARTING POSITION
Note: Clamp Arms and Feet are shown on
pages 12,13 and 39.
DET. PART NUMBER
DESCRIPTION
1
0M065-1
Stud
01-3426
Nut
2
20-0608-0-015
Link
3
20-0357-0.007'
Lever Asm.
4
20-0051-0-015
Throat Plate
5
01-2376
Screw
6
20-0208-1-215
Mat: course corrugations
20-0208-1-315
Mat: fine corrugations
20-0208-1-415
Mat: smooth surface
7
01-2352
Screw
8
20-0281-0-004
Bearing Stud
9
20-0276-1-004
Feed Reversing Cam
10
20-01664)-015
Shifter
11
20-0240-0015
Adjustable Slide
12
200647
Trip
13
010135
Anchor
'Assembly, refer to Parts Index for assembly components.
