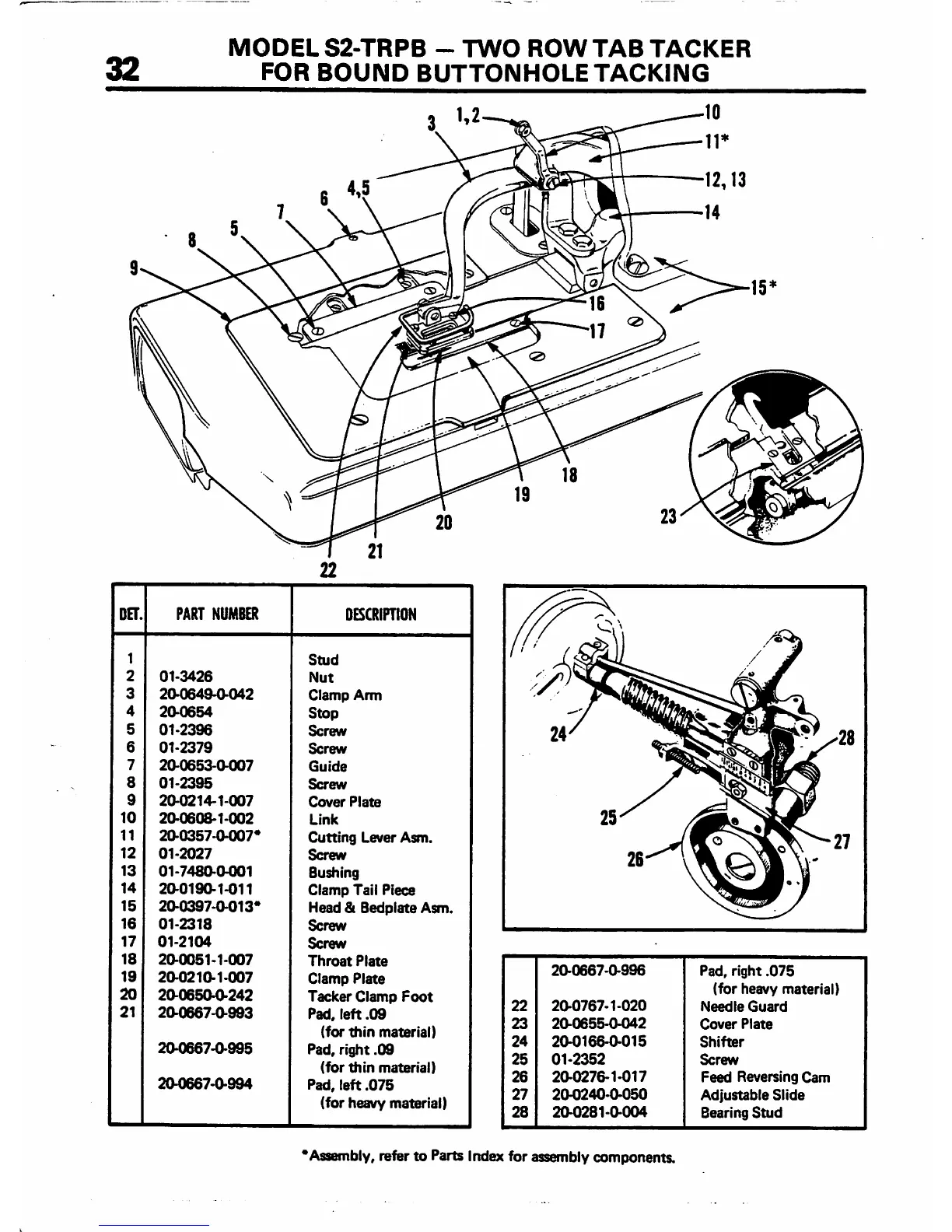

MODEL S2-TRPB - TWO ROWTABTACKER
FOR BOUND BUTTONHOLE TACKING
DET. PART NUMBER
DESCRIPTION
1
Stud
2
01-3426
Nut
3
20-0649-0-042
Clamp Arm
4
20-0654
Stop
5
01-2396
Screw
6
01-2379
Screw
7
20-0653-0-007
Guide
8
01-2395
Screw
9
20-0214-1-007
Cover Plate
10
20-0608-1-002
Link
11
20-0357-04X)7*
Cutting Lever Asm.
12
01-2027
Screw
13
01-7480-04)01
Bushing
14
2a0190-1-011
Clamp Tall Piece
15
20-0397-04)13*
Head & Bedplate Asm.
16
01-2318
Screw
17
01-2104
Screw
18
20-0051-1-007
Throat Plate
19
204)210-1-007
Clamp Plate
20
20-0650-0-242
Tacker Clamp Foot
21
20-06674)-993
Pad, left .09
(for thin material)
204)6674)-995
Pad, right .09
(for thin material)
204)667-0-994
Pad, left .075
(for heavy material)
20-0667-0-996
Pad, right .075
(for heavy material)
22
20-0767-1-020
Needle Guard
23
20-0655-04)42
Cover Plate
24
204)166-04)15
Shifter
25
01-2352
Screw
26
20-0276-1-017
Feed Reversing Cam
27
204)240-0-050
Adjustable Slide
28
204)281-0-004
Bearing Stud
