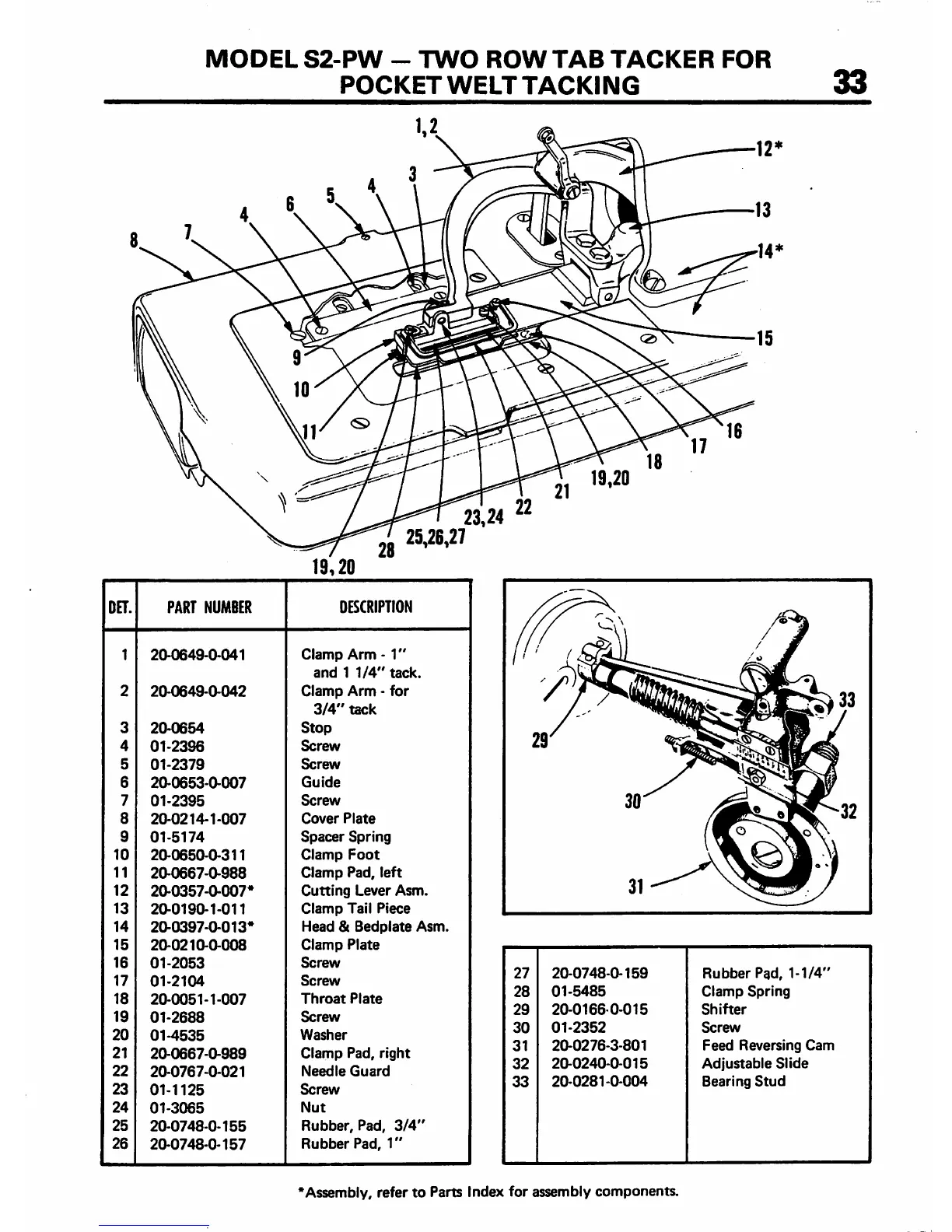

Reece Series S2 - Page 39

MODEL S2-PW - TWO ROW TAB TACKER FOR
POCKETWELTTACKING 33
19,20
DET.
PART NUMBER
DESCRIPTION
1 20-0649-0041
Clamp Arm -1"
and 1 1/4" tack.
2
20-0649-0-042
Clamp Arm - for
3/4" tack
3
20-0654
Stop
4
01-2396
Screw
5
01-2379
Screw
6
20-0653-0-007
Guide
7
01-2395
Screw
8
20-0214-1-007
Cover Plate
9
01-5174
Spacer Spring
10
20-0650-0-311
Clamp Foot
11
20-0667-0-988
Clamp Pad, left
12
20-0357-0-007*
Cutting Lever Asm.
13
2a0190-1-011
Clamp Tail Piece
14
20-0397-0-013*
Head & Bedplate Asm.
15
20-0210-0-008
Clamp Plate
16
01-2053
Screw
17
01-2104
Screw
18
20-0051-1-007
Throat Plate
19
01-2688
Screw
20
01-4535
Washer
21
20-0667-0-989
Clamp Pad, right
22
20-0767-0-021
Needle Guard
23
01-1125
Screw
24
01-3065
Nut
25
20-0748-0-155
Rubber, Pad, 3/4"
26
20-0748-0-157
Rubber Pad, 1"
iL
27 20-0748-0-159 Rubber Pad, 1-1/4"
28
01-5485
Clamp Spring
29 20-01660-015
Shifter
30
01-2352
Screw
31
20-0276-3-801
Feed Reversing Cam
32
20-0240-0-015
Adjustable Slide
33
20-0281-0-004
Bearing Stud
