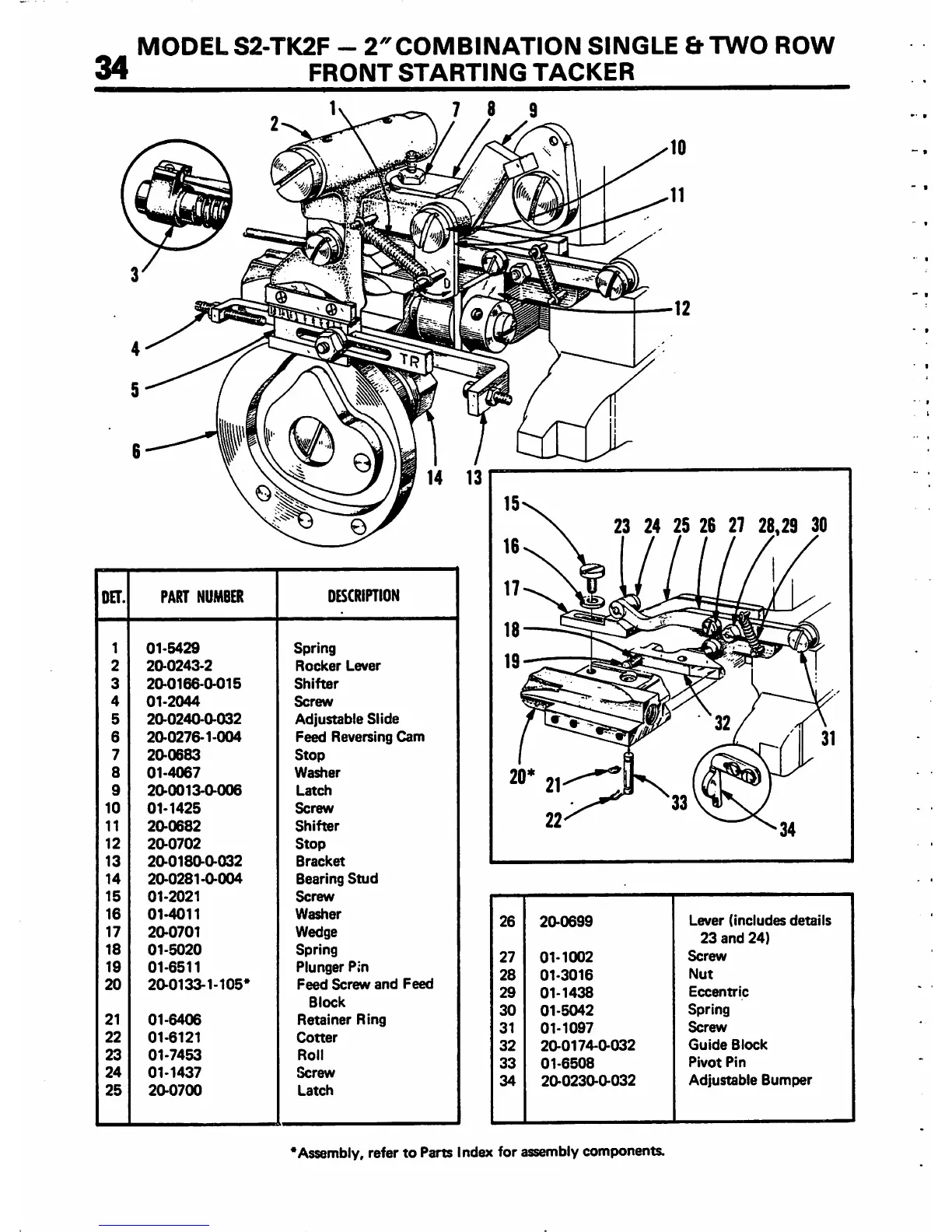

MODEL S2-TK2F - 2" COMBINATION SINGLE & TWO ROW
34 FRONT STARTING TACKER
©
OET.
PART NUMBER
DESCRIPTION
1 01-5429
Spring
2
2a0243-2 Rocker Lever
3
20-0166-0-015 Shifter
4
01-2044 Screw
5
20-0240-0-032 Adjustable Slide
6
20-0276-1-004
Feed Reversing Cam
7
20-0683
Stop
8
01-4067
Washer
9 20-0013-0-006 Latch
10
01-1425
Screw
11 2a0682
Shifter
12 20-0702 Stop
13
20-0180-0-032 Bracket
14
20-0281-0-004
Bearing Stud
15
01-2021
Screw
16
01-4011
Washer
17 20-0701
Wedge
18
01-5020
Spring
19 01-6511
Plunger Pin
20 20-0133-1-105*
Feed Screw and Feed
Block
21
01-6406
Retainer Ring
22
01-6121
Cotter
23 01-7453 Roll
24
01-1437 Screw
25 20-0700
Latch
26
20-0699
Lever (includes details
23 and 24)
27
01-1002
Screw
28 01-3016
Nut
29 01-1438
Eccentric
30 01-5042
Spring
31
01-1097
Screw
32
20-0174-0-032
Guide Block
33
01-6508
Pivot Pin
34
20-0230-0-032
Adjustable Bumper
*Assembly, refer to Parts Index for assembly components.
