Reece Series S2 - Page 41

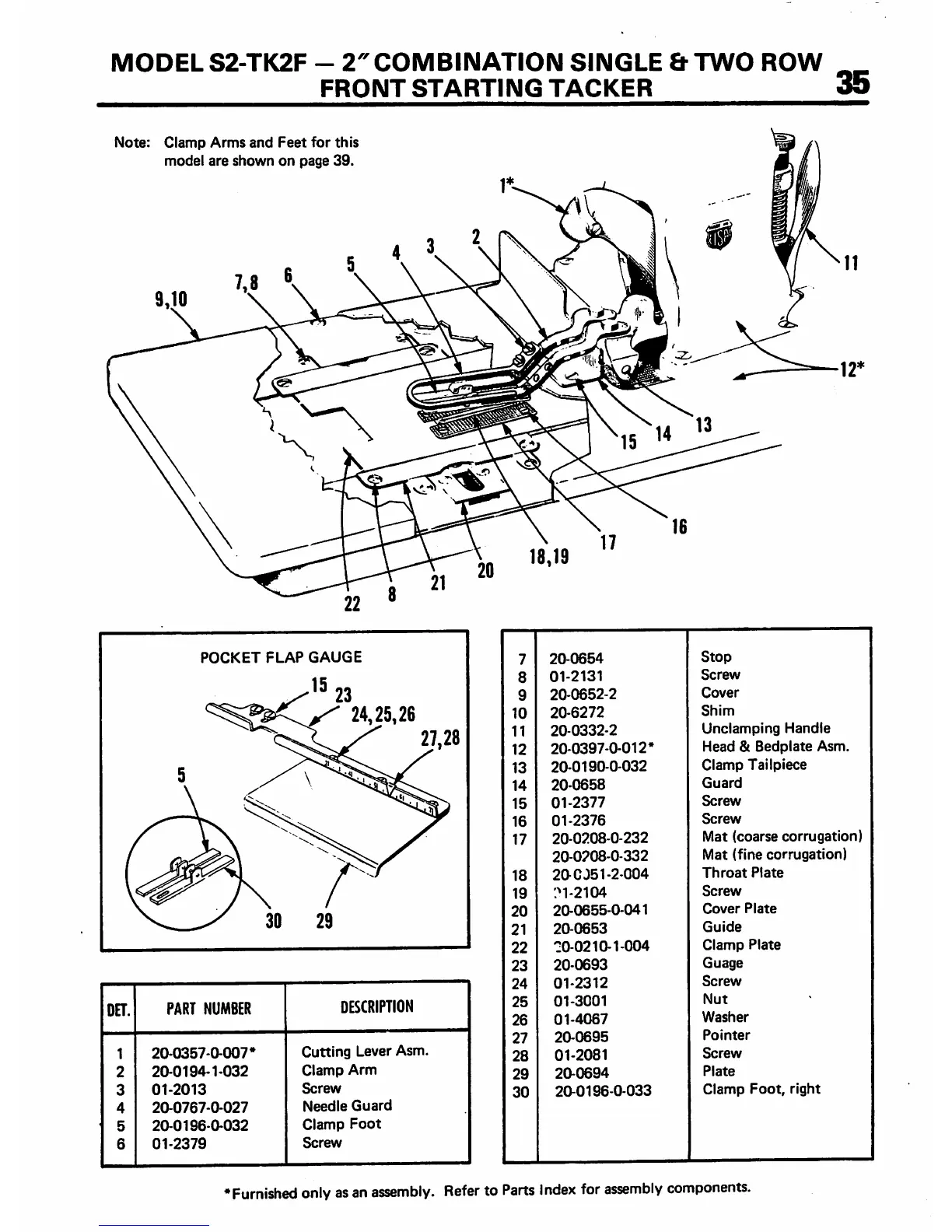

MODEL S2-TK2F - 2" COMBINATION SINGLE & TWO ROW
FRONT STARTINGTACKER 35
Note: Clamp Arms and Feet for this
model are shown on page 39.
POCKET FLAP GAUGE
15
^ -23
^ 24,25,26
30 29
DET.
PART NUMBER
DESCRIPTION
1
20-0357-0-007*
Cutting Lever Asm.
2
20-0194-1-032
Clamp Arm
3
01-2013
Screw
4
20-0767-0-027
Needle Guard
5
20-0196-0-032
Clamp Foot
6
01-2379
Screw
7
20-0654
Stop
8
01-2131
Screw
9
20-0652-2
Cover
10
20-6272
Shim
11
20-0332-2
Unclamping Handle
12
20-0397-0-012*
Head & Bedplate Asm.
13
20-0190-0-032
Clamp Tailpiece
14
20-0658
Guard
15
01-2377
Screw
16
01-2376
Screw
17
20-0208-0-232
Mat (coarse corrugation)
20-0208-0-332
Mat (fine corrugation)
18
2aCJ51-2-G04
Throat Plate
19
21-2104
Screw
20
20-0655-0-041
Cover Plate
21
20-0653
Guide
22
20-0210-1-004
Clamp Plate
23
20-0693
Guage
24
01-2312
Screw
25
01-3001
Nut
26
01-4067
Washer
27
20-0695
Pointer
28
01-2081
Screw
29
20-0694
Plate
30
20-0196-0-033
Clamp Foot, right
♦Furnished onlyasan assembly. Refer to Parts Index for assembly components.
