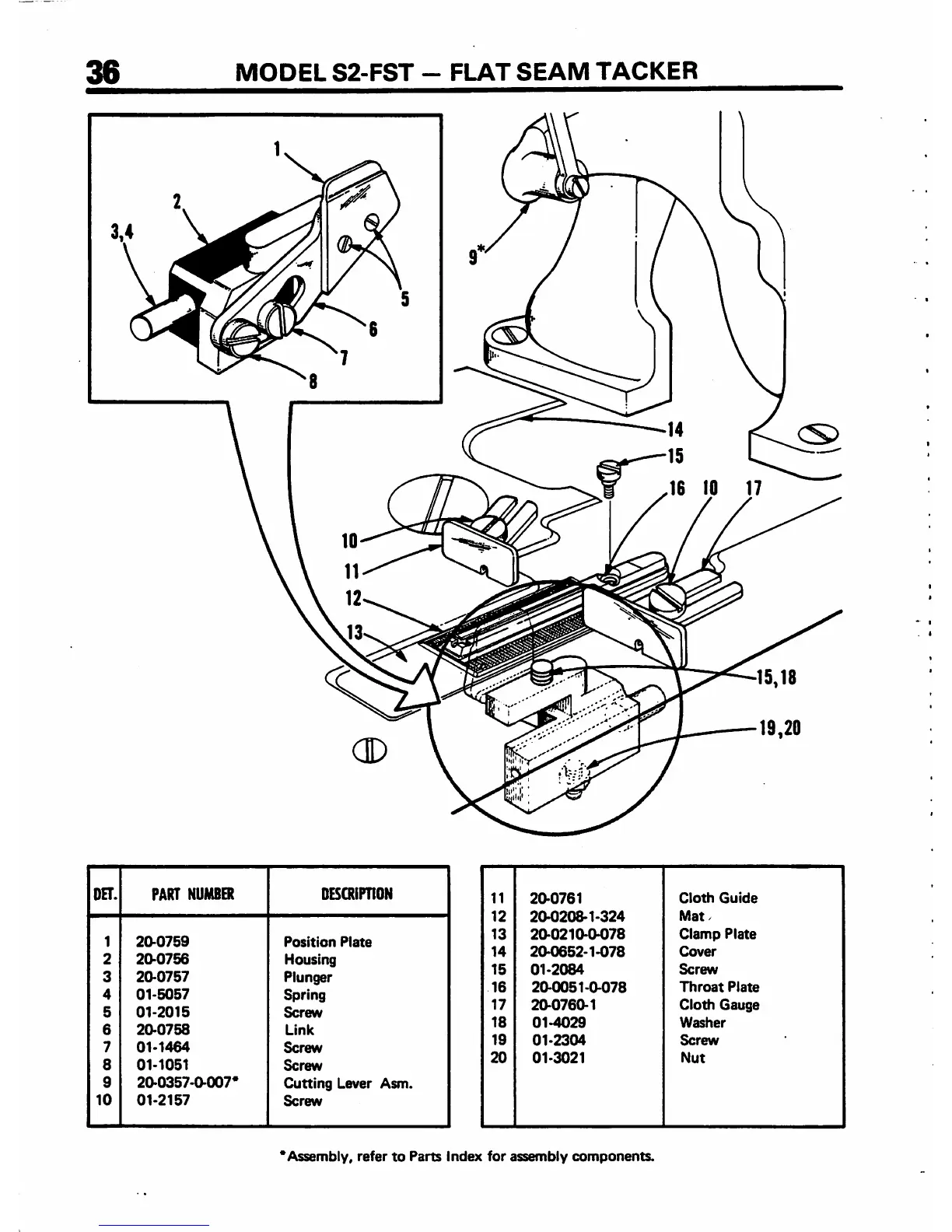

MODEL S2-FST - FLAT SEAM TACKER
DET. PART NUMBER DESCRiPTIGN
1
20-0759
Position Plate
2 20-0756
Housing
3
20-0757
Plunger
4
01-5057
Spring
5
01-2015
Screw
6 20-0758
Link
7 01-1464 Screw
8 01-1051
Screw
9 20-0357-0-007*
Cutting Lever Asm.
10
01-2157
Screw
6 10 7
11
20-0761
Cloth Guide
12 20-0208-1-324
Mat/
13
20-0210-04)78 Clamp Plate
14
20-0652-1-078
Cover
15
01-2084 Screw
16
20-0051-0-078
Throat Plate
17
20-0760-1
Cloth Gauge
18
01-4029
Washer
19
01-2304 Screw
20
01-3021
Nut
'Assembly, refer to Parts Index for assembly components.
