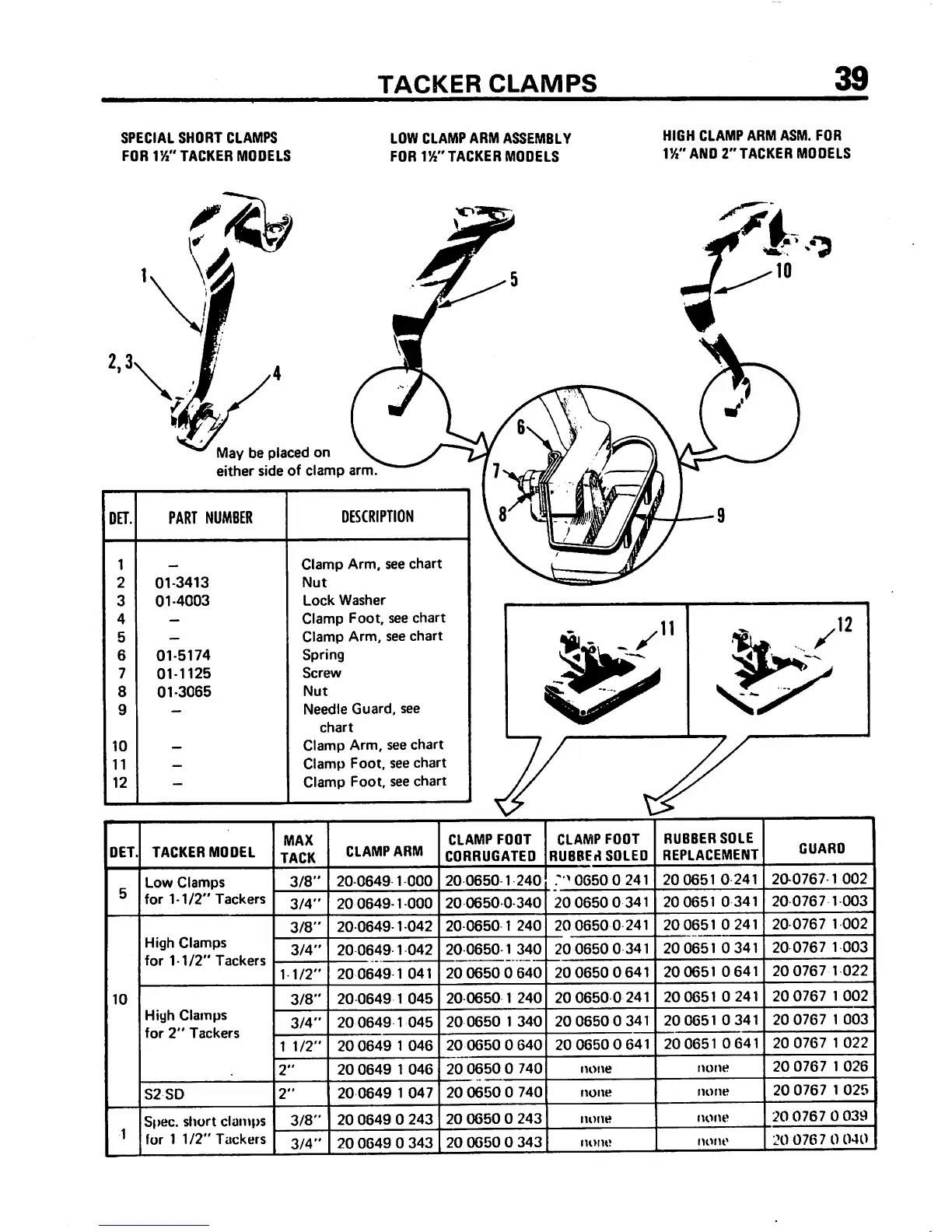

TACKER CLAMPS
39
SPECIAL SHORT CLAMPS
FOR r/2" TACKER MODELS
LOW CLAMP ARM ASSEMBLY
FOR VA" TACKER MODELS
HIGH CLAMP ARM ASM. FOR
IVt" AND 2"TACKER MODELS
May be placed on
either side of clamp arm.
DET. PART NUMBER
DESCRIPTION
1
Clamp Arm, see chart
2 01-3413
Nut
3
01-4003
Lock Washer
4
—
Clamp Foot, see chart
5
—
Clamp Arm, see chart
6
01-5174
Spring
7 01-1125
Screw
8 01-3065
Nut
9
—
Needle Guard, see
chart
10
—
Clamp Arm, see chart
11
—
Clamp Foot, see chart
12
—
Clamp Foot, see chart
1
\ \
1 \
f ^
' m V Tiw—.V 1
11/ M MJr /
a y
-—9
%
w ^ .
OET. TACKER MODEL
MAX
TACK
CLAMP ARM
CLAMP FOOT
CORRUGATED
CLAMP FOOT
RUBBE1I SOLED
RUBBER SOLE
REPLACEMENT
GUARD
5
Low Clamps
for 1-1/2" Tackers
3/8"
20 0649 1 000
20 0650 1 240
.^•^0650 0 241
20 0651 0 241
20-0767 1 002
3/4"
20 0649-1 000
20 0650 0 340 20 0650 0 341
20 0651 0 341
20 0767 1 003
10
High Clamps
for 1-1/2" Tackers
3/8"
20 0649-1-042
20-0650 1 240
20 0650 0 241
20 0651 0 241
20 0767 1 002
3/4"
20 0649 1 042
20 0650 1 340
20 0650 0 341
20 0651 0 341
20 0767 1 003
11/2"
20 0649 1 041
20 0650 0 640
20 0650 0 641
20 0651 0 641
20 0767 1 022
High Clamps
for 2" Tackers
3/8"
20 0649 1 045
20 0650 1 240
20 0650 0 241 20 0651 0 241
20 0767 1 002
3/4"
20 0649 1 045
20 0650 1 340 20 0650 0 341
20 0651 0 341
20 0767 1 003
1 1/2"
20 0649 1 046
20 0650 0 640
20 0650 0 641 20 0651 0 641
20 0767 1 022
2"
20 0649 1 046
20 0650 0 740
none
none
20 0767 1 026
S2SD
2"
20 0649 1 047
20 0650 0 740
tione
none
20 0767 1 025
1
Spec, short clamps
for 1 1/2" Tackers
3/8"
20 0649 0 243
20 0650 0 243
none
none
20 0767 0 039
3/4" 20 0649 0 343
20 0650 0 343
none
notie
20 0767 0 040
