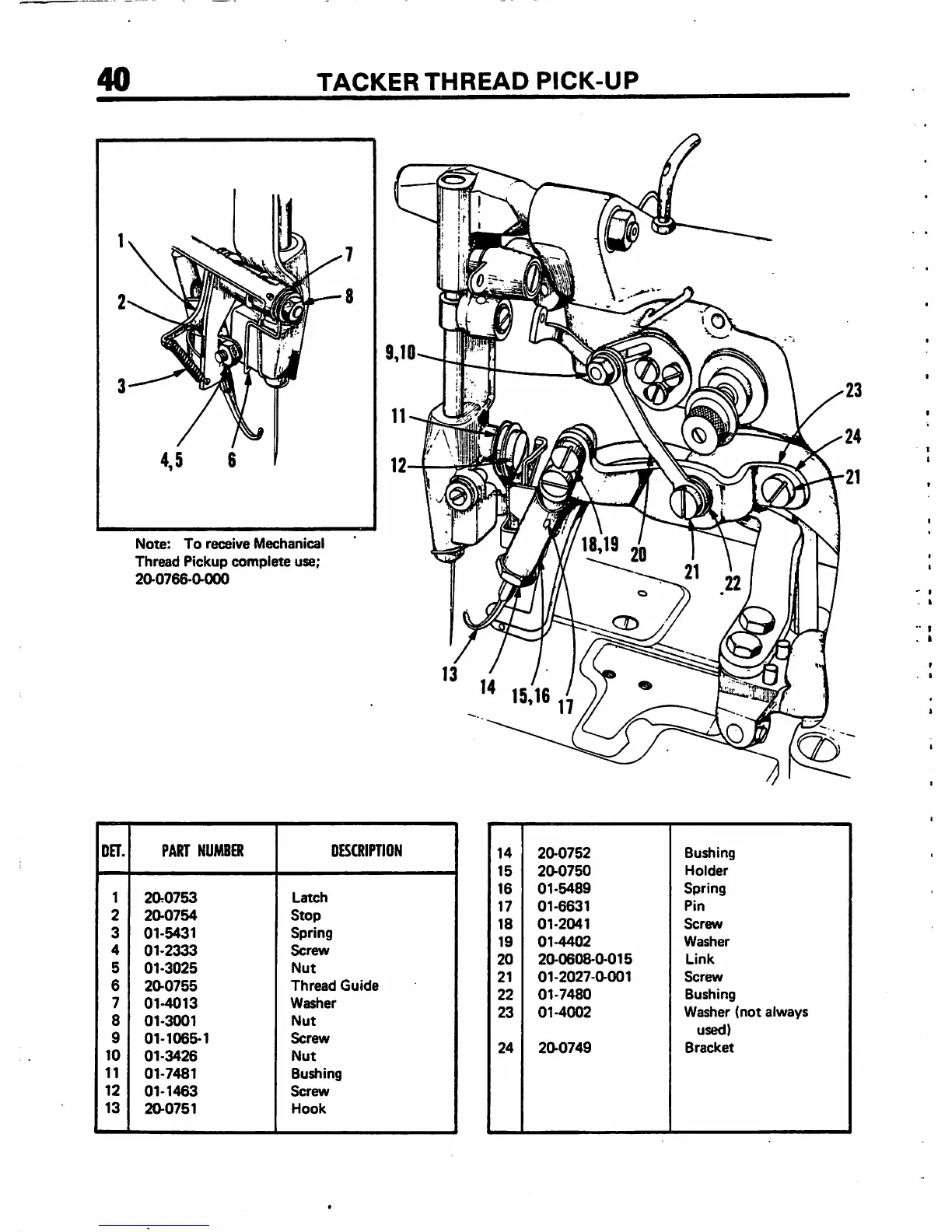

TACKERTHREAD

PICK-UP

Note:

To

receive

Mechanical

Thread

Pickup

complete

use;

20-0766-0-000

DET.

PART

NUMBER

OESCRIPTION

1

20t0753

Latch

2

20-0754

Stop

3

01-5431

Spring

4

01-2333

Screw

5

01-3025

Nut

6

20-0755

Thread

Guide

7

01-4013

Washer

8

01-3001

Nut

9

01-1065-1

Screw

10

01-3426

Nut

11

01-7481

Bushing

12

01-1463

Screw

13

20-0751

Hook

14

20-0752

Bushing

15

20-0750

Holder

16

01-5489

Spring

17

01-6631

Pin

18

01-2041

Screw

19

01-4402

Washer

20

20-0608-0-015

Link

21

01-2027-a001

Screw

22

01-7480

Bushing

23

01-4002

Washer

(not

always

used)

24

20-0749

Bracket
