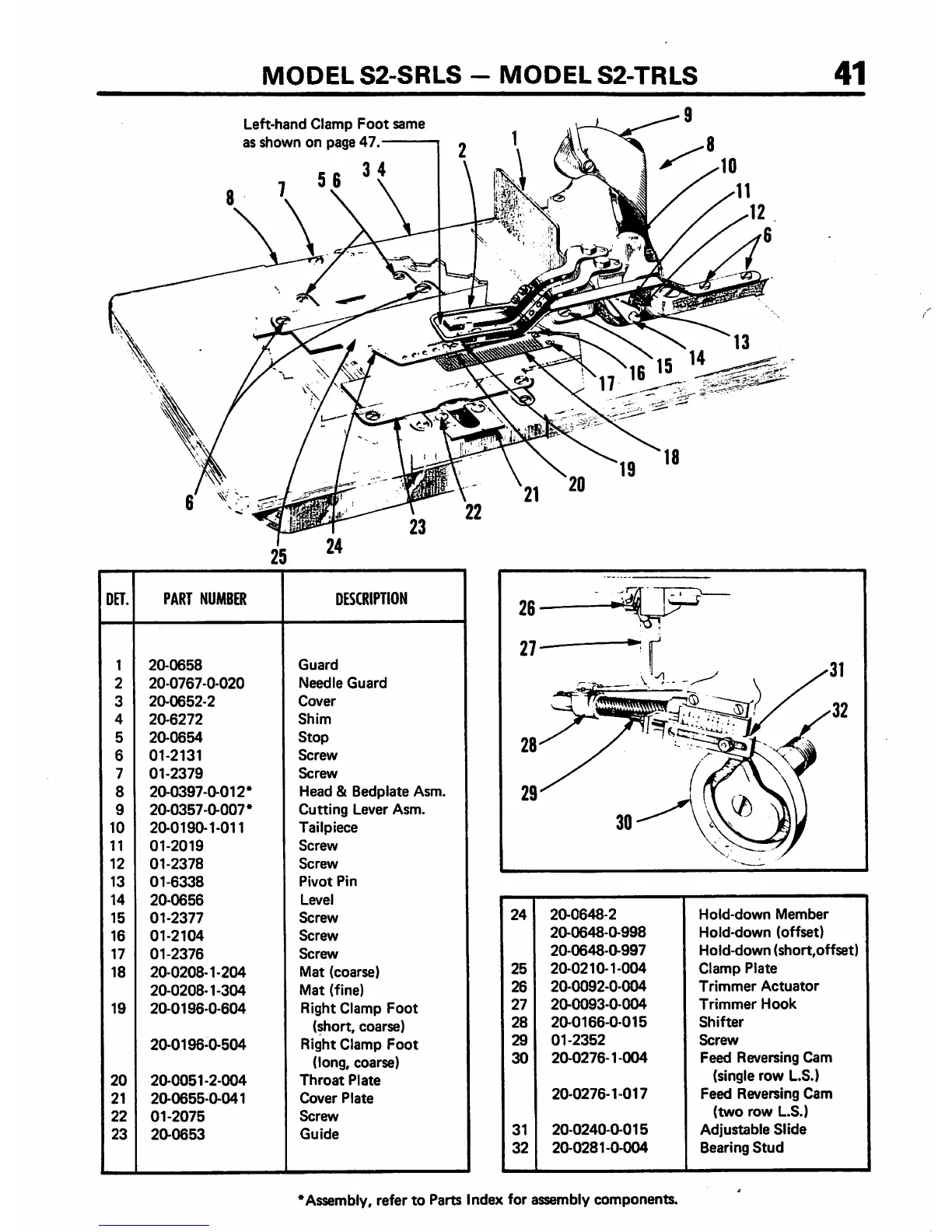

MODEL S2-SRLS - MODEL S2-TRLS
41
Left-hand Clamp Foot same
as shown on page 47.
DET. PART NUMBER
DESCRIPTION
1 2a0658
Guard
2
20-0767-0-020
Needle Guard
3
20-0652-2
Cover
4
2a6272
Shim
5
20-0654
Stop
6
01-2131
Screw
7 01-2379
Screw
8 20-0397-0-012*
Head & Bedplate Asm.
9 20-0357-0-007'
Cutting Lever Asm.
10 20-0190-1-011
Tailpiece
11 01-2019
Screw
12 01-2378
Screw
13 01-6338
Pivot Pin
14
20-0656
Level
15 01-2377
Screw
16
01-2104
Screw
17
01-2376
Screw
18 20-0208-1-204
Mat (coarse)
20-0208-1-304
Mat (fine)
19
20-0196-0-604 Right Clamp Foot
(short, coarse)
20-0196-0-504
Right Clamp Foot
(long, coarse)
20 20-0051-2-004
Throat Plate
21 20-0655-0-041
Cover Plate
22
01-2075
Screw
23 20-0653
Guide
24
20-0648-2 Hold-down Member
20-0648-0-998 Hold-down (offset)
20-0648-0-997 Hold-down (short,offset)
25
20-0210-1-004
Clamp Plate
26
20-0092-0-004 Trimmer Actuator
27
20-0093-0-004
Trimmer Hook
28
20-0166-0-015
Shifter
29
01-2352 Screw
30
20-0276-1-004 Feed Reversing Cam
(single row L.S.)
20-0276-1-017 Feed Reversing Cam
(two row L.S.)
31
20-0240-0-015 Adjustable Slide
32
20-0281-0-004 Bearing Stud
^Assembly, refer to Parts Index for assembly components.
