42

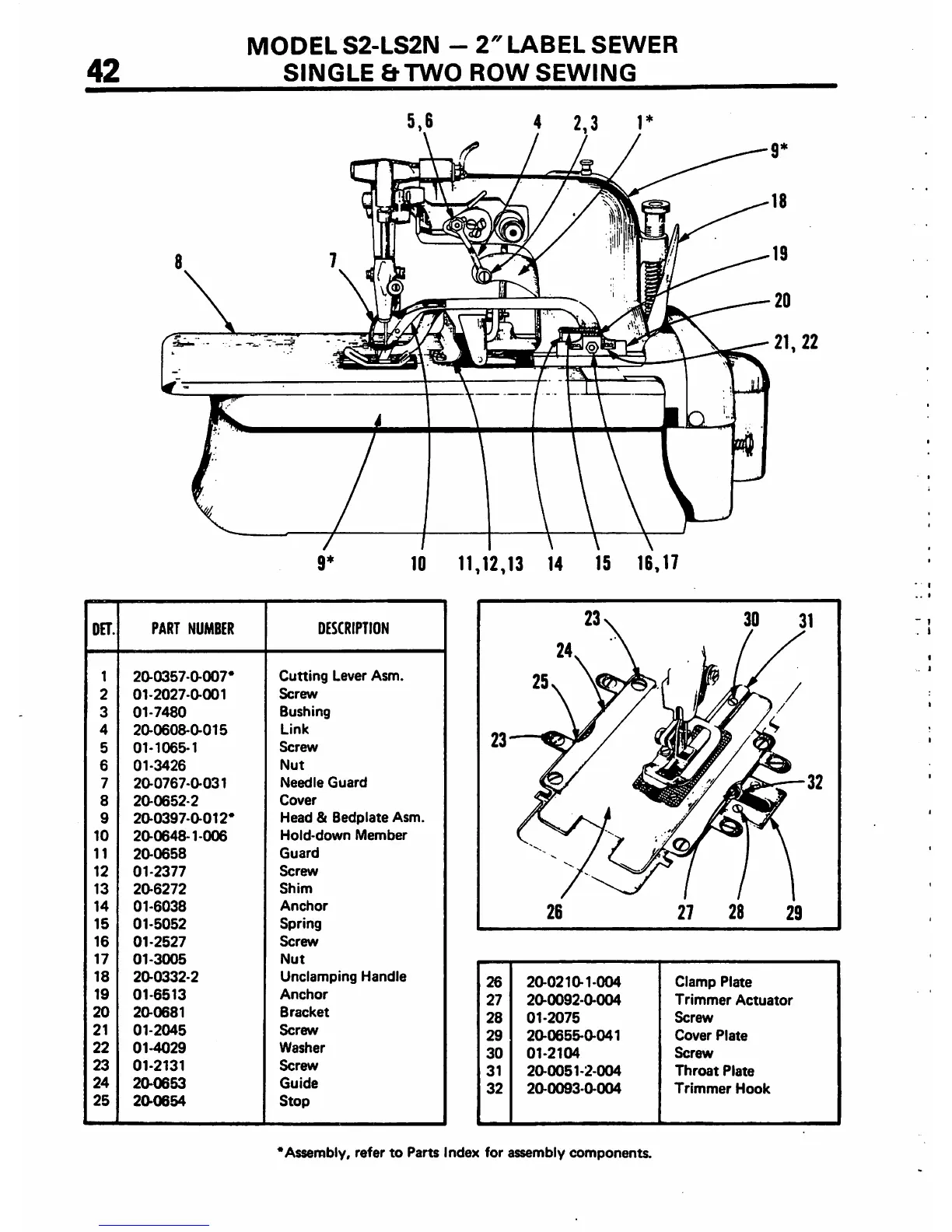

MODEL S2-LS2N - 2" LABEL SEWER
SINGLE &TWO ROW SEWING
DET.
PART NUMBER
DESCRIPTION
1
20-0357-0-007'
Cutting Lever Asm.
2 01-2027-0-001
Screw
3
01-7480
Bushing
4
20-0608-0-015
Link
5 01-1065-1
Screw
6 01-3426
Nut
7
20-0767-0-031
Needle Guard
8
2a0652-2
Cover
9 20-0397-0-012*
Head & Bedplate Asm.
10
20-0648-1-006
Hold-down Member
11 20-0658
Guard
12 01-2377
Screw
13 20-6272
Shim
14 01-6038
Anchor
15
01-5052
Spring
16 01-2527
Screw
17
01-3005
Nut
18
20-0332-2
Unclamping Handle
19
01-6513
Anchor
20
20-0681
Bracket
21
01-2045
Screw
22
01-4029
Washer
23
01-2131
Screw
24
20-0653
Guide
25 20-0654 Stop
11,12,13 14 IS 16,17
30 31
27 28
26
20-0210-1-004
Clamp Plate
27 20-0092-0-004
Trimmer Actuator
28 01-2075
Screw
29
20-0655-0-041
Cover Plate
30
01-2104 Screw
31
20-0051-2-004
Throat Plate
32 20-0093-0-004 Trimmer Hook
*Assembly, refer to Parts Index for assembly components.
