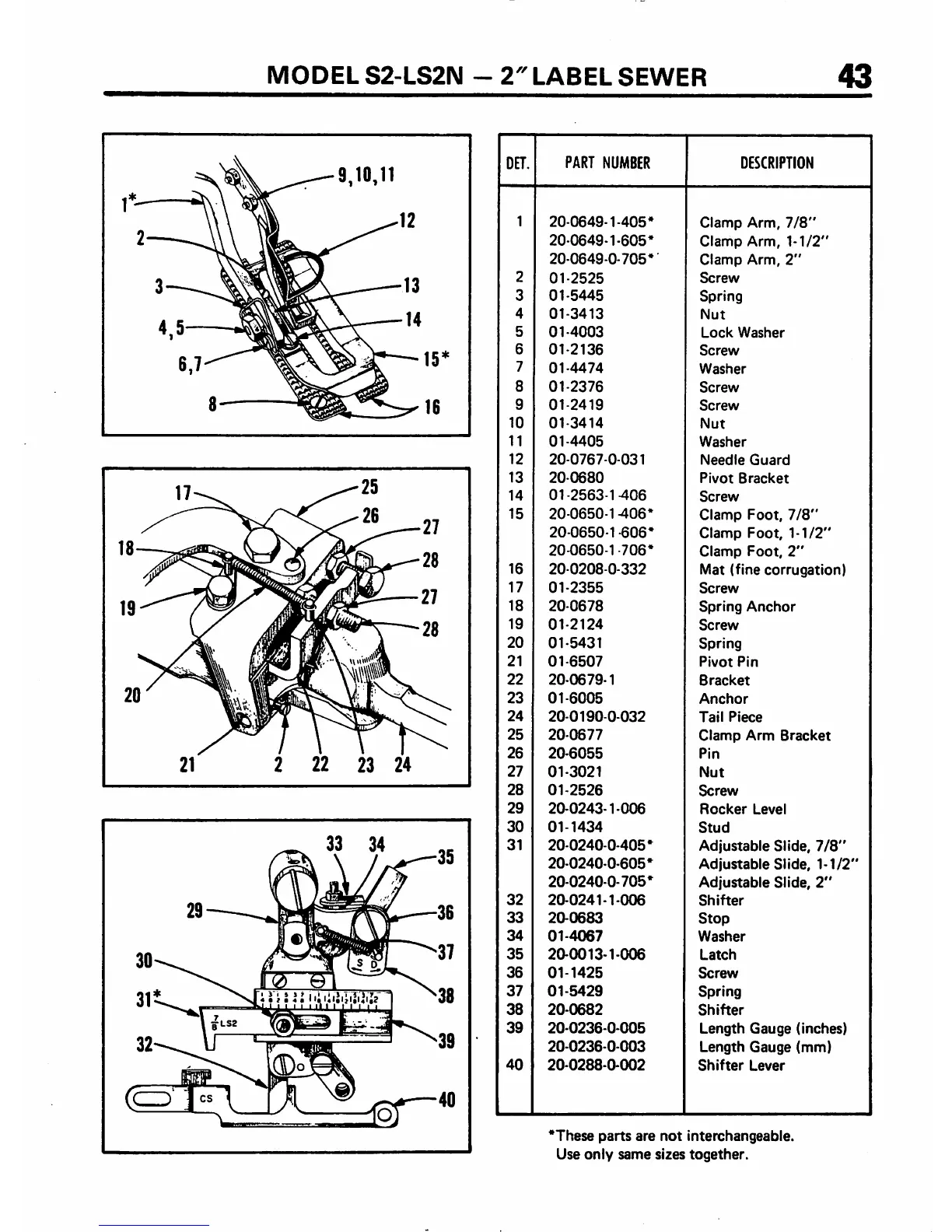

MODEL S2-LS2N - 2" LABEL SEWER
43
9,10,11
2 22 23 24
33 34
<9
(D
GET.
PART NUMBER
DESCRIPTION
1
20-0649-1-405•
Clamp Arm, 7/8"
20-0649-1-605'
Clamp Arm, 1-1/2"
20-0649-0-705'
Clamp Arm, 2"
2
01-2525
Screw
3 01-5445
Spring
4
01-3413
Nut
5
01-4003
Lock Washer
6
01-2136
Screw
7
01-4474
Washer
8
01-2376 Screw
9
01-2419
Screw
10
01-3414
Nut
11
01-4405
Washer
12
20-0767-0-031
Needle Guard
13 20-0680
Pivot Bracket
14 01-2563-1406
Screw
15
20-0650-1406'
Clamp Foot, 7/8"
20-0650-1 -606'
Clamp Foot, 1-1/2"
20-0650-1-706'
Clamp Foot, 2"
16 20-0208-0-332
Mat (fine corrugation)
17
01-2355
Screw
18
20-0678
Spring Anchor
19 01-2124
Screw
20
01-5431 Spring
21
01-6507
Pivot Pin
22
20-0679-1
Bracket
23
01-6005 Anchor
24
20-0190-0-032
Tail Piece
25
20-0677
Clamp Arm Bracket
26
20-6055 Pin
27
01-3021
Nut
28
01-2526 Screw
29
20-0243-1-006
Rocker Level
30 01-1434
Stud
31
20-0240-0-405'
Adjustable Slide, 7/8"
20-0240-0-605'
Adjustable Slide, 1-1/2"
20-0240-0-705'
Adjustable Slide, 2"
32
20-0241-1-006 Shifter
33
20-0683 Stop
34
01-4067 Washer
35
20-0013-1-006 Latch
36
01-1425 Screw
37 01-5429
Spring
38 20-0682
Shifter
39 20-0236-0-005 Length Gauge (inches)
20-0236-0-003 Length Gauge (mm)
40 20-0288-0-002
Shifter Lever
These parts are not interchangeable.
Use only same sizes together.
