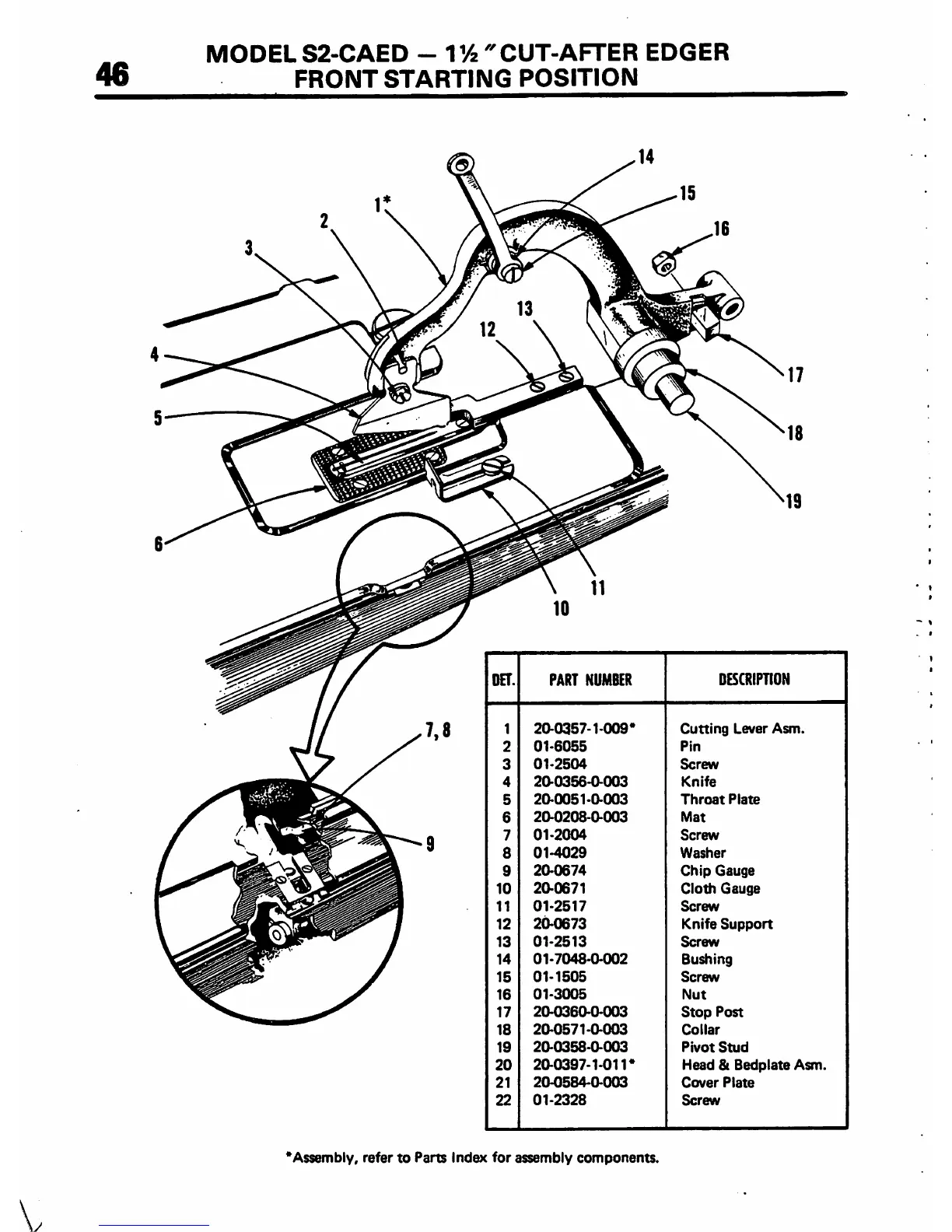

MODEL S2-CAED - 1 Vi "CUT-AFTER EDGER
FRONT STARTING POSITION
OET. PART NUMBER
DESCRIPTION
1 20-0357-1-009*
Cutting Lever Asm.
2 01-6055
Pin
3
01-2504 Screw
4 20-0356-0-003 Knife
5
20-0051-0-003 Throat Plate
6
20-0208-0-003 Mat
7
01-2004
Screw
8
01-4029
Washer
9
20-0674 Chip Gauge
10
20-0671 Cloth Gauge
11
01-2517 Screw
12 20-0673 Knife Support
13
01-2513
Screw
14
01-7048-0-002 Bushing
15
01-1505 Screw
16
01-3005
Nut
17 20-0360-0-003 Stop Post
18
20-0571-0-003
Collar
19
20-0358-0-003
Pivot Stud
20
20-0397-1-011* Head & Bedplate Asm.
21
204)584-0-003 Cover Plate
22
01-2328
Screw
'Assembly, refer to Parts Index for assembly components.
